Quoizel RBN1628MN Ribbons User Manual
Package contents, Warnings and cautions, Hardware contents

Package Contents
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended: (6) G9 Base frosted G9 Xenon bulb,40W Maximum
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
1of2

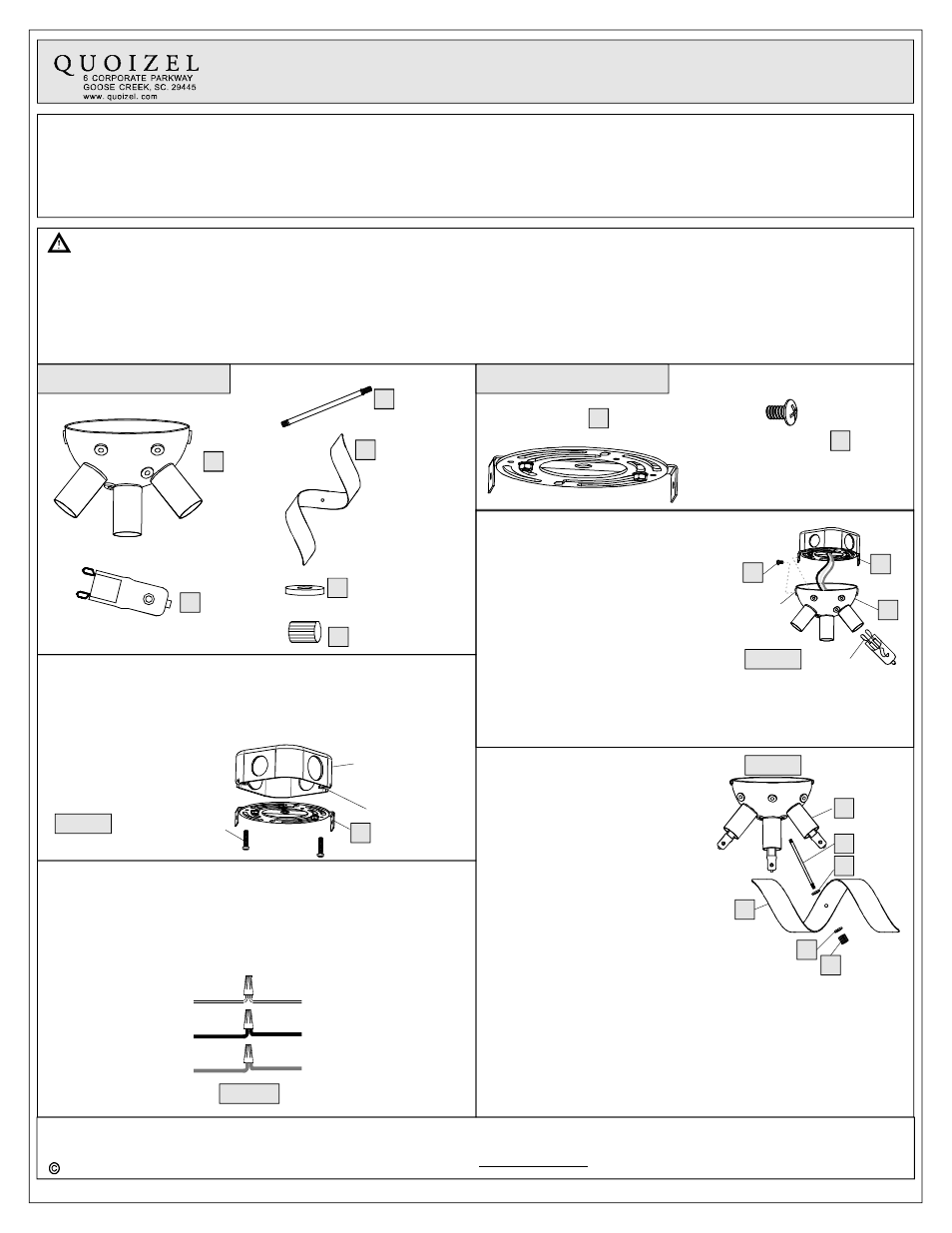

Assembly Instruction Sheet #IS-RBN1628
For Styles RBN1628MN and RBN1628SG
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2014 QuoizelInc.
June2014
A
A
A
C
D
E
E
F
Fixture
Body
x 1
Figure 1
STEP 1
Install Crossbar Assembly
-
A. Attach the Crossbar (AA) to Outlet Box and secure by threading
Outlet Box Screws (not supplied) into the Mounting Holes on the
Outlet Box. Tighten until snug.
B
C
D
E
F
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
Hardware Contents
AA
AA
BB
AA
Crossbar x 1
White wire
from supply
Ribbed side wire
from fixture
Black wire from
supply (or Red)
Smooth side wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
STEP 4
Install Trimming to
Fixture
-
A. Thread the Short Nipple end of
Stem (C) into the Fixture Body
(A), hand tighten until snug.
B. Place the Trimming (D) and
Rubber Washer (E) over the other
end of Stem (C). Secure by
threading Lock Ball (F) onto the
Stem (C). Hand tighten until snug.
Your fixture is now assembled and
ready to use.Enjoy!
Figure 3
Figure 4
STEP 3
Attach Ceiling Canopy to
Crossbar
IMPORTANT:
-
A. Line up the Hole on the Fixture Body
(A) and the Mounting Hole on the
Crossbar (AA), secure by thread
the Mounting Screw (BB) into the
Mounting Hole. Tighten until sung.
B. This fixture uses Frosted G9 Xenon
Bulbs. Maximum 40 watts.
C. Insert bulb and seat properly into
place.
Do not touch the bulb
with bare hands use a cloth or
glove.
Trimming
15
x
Bulb
6
x
Stem
15
x
Rubber Washer
30
x
Lock Ball
15
x
BB
Mounting Screw x 2
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Hole
Bulb
CAUTION FOR BULB REPLACING
A. When replace bulb, turn off power and allow lamp to cool. For
safety purpose, wear gloves and eye protection.
B. If bulb is scratched or cracked, DO NOT use the lamp to avoid
breakage during use or installation.
C. Use only in fixtures rated for lamps wattage and voltage.
D. Lamp operate under high pressure generating intense heat.
Prevent contact with liquid and combustible materials.
