Assembly Instruction Sheet #IS-QF1214SPN
For Style QF1214SPN
Figure 6
September2011
Socket
Bulb

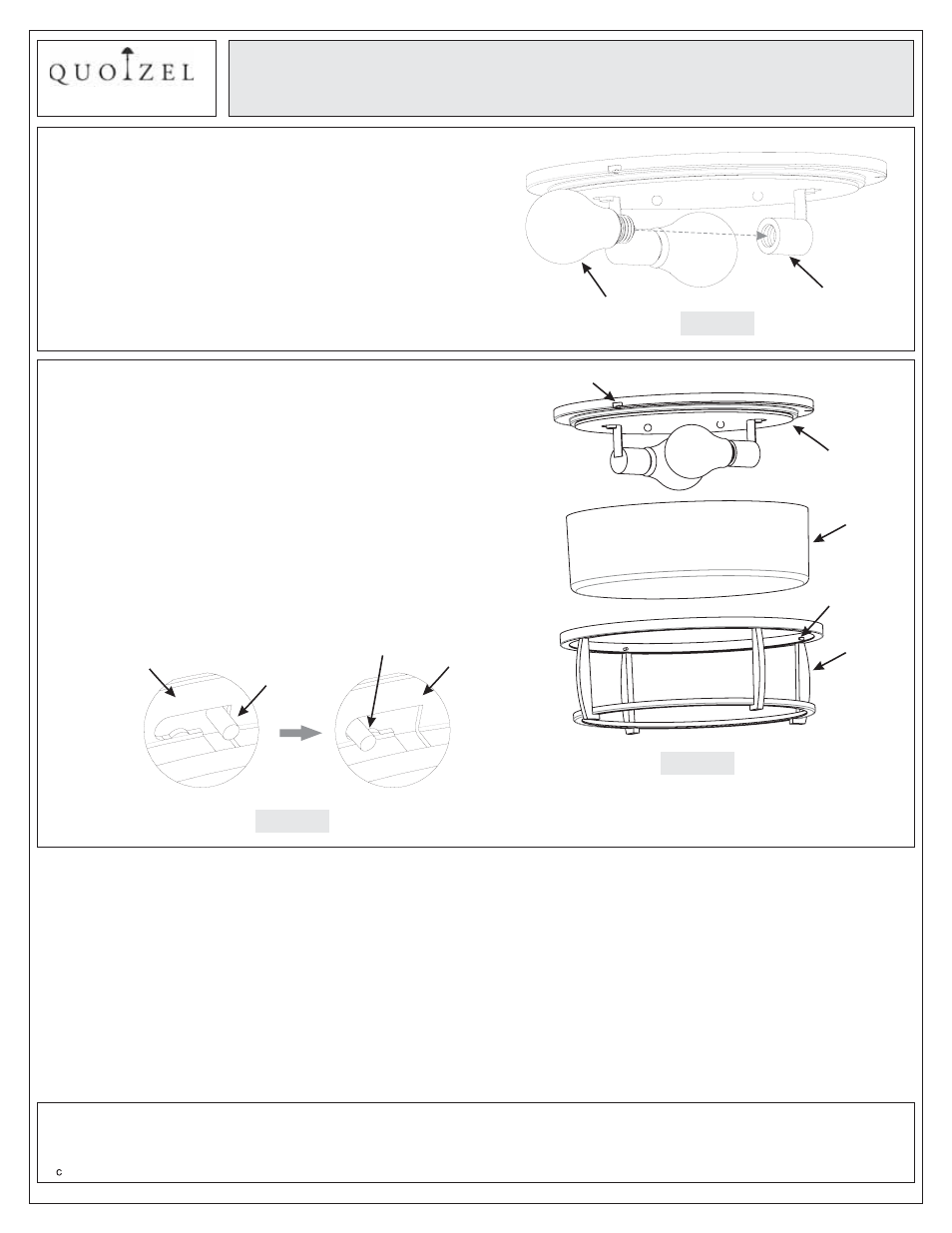

STEP 6 Assemble Shade and Cage
-
A. Place the Shade (G) inside of the Cage (H).
B. Lift the Cage (H) with Shade (G) upward. Insert the Studs in
the top edge of the Cage (H) into the Slots on the Ceiling
Canopy (F).
Your lamp semi-flush fixture is now assembled and ready to
use. Enjoy!
STEP 5 Install Bulb
-
A. This fixture uses standard bulb with a standard screw base.
Maximum 60 watts.
B. Insert bulb and screw properly into place.
Ceiling
Canopy
Shade
Figure 7
Cage
Stud
Slot
