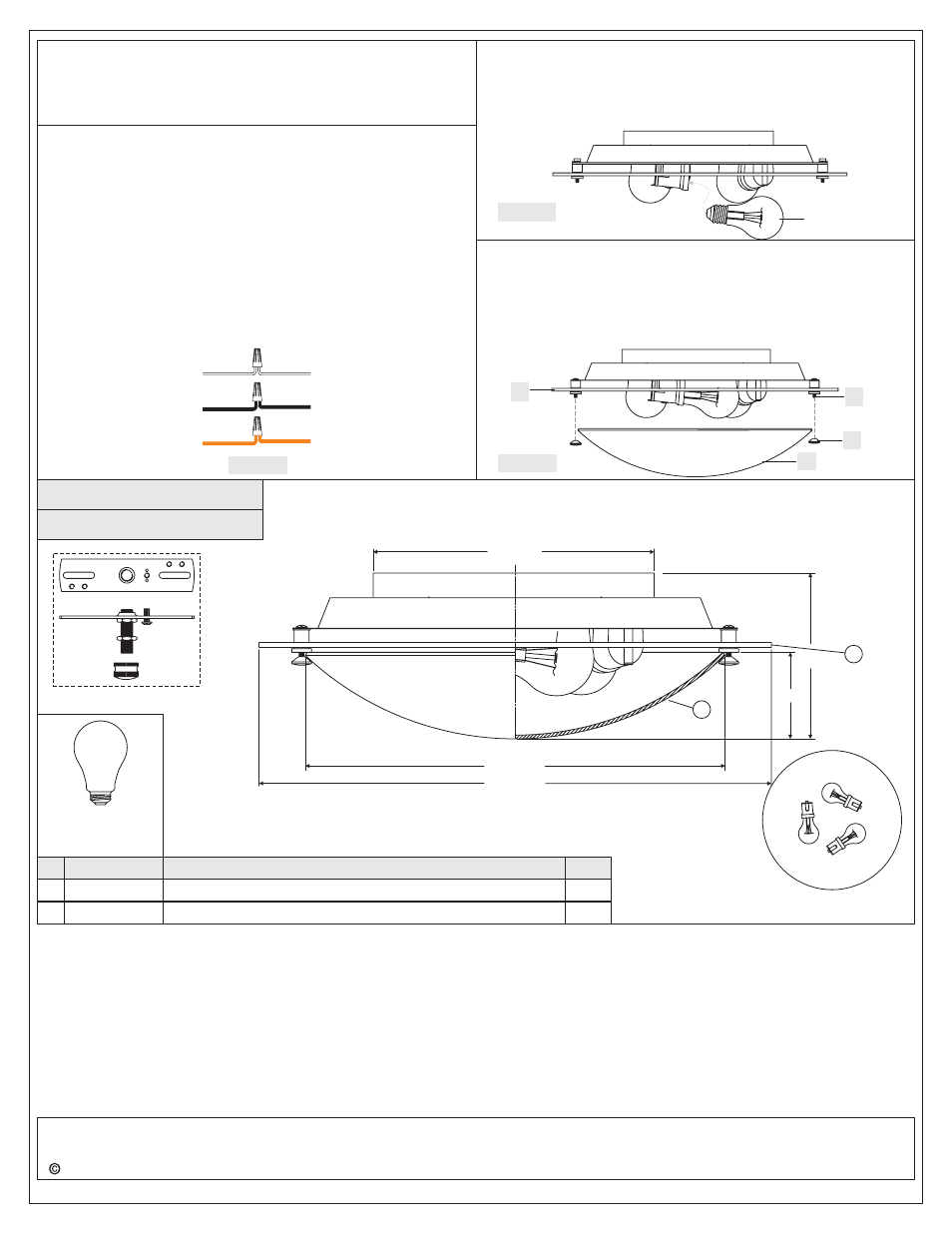

STEP 6 - Install Shade
A. Attach the Shade (H) onto the Ring (B) and secure by threading the
Finial (I) onto the Lock Screw (C). Tighten gently until snug.
Your fixture is now assembled and ready to use. Enjoy!
C
H
I
Figure 6
STEP 5 - Install Bulb
A. This fixture uses standard bulb with medium base. Maximum 60
watts.
B. Insert bulb and screw snugly into place.
Figure 5
Bulb
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed side Wire
from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
Ribbed side wire
from fixture
Black wire from
supply (or Red)
Smooth side wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 4
B
PCBV1617C
PART NUMBER
G3817MR
G3816SH
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2
"
REPLACEMENT PART DESCRIPTION
MIRROR GLASS 16.5"D
SHADE ETCHED PAINTED INSIDE GLASS
REQ.
1
1
NO.
(3) 60W
Bulbs
(Not Supplied)
Medium
Base
1
2
FINISH: POLISHED CHROME
Hex Nut (CC) is needed here to prevent you from crushing down the
center of the Ceiling Canopy (A).
E. Refer to Step 4 for wire connections.
F. Attach the Ceiling Canopy (A) over the end of the Nipple (DD) and
secure with the Mounting Ball (EE). Hand tighten until snug.
TWO LIGHTS SHOWN FOR ILLUSTRATION PURPOSE ONLY.
