2 OF 3

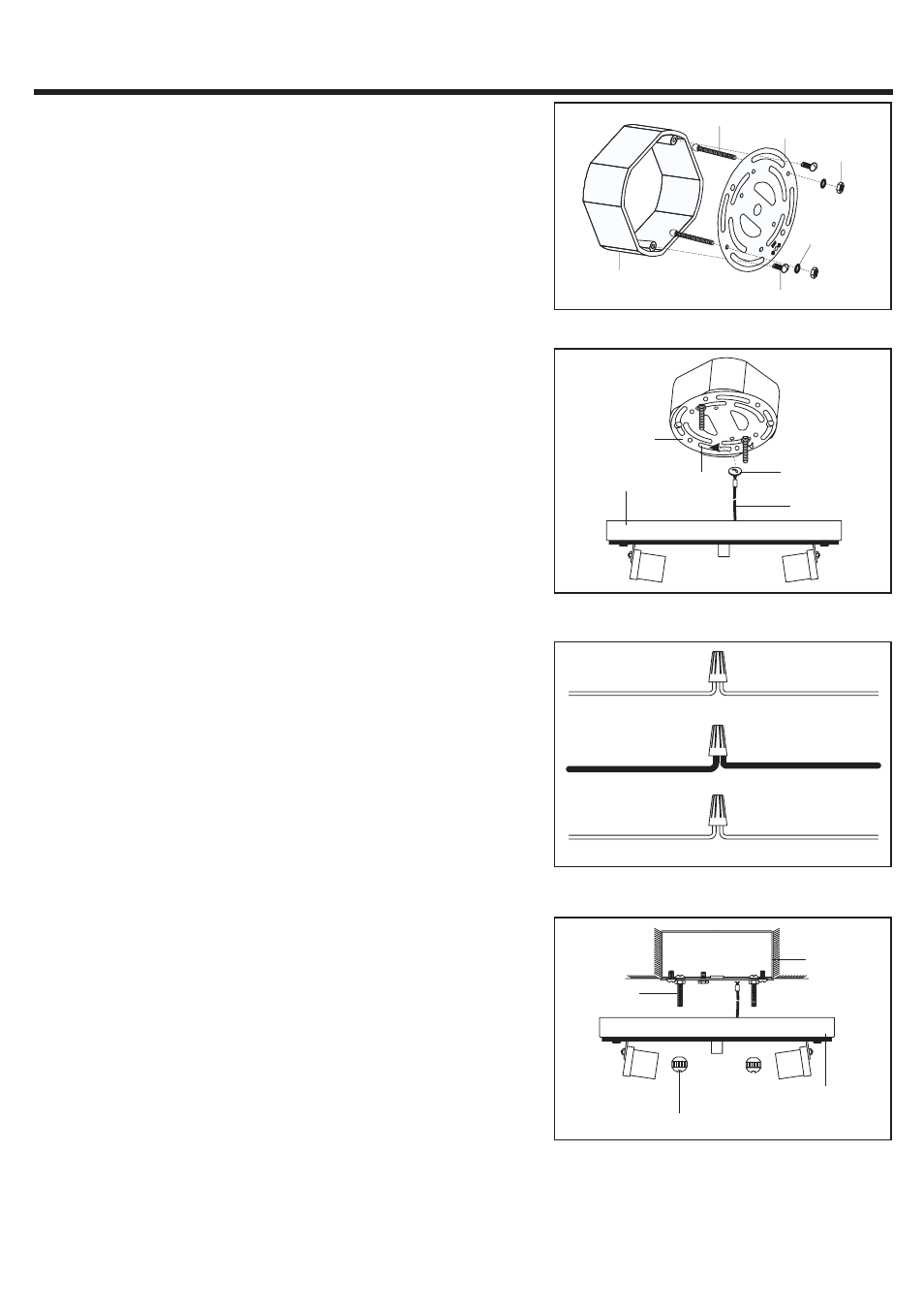

INSTALLATION INSTRUCTIONS
STYLE NUMBER MY1618ML
:
STEP 1:
a Screw the Mounting Screws into the Crossbar
place the
Lock Washers over the Mounting Screws and thread the
Hex Nuts onto the Mounting Screws as shown
Secure the
position of the Mounting Screws by tightening the Hex Nuts
against the Crossbar
b
Secure the Crossbar to the Outlet Box with Outlet Box
Screws
.
,
.
.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
STEP 2
:
a Locate the Ceiling Canopy onto the Crossbar and slip the
Button Stop on the end of Lanyard into the Slot on the
Crossbar as shown.
.
Slot
Lanyard
Ceiling Canopy
Crossbar
Button Stop
WHITE OR RIBBED
BLACK OR RED WIRE
(
)
FROM HOUSE
GROUND WIRE
GROUND WIRE
FROM HOUSE
FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE
FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STEP 3
:
*
(
)
.
.
.
(
)
(
)
.
(
)
(
).
.
.
Use Wire Connectors not supplied to connect the
wires
a
Connect the House Ground Wire to the Fixture Ground
Wire.
b
Connect the House White
or Ribbed
Wire to the
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red
Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet
Box
Mounting
Screw
Ceiling
Canopy
STEP 4
:
.
a
Place the Ceiling Canopy onto Outlet Box aligning 2
holes in the Ceiling Canopy with 2 Mounting screws
threaded on the Crossbar and secure it against wall
with Mounting Balls
.
Outlet Box
Mounting Ball
