Assembly Instruction Sheet #IS-BRX1619C
For Style BRX1619C
March2014

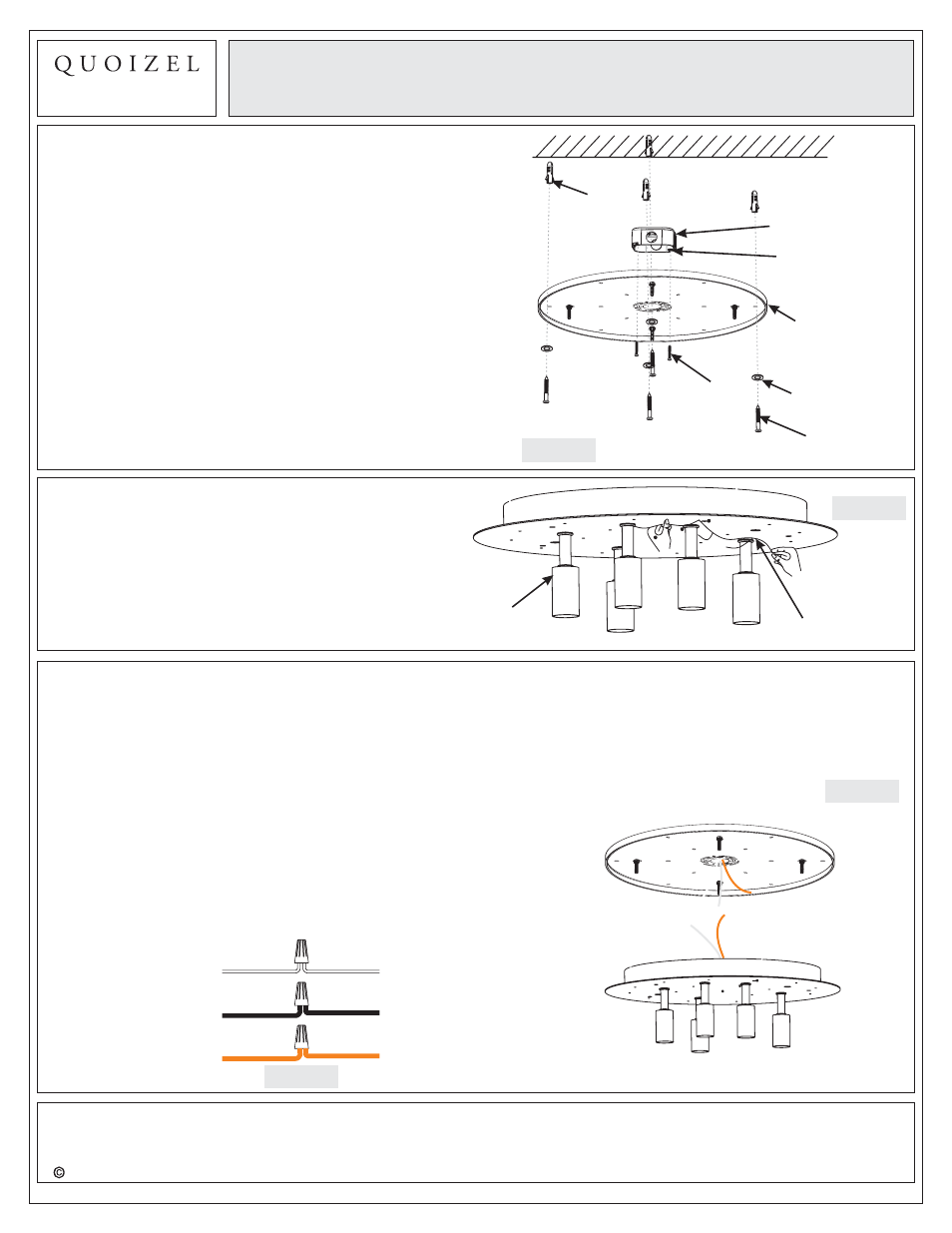

STEP 1
- Attach Inner Backplate to
Outlet Box
A. Place the Inner Backplate (A) onto the ceiling
and line up one set of holes onto mounting
holes on Outlet Box. Using a pencil, mark the
locations for Wall Anchors (I).
B. Remove the Inner Backplate (A) and drill holes
from the marks and then push the Wall Anchors
(I) into the holes.
C. Position the Inner Backplate (A) back onto the
Ceiling. Thread the Outlet Box Screws (not
supplied) into the mounting holes on the Outlet
Box to secure it. Hand tighten until snug.
D. Pass the Washers (B) over the Self-tapping
screws (J) and then thread the self-tapping
screws (J) into the Wall Anchors (I). Hand
tighten until snug.
Figure 2
STEP 2 Remove the Protective film
-
A. Remove the Protective Film for Fixture Body (C).
Protective film
Fixture Body
CEILING
Wall
Anchor
Self-tapping
Screw
Inner
Backplate
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Washer
Figure 1
STEP 3 Make Wire Connections
-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 3
Figure 4
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply
Ground wire from fixture
