Quoizel ALZ1618PN Aliza - Manual (Page 4)

Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
4of6
Assembly Instruction Sheet #IS-ALZ1618PN
For Style ALZ1618PN

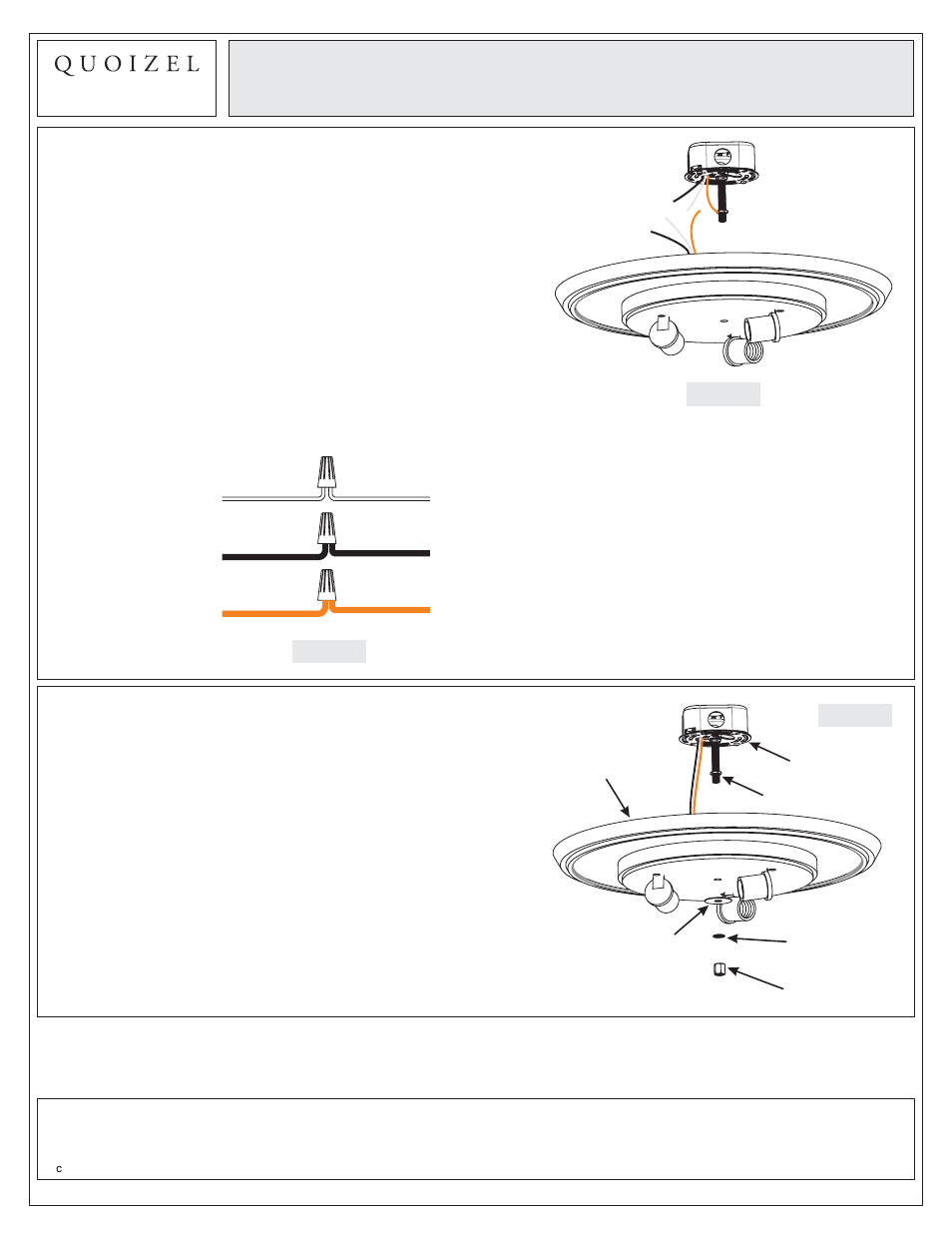

STEP 5 Attach Ceiling Canopy
-
A. Position the Ceiling Canopy (I) to the ceiling by passing
the Nipple (B) through the center hole.
B. Slip on the Small Flat Washer (E) and the Lock Washer
(C) and then thread the Hex Coupling (F) to the bottom
end of the Nipple (B). Snug down assembly until the
Ceiling Canopy (I) is flush against the ceiling.
* Be sure that there are no trapped or pinched wires
along the edge of the Ceiling Canopy (I).
Figure 6
Crossbar
Small Flat
Washer
Nipple
Ceiling
Canopy
Hex Coupling
STEP 6 Make Wire Connections
-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 5
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
Figure 4
Lock Screw
September2011
