3 OF 3
Outlet Box
Mounting Screw
Ceiling Canopy
Mounting Ball
Socket
Shade
Steel Collar
Socket Collar
WHITE WIRE
BLACK OR RED WIRE
(
)
FROM HOUSE
GROUND WIRE
GROUND WIRE
FROM HOUSE
FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE
FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STEP 7
:
a Install the correct Bulb referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
.
INSTALLATION INSTRUCTIONS
STYLE NUMBER TF1536VB
:

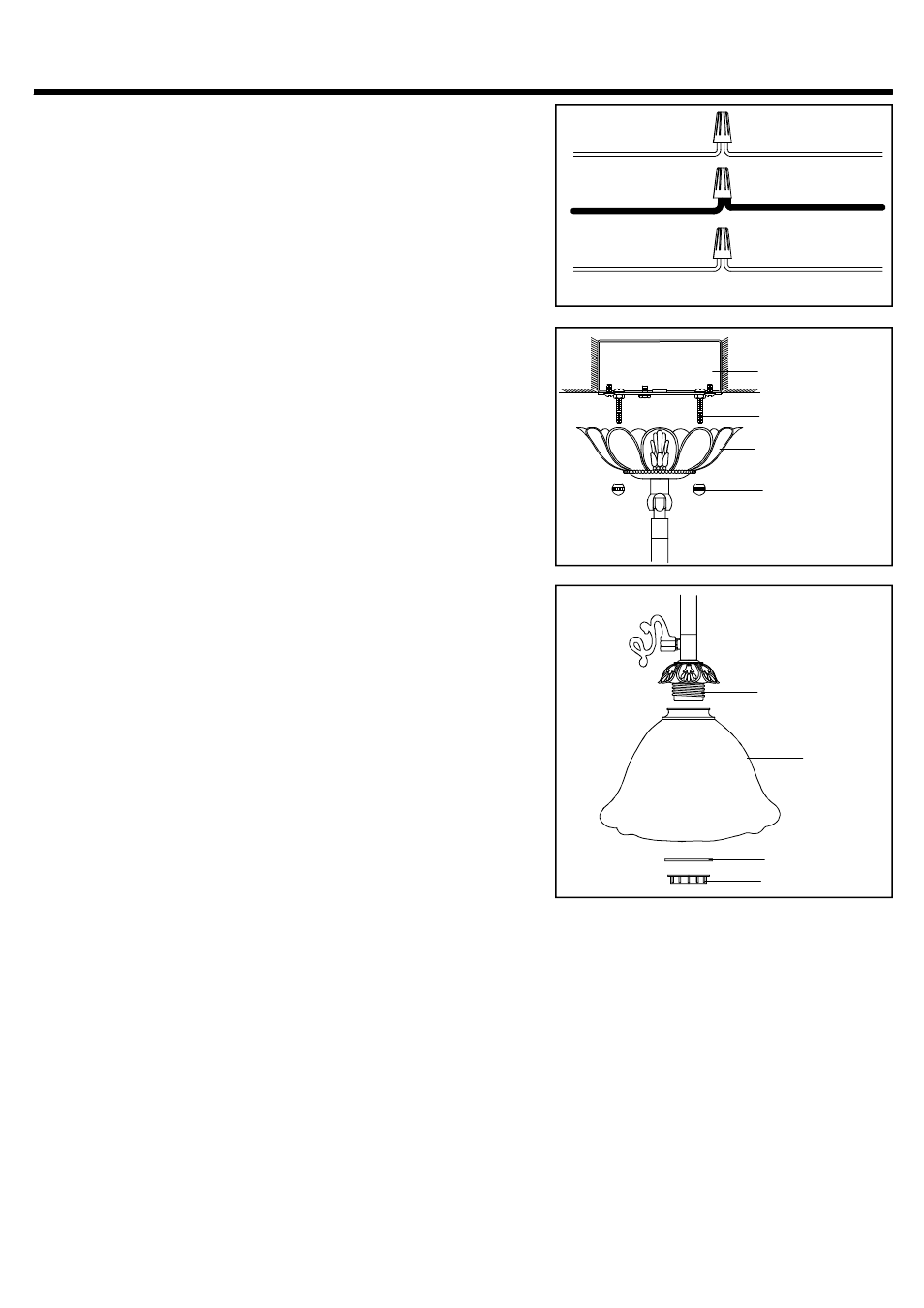

STEP 4
:
*
(
)
.
.
.
(
)
.
(
)
(
).
.
.
Use Wire Connectors not supplied to connect the wires
a Connect the House Ground Wire to the Fixture Ground
Wire.
b Connect the House White Wire to the Fixture Supply Wire
White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet Box
STEP 5:
a Place the Ceiling Canopy over the Mounting Screws and
thread Mounting Balls onto the Mounting Screws to secure
it. Hand tighten until snug.
.
STEP 6:
a
Position the Shade and the Steel Collar over the Socket as
shown. Secure them by threading the Socket Collar onto
the Socket. Hand tighten until snug.
.
