Quoizel MY1506ML Monterey Mosaic - Manual

(2)MOUNTING
SCREWS
UNIVERSAL
CROSSBAR
(2)OUTLET BOX
SCREWS(not supplied)
FIXTURE
CANOPY
(2)MOUNTINGBALLS
SUPPLY WIRES and
GROUND WIRE
SOCKET
SHADE
SOCKET COLLAR

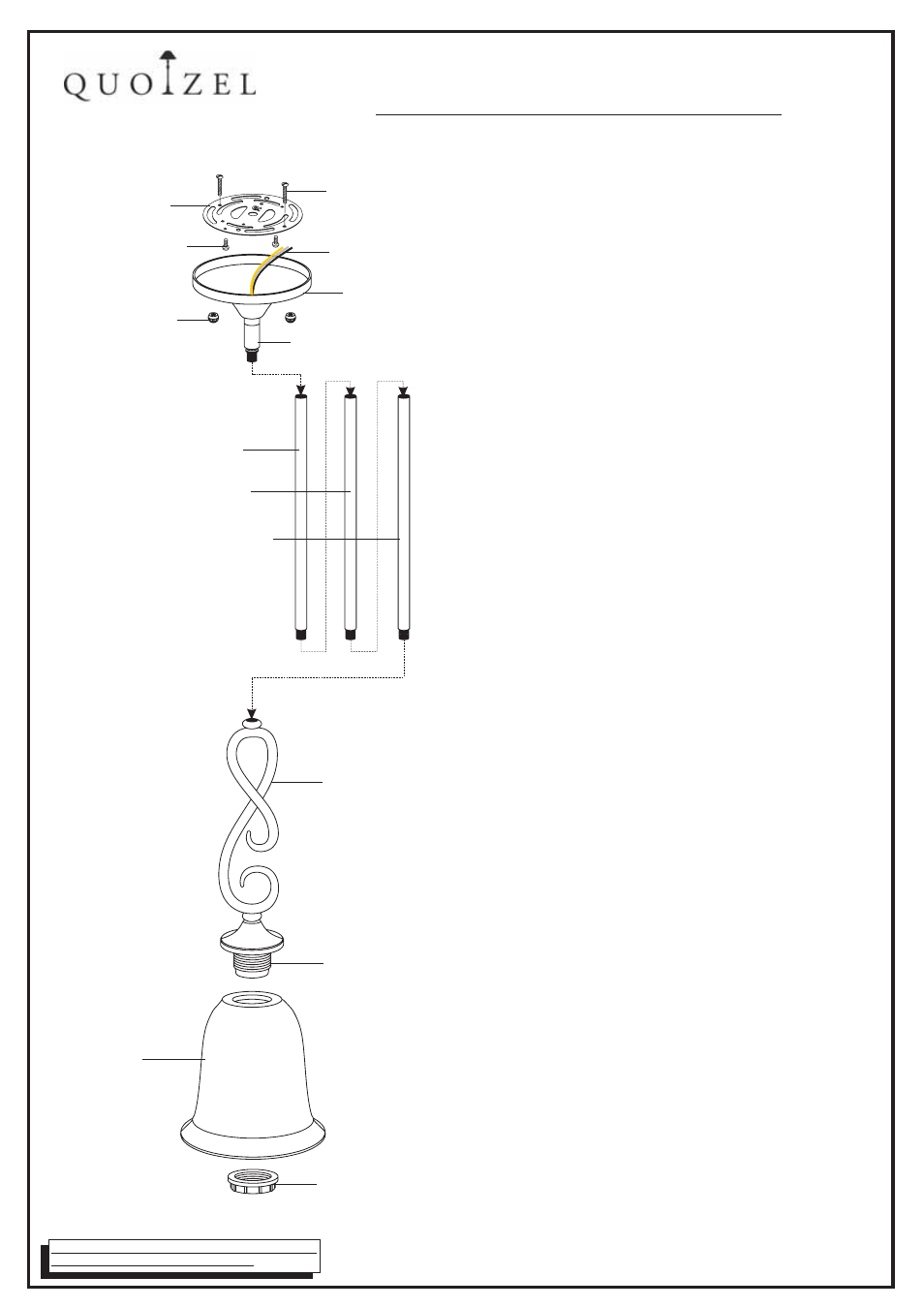

1 Before beginning the installation carefully unpack
and identify all parts referring to the illustration.
2 Turn the electrical power to installation point OFF at
the circuit breaker
3 Pull wires through the end of the LOWER ROD and
then thread the end of the LOWER ROD onto the top
end of the SUPPORT ARM. Hand tighten until snug.
Proceed to pull the wires through the other ROD, then
thread the UPPER ROD the MEDIUM ROD and the
LOWER ROD together. Hand tighten until all are snug.
4 Locate the 2 MOUNTING SCREWS and thread
them into the back of the UNIVERSAL CROSSBAR
making sure that they match the holes in the
FIXTURE CANOPY Using 2 OUTLET BOX
SCREWS not supplied fasten the UNIVERSAL
CROSSBAR to the OUTLET BOX
5
Using wire connectors not supplied connect the
HOUSE GROUND WIRE to the FIXTURE GROUND
WIRE connect the HOUSE WHITE WIRE to the
FIXTURE SUPPLY WIRE WHITE or RIBBED SIDE
connect the HOUSE BLACK or RED WIRE to the
FIXTURE SUPPLY WIRE BLACK or SMOOTH SIDE
Wrap each connection with approved electrical tape
6 Carefully tuck all of the wiring up into the outlet box
and fit the FIXTURE CANOPY over the MOUNTING
SCREWS Secure the FIXTURE CANOPY to the
ceiling with the 2 MOUNTING BALLS making sure
that the balls are fully threaded onto the MOUNTING
SCREWS before tightening
7 Position the SHADE over the SOCKET as shown.
Secure the SHADE by threading the SOCKET
COLLAR onto the SOCKET Hand tighten until snug
8
Restore power to installation point ON Retain this
sheet for future reference
. ,
,
.
.
.
( )
,
. ( )
( ),
.
.
.
.
( ) ,
.
.
. .
.
,
.
( )
;
( );
( )
( ).
.
.
. .
MAKING THE CONNECTIONS:
Install the correct bulb referring to fixture markings
and or labels for maximum wattage
9
/ .
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
ASSEMBLY / INSTALLATION INSTRUCTIONS
IS MY1506
2007-10 23 -
-
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
UPPER ROD
MEDIUM ROD
LOWER ROD
SUPPORT
ARM
SWIVEL
