Figure 1
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of6

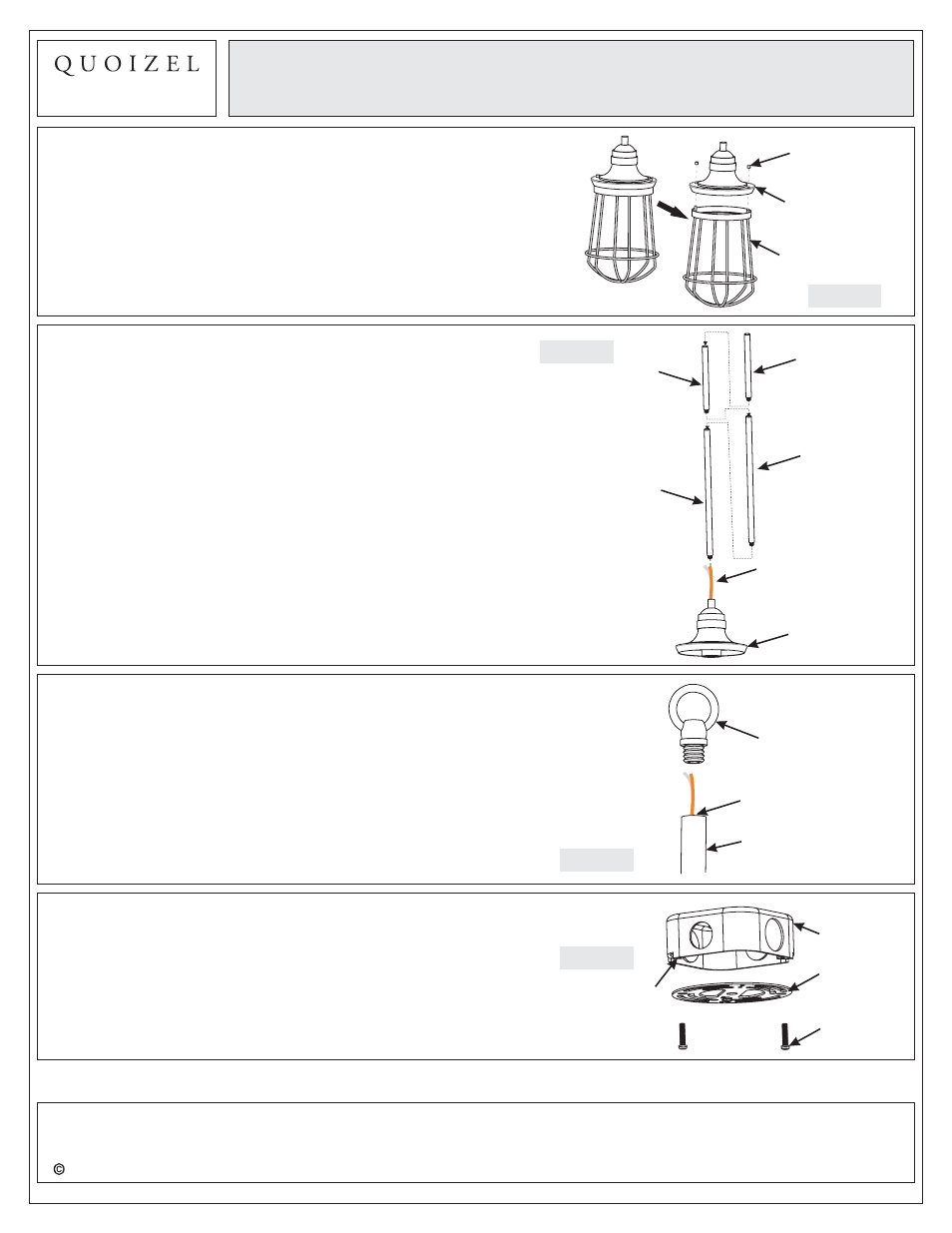

STEP 1 Remove Cage from Socket Assembly
-
A. Remove Cage from Socket Assembly by unlocking Lock
Ball.
Lock Ball
Assembly Instruction Sheet #IS-MRE1506WT
For Style MRE1506WT
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc. August2013
Figure 2
12” Rod
STEP 2 Assemble Rods
-
A. Determine the Rods (G/H) to be assembled to the Socket
Assembly (I) according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (G/H) and then thread the chosen Rods (G/H) and
the Socket Assembly (I) together. Hand tighten until snug.
6” Rod
6” Rod
12” Rod
Socket
Assembly
Supply Wire and
Ground Wire
Socket
Assembly
Cage
STEP 3 Assemble to Upper Rod
-
Fixture Loop
A. Pass Supply Wires and Ground Wire through the Fixture
Loop (G) then thread the Fixture Loop (G) and the Upper
Rod together. Hand tighten until snug.
Fixture Loop
Upper Rod
Supply Wire and
Ground Wire
Figure 3
STEP 4
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 4
Crossbar
Outlet Box
Mounting
Hole
