Quoizel ER1508BN Emery User Manual
Page 2
2of2
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2014 QuoizelInc.
March2014

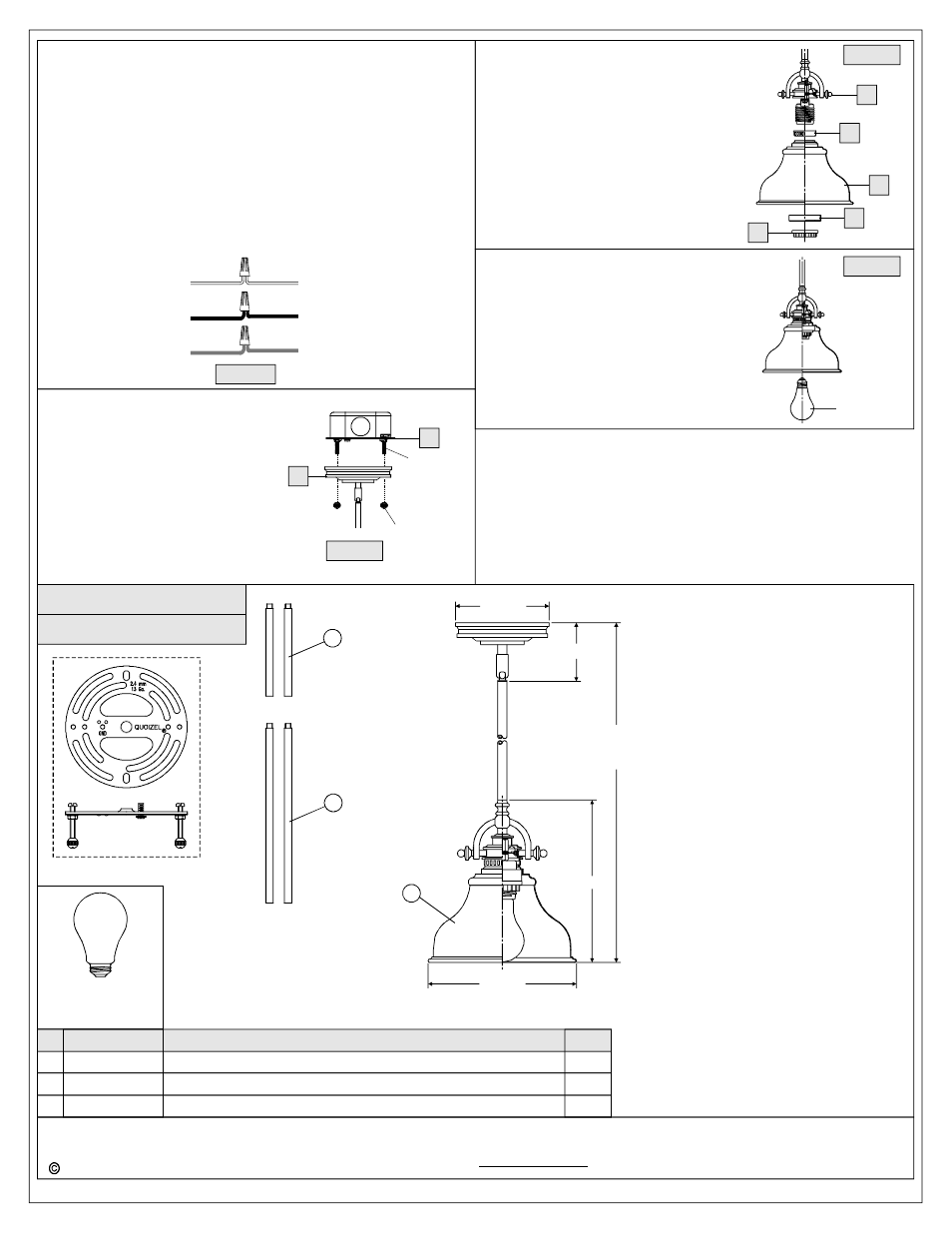

STEP 6
Install Shade
-
A. Place the Upper Collar (E), the Shade (F)
and the Steel Collar (G) onto the Socket
Assembly (D) in turn and secure with the
Socket Collar (H). Hand tighten until snug.
STEP 7
Install Bulb
-
A. This fixture uses standard bulb with
medium base. Maximum 100 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready
to use. Enjoy!
Figure 7
ER1508BN
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REQ.
NO.
(1) 100W
Bulb
(Not Supplied)
Medium
Base
1
FINISH: BRUSHED NICKEL
2
M 213 2SH
9006EXBN
METAL SHADE BRUSHED NICKEL 8"D
ROD EXTENSION BRUSHED NICKEL 6"L X 0.5"D
1
2
9
”
48
”
OVERALL HEIGHT INCLUDES
(2)6
” AND (2)12” RODS
5
” Dia.
3.5
”
8
” Dia.
3
9012EXBN
ROD EXTENSION BRUSHED NICKEL 12
”L X 0.5"D
2
2
3
1
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed side Wire
from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
Ribbed side wire
from fixture
Black wire from
supply (or Red)
Smooth side wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 4
STEP 5
Install Fixture Body
-
A. Carefully tuck all wires into the outlet
box and position the Ceiling Canopy
(A) over the outlet box. Align the
holes in the Ceiling Canopy (A) with
the mounting screws, then attach the
Ceiling Canopy (A) using the
previously removed mounting balls.
Hand tighten until snug.
Mounting
Screw
C
AA
Mounting Ball
Figure 5
Figure 6
D
E
F
G
H
Bulb
