Page 2
2of2
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2013 QuoizelInc.
December2013

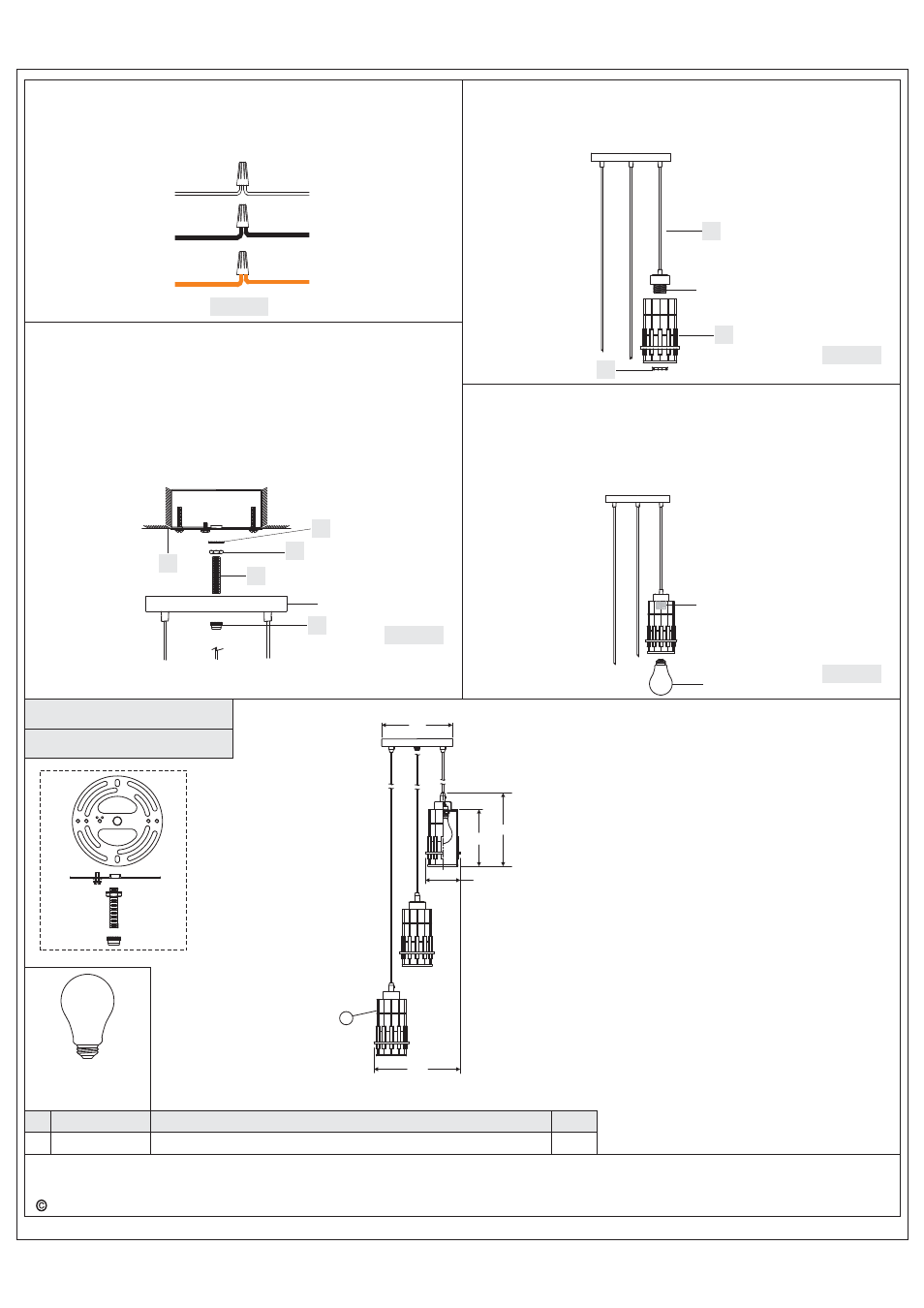

D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 3
STEP 4
Install Fixture Body
-
* Pliers is required for this step.
A. Thread Hex Nut (CC) to the Nipple (DD) place Lock Washer (BB)
over the Nipple (DD) and then thread the Nipple (DD) into the
Crossbar (AA) until the Nipple (DD) is about 0.375” above the
Crossbar (AA).
B. Place the Ceiling Canopy (HH) over the Nipple (DD) against the
ceiling to determine the correct position of the Nipple (DD). Thread
the Finial (E) onto the Nipple (DD). Tighten until sung.
,
Figure 4
AA
BB
CC
DD
EE
Ceiling
Canopy
STEP 5 - Install Shade to fixture
A. Place Shades (B) over the Sockets on the Fixture Body (A), secure
with Socket Collars (C), hand tighten until sung.
Figure 5
A
B
C
Socket
STEP 6 - Install Bulb
A. This fixture uses standard bulbs with medium screw bases.
Maximum 100 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Socket
Bulb
TFCS1510VB
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2
"
REPLACEMENT PART DESCRIPTION
REQ.
NO.
(3) 100W
Bulbs
(Not Supplied)
Medium
Base
1
FINISH: VINTAGE BRONZE
G3783SH
SHADE TIFFANY 5"D
3
GND
2.4mm
13Ga
QUOIZEL
R
1
10”
8”
5”Dia
.
12”
10”
Figure 6
