2of2

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2014 QuoizelInc.

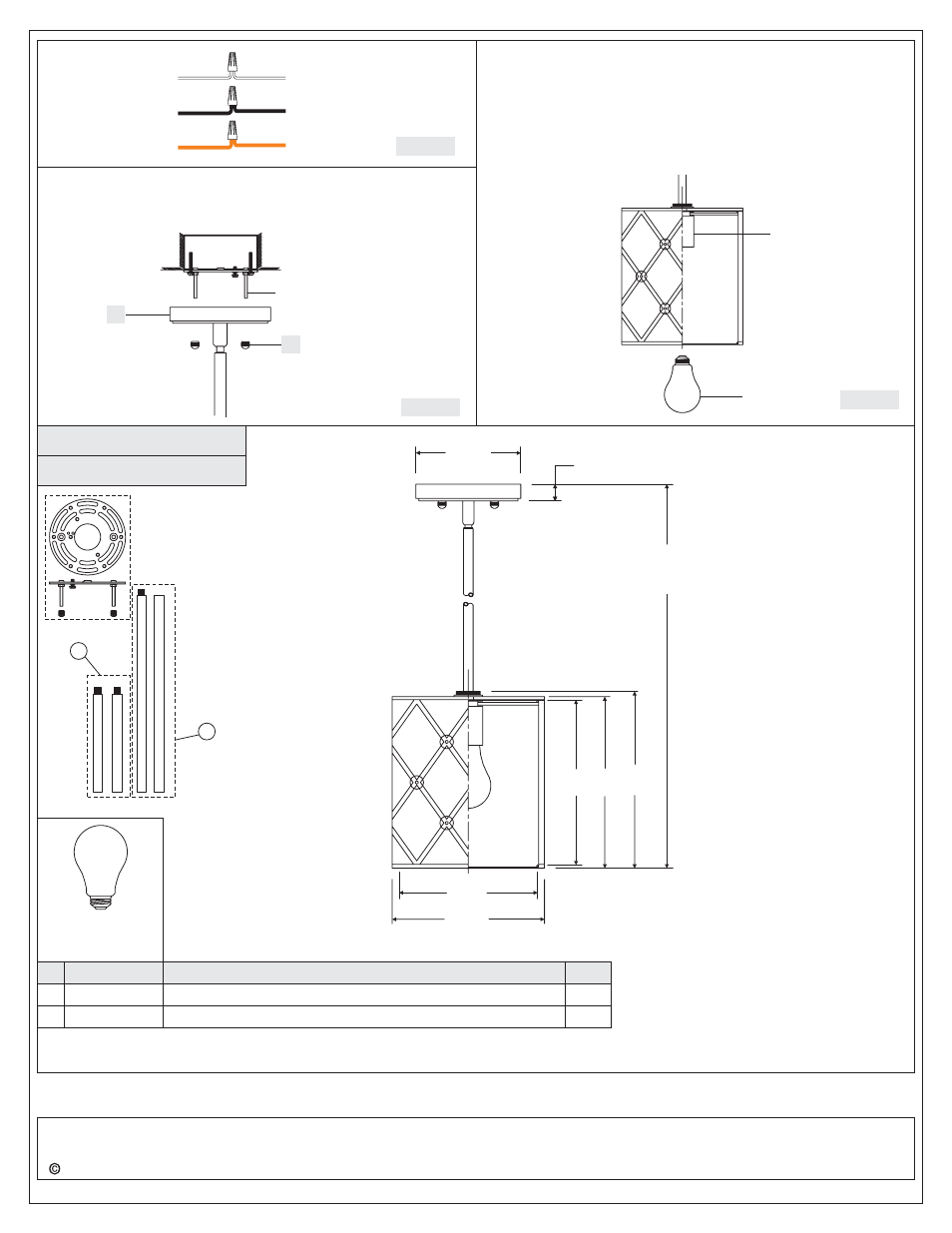

White wire

from supply

Ribbed side wire
from fixture

Black wire from
supply (or Red)

Smooth side wire
from fixture

Ground wire

from supply

Ground wire
from fixture

Figure 3

STEP 5

Install Bulb

-

A. This fixture uses standard bulb with medium screw base. Maximum

100 watts.

B. Insert bulb and screw snugly into place.

Your fixture is now assembled and ready to use.
Enjoy!

Socket

Bulb

Figure 5

BWL1508CC

PART NUMBER

9006EXCC

9012EXCC

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2

"

REPLACEMENT PART DESCRIPTION

ROD EXTENSION COPPER CANYON 6"L X .5"D

ROD

COPPER CANYON 12"L X .5"D

EXTENSION

REQ.

2

2

NO.

(1) 100W

Bulbs

(Not Supplied)

Medium

Base

1

2

FINISH: COPPER CANYON

STEP 4

Attach Fixture Body to Mounting Screw

-

A. Place the Backplate of the Fixture Body (A) over the Mounting

Screws and secure with Lock Ball (B). Hand tighten until snug.

Figure 4

A

B

Mounting Screw

5.5” Dia.

1”

48”

OVERALL HEIGHT INCLUDES

(2) 6” AND (2) 12” RODS

9”

9.5”

8” Dia.

7” Dia.

8.5”

February2014

GND

2

1
