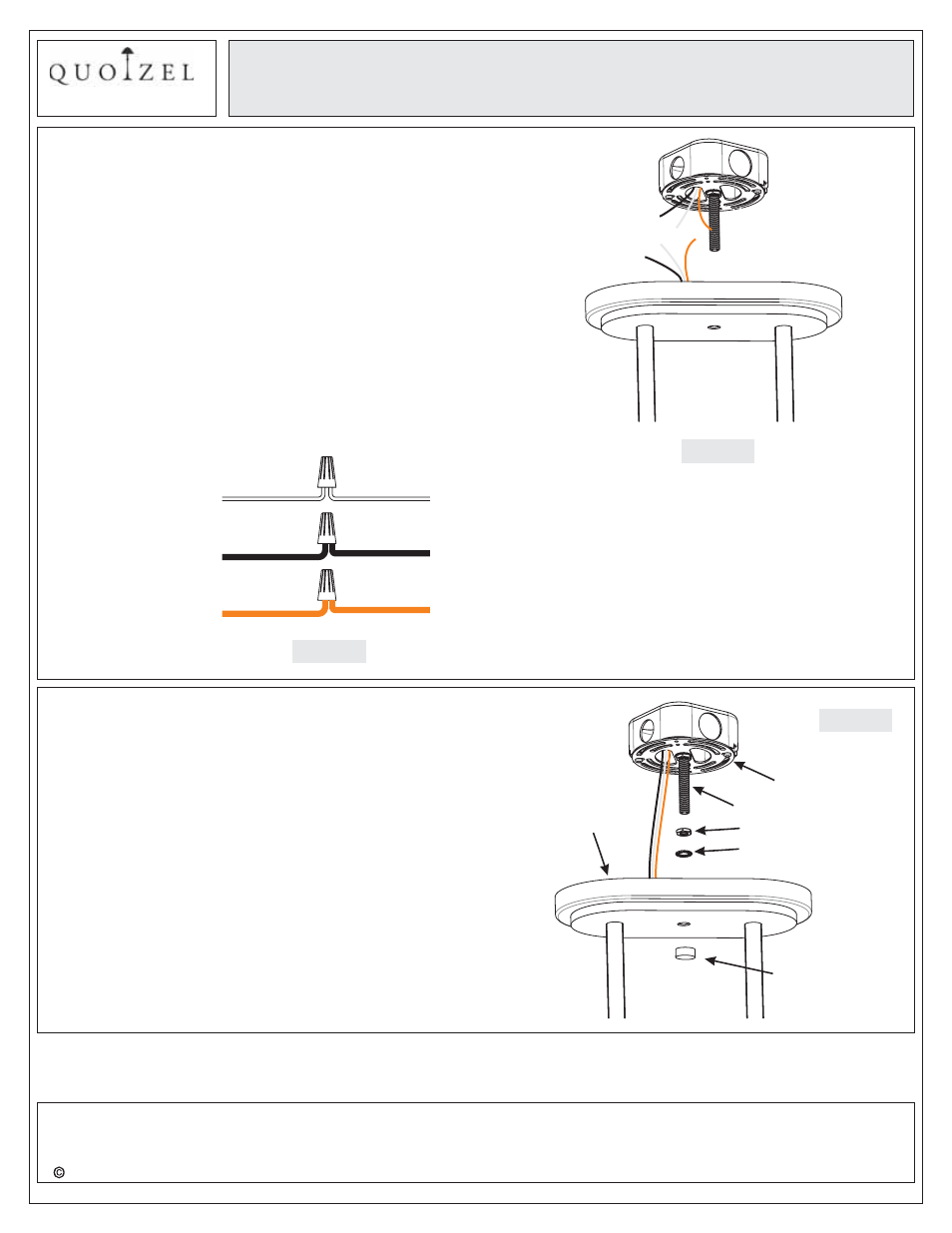

STEP 5 Make Wire Connections
-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 6
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
Figure 5
Assembly Instruction Sheet #IS-ADS639DC
For Style ADS639DC
STEP 6 Install Ceiling Canopy
-
A. Thread another Hex Nut (D) onto the end of the Nipple
(B). Place the Lock Washer (C) over the end of the
Nipple (B) and then pass the Ceiling Canopy (I) over the
end of the Nipple (B). Secure by threading the Lock Ball
(E) onto the Nipple (B). Hand tighten until snug.
Figure 7
Crossbar
Lock Washer
Hex Nut
Nipple Ceiling
Canopy
Lock
Ball
