INSTALLATION INSTRUCTIONS
4 OF 4

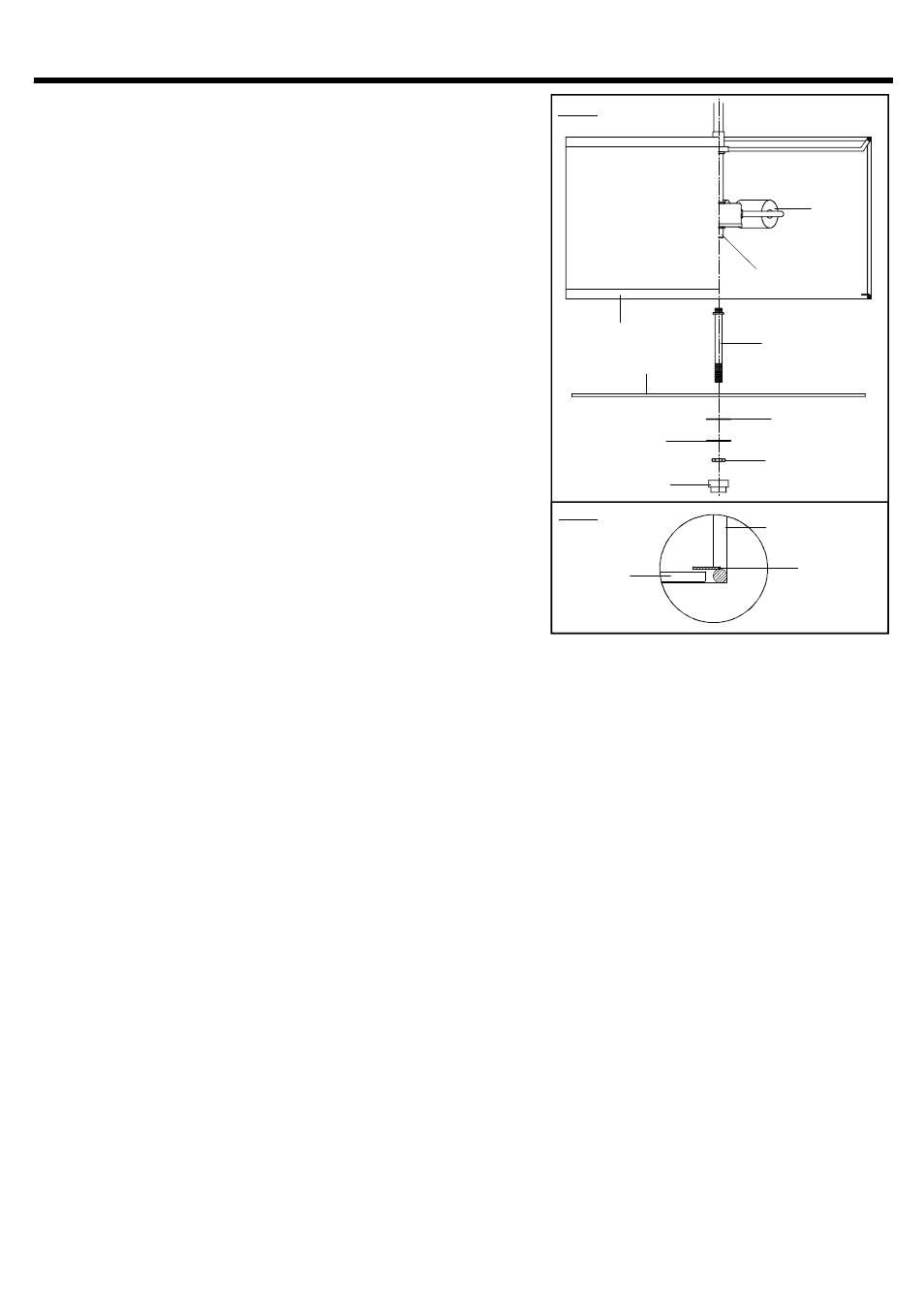

STEP 7:
(Refer to Fig.1)
(Refer to Fig.2)
a. Thread the beaded end of the Stem into the Coupling
underside of the Socket Cluster. Hand tighten until snug.
b. Pass the Diffuser, the Rubber Washer and the Flat Washer
over the end of the Stem in turn and secure with the Hex
Nut (1/8IP). Hand tighten gently until snug.
c. Thread the Finial onto the end of the stem and hand tighten
until snug.
d. Please make sure the Diffuser is under the Tabs in the
bottom of the Shade after Assembly.
Stem
Flat Washer
Hex Nut (1/8IP)
Finial
Rubber Washer
Shade Assembly
Socket
Cluster
STEP 8
.
:
a Install correct Bulbs referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
Coupling
Diffuser
STYLE NUMBER ZE2822K :
Fig.2
Fig.1
Diffuser
Shade
Tab
