3 OF 3
STYLE NUMBER YU1768IB : INSTALLATION INSTRUCTIONS
STEP 5:
a Adjust the Hex Nut on the end of the Nipple to proper
location for the rest components.
.
b Pass the Flat Washers, Rubber Washers and Shade over
the end of the Nipple as shown in the illustration. Secure
them with the Hex Nut (1/8IP) and tighten gently until snug.
c Pass the Cap over the end of the Nipple and secure with
the Finial. Hand tighten until snug.
.
.

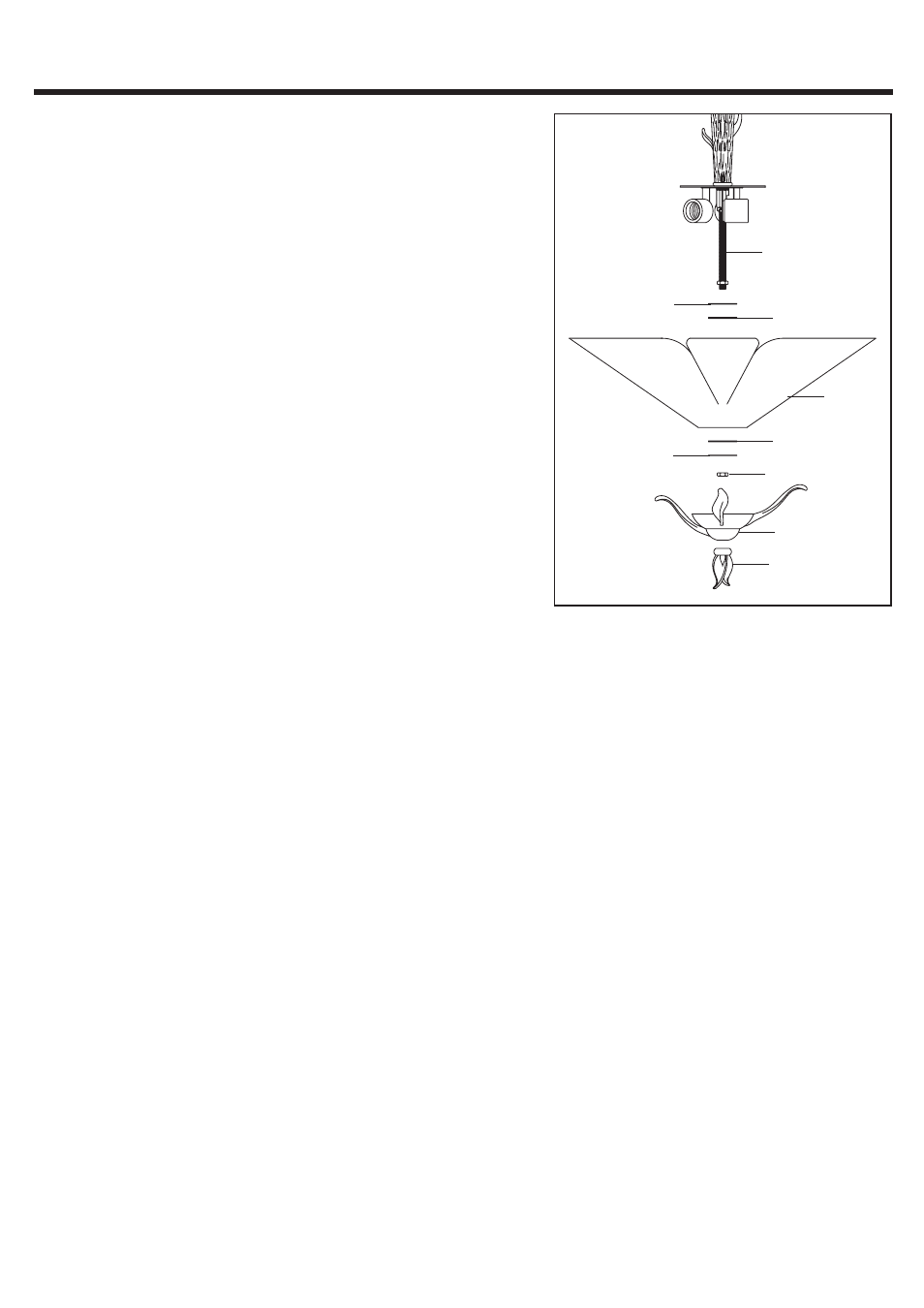

Nipple with
Hex Nuts
Rubber Washer
Rubber Washer
Flat Washer
Flat Washer
Hex Nut 1/8IP) (
Shade
Cap
Finial
STEP 6
:
/ .
. . .
a
.
Install correct Bulbs referring to fixture markings and or labels for maximum wattage
Your installation is completed now Restore electricity Keep this sheet for future reference
