Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of7
Assembly Instruction Sheet #IS-VTA5204PN
For Style VTA5204PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc. September2013

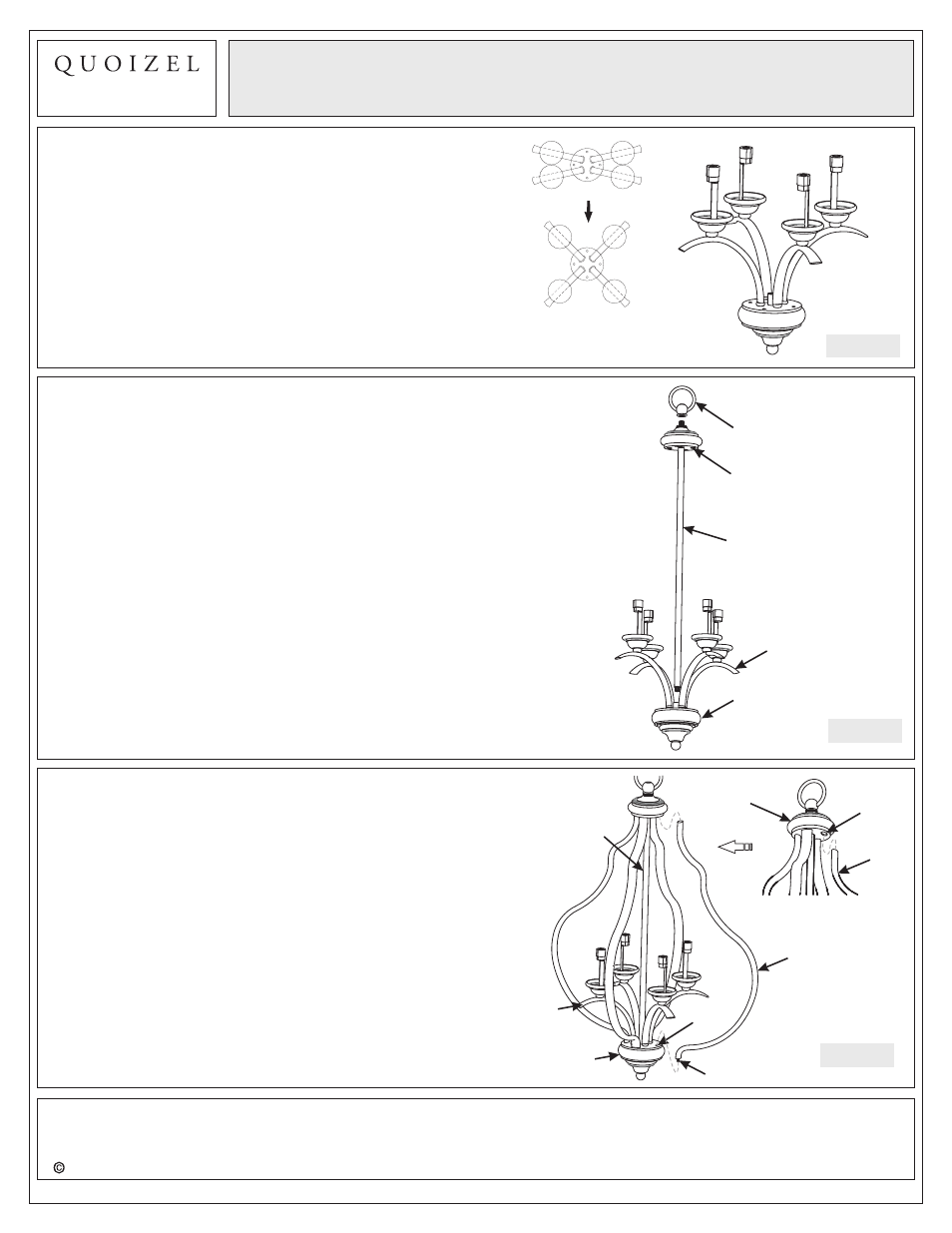

STEP 1 Adjust Fixture Assembly -
A. Unfold support arms on fixture assembly to proper
locations.
Figure 1
STEP 2 - Attach Fixture Loop, Center Stem
and Socket Assembly together
A. Thread Center Stem (J) onto Socket Assembly (K).
Hand tighten until snug.
B. Thread Fixture Loop (I) onto Center Stem (J). Hand
tighten until snug.
Figure 2
Fixture Loop
Socket Assembly
Center Stem
STEP 3 Install Side Arms -
A. Adjust the Center Stem (J) to line up the Oval Holes
on the Box and the holes on the Junction box.
B. Insert the top end of the Side Arm (L) into the Oval
Hole on the bottom of the Box as shown. Insert the
Stud on the bottom end of the Side Arm (L) into the
corresponding hole on the Junction Box.
Figure 3
Stud
Junction Box
Box
Side Arm
Center
Stem
Socket Assembly
Side
Arm
Oval
Hole
Oval Hole
Junction Box
Hole
