Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
August2014
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
Medium Base
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
(4)
bulbs 100W Maximum, Alternate Bulb (4) 23W CFL
Warnings and Cautions
Assembly Instruction Sheet #IS-TFST2822VB
For Style TFST2822VB
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

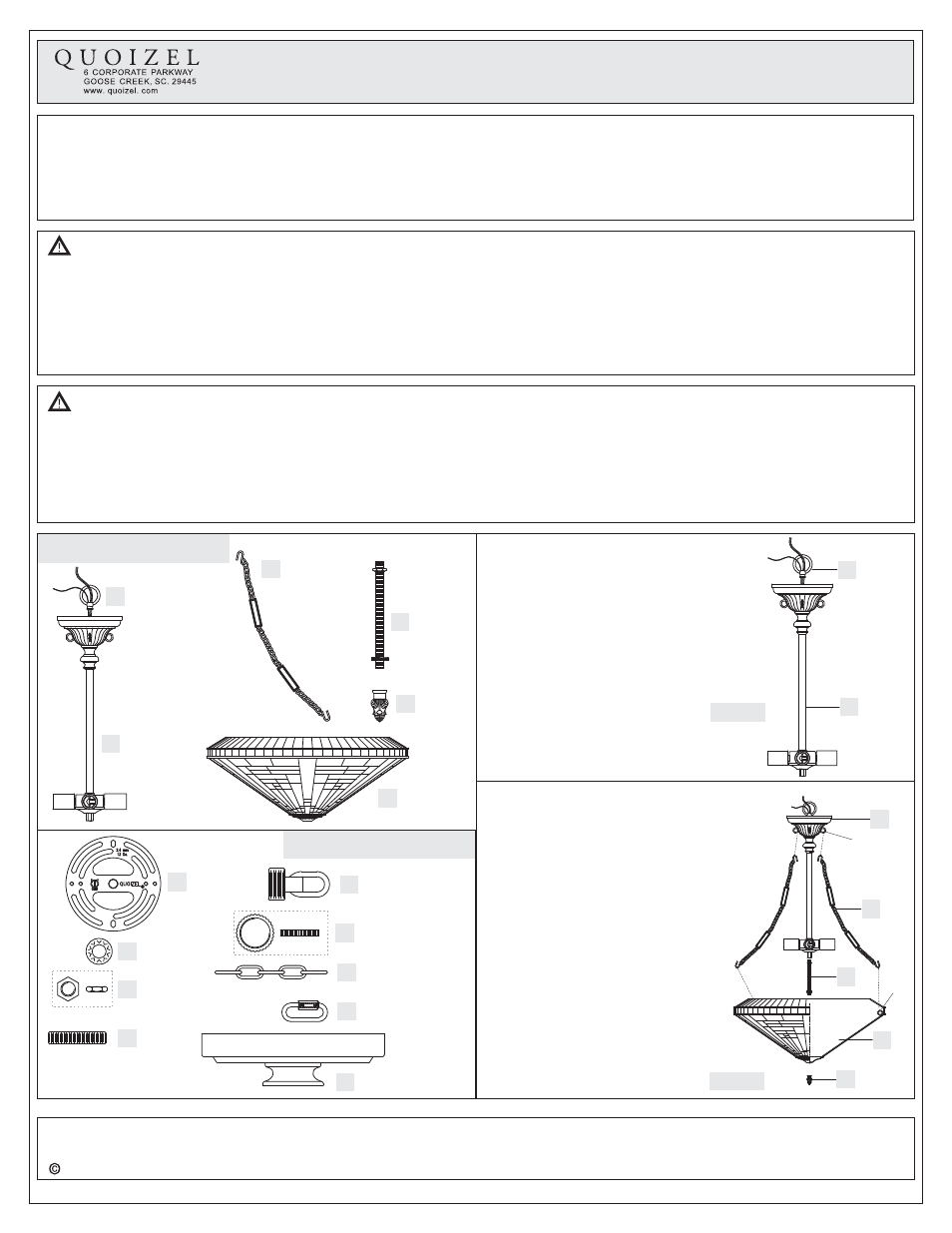

Package Contents
A
B
C
D
F
E
Fixture Loop
x 1
Socket
Assembly
x 1
Side Arms
x 4
Center
Stem
x 1
Finial
x 1
Shade
x 1
Hardware Contents
AA
BB
CC
DD
EE
FF
II
Crossbar
x 1
Lock Washer
x 2
Hex Nut
x 2
Nipple
x 1
Canopy Chain
Loop
x 1
Canopy Lock Ring
x 1
Ceiling Canopy
x 1
GG
Fixture Chain
x 1
HH
Quick Link
x 2
STEP 1
Install Fixture Loop
-
A. Thread the Fixture Loop (A) onto the
nipple on the top center of the Socket
Assembly (B). Hand tighten until snug.
Figure 1
A
B
STEP 2
Install Shade
-
Quoizel recommends (2) people for this step.
A. Thread the hex nut end of the Center Stem
(D) into the hex coupling on the bottom center
of the Socket Assembly (B). Hand tighten until
snug.
B. Place the Shade (F) over the end of the
Center Stem (D). With one person hold the
Figure 2
F
C
D
E
B
Loop
Loop
Shade (F), another person attach one
end of the Side Arm (C) to the Loop at
the Socket Assembly (B) and attach
another ends of the Side Arms (C) to
the Loops in the Shade (F).
C. Adjust the Knurled Nut on the Center
Stem (D) until it is flush to the Shade
(F). Thread the Finial (E) onto the end
of the Center Stem (D) to secure the
Shade (F). Hand tighten until snug.
