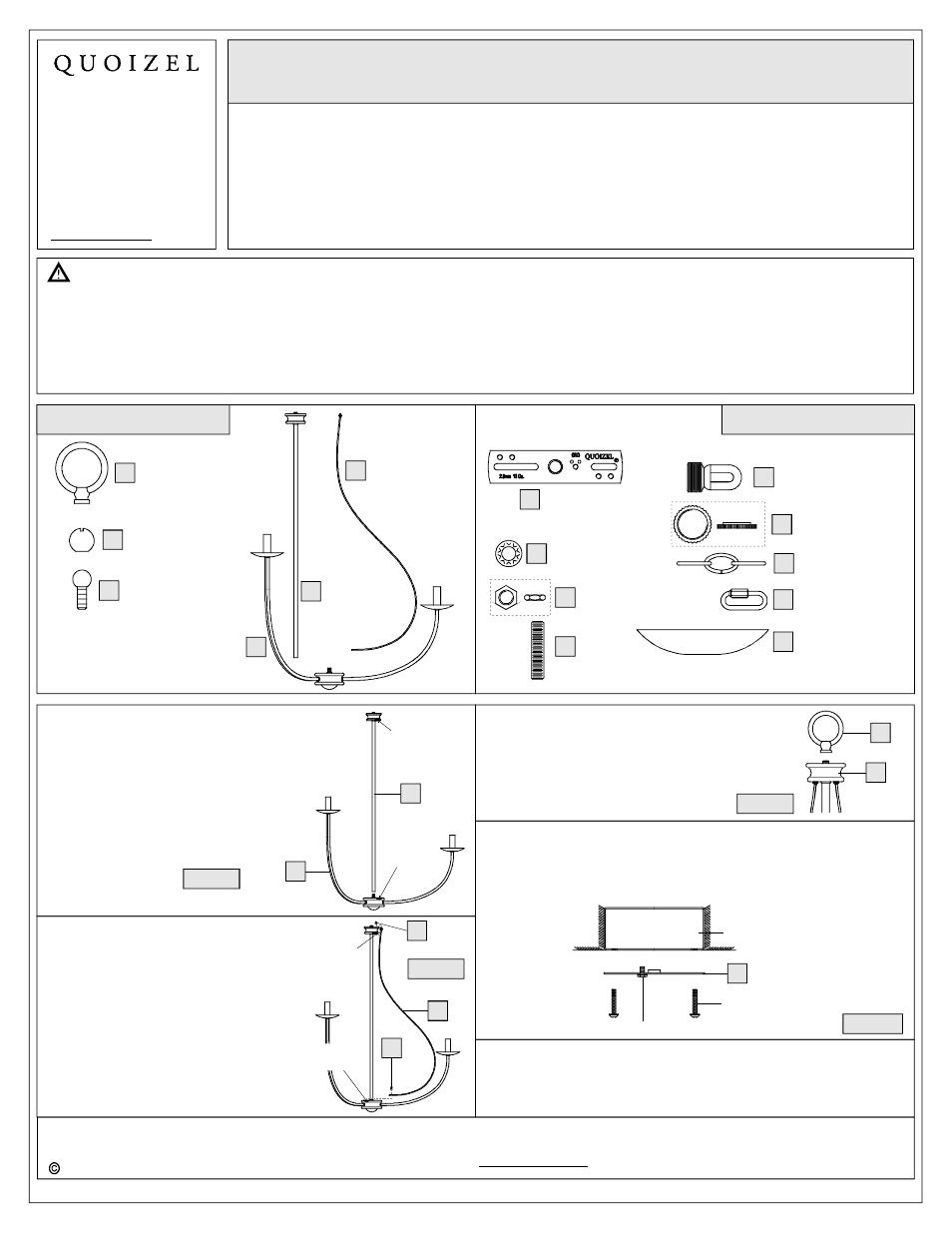

Quoizel SER5009IF Serenity User Manual

Warnings and cautions, Package contents, Hardware contents

Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445

Customer Service
Phone 631.273.2700
Fax

631.231.7102

www.quoizel.com

Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.

Estimated Assembly Time: 30-45 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.

Warnings and Cautions

1of3

Assembly Instruction Sheet #IS-SER5009IF

For Style SER5009IF

Bulb Recommended: (9) Candelabra Base 60W Maximum, Alternate bulb (9) 13W CFL

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2014 QuoizelInc.

February2014

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

Package Contents

Hardware Contents

Fixture Loop
x 1

Lock Screw
x 3

Banding Iron
x 4

Crossbar
x 1

Lock Washer
x 2

Hex Nut
x 2

Nipple
x 1

Canopy Chain Loop
x 1

Canopy Lock Ring
x 1

Ceiling Canopy
x 1

Fixture Chain
x 1

Quick Link
x 2

Socket Assembly

x 1

Lock Ball
x 3

Center
Column
x 1

STEP 1

Install Center Column

A. Thread the end of the Center Column (E)

onto the nipple on the top center of the
Socket Assembly (F). Line up the Holes
on the bottom of the upper body and the
Mounting Holes on the top of the junction
box before tighten them together.

Figure 1

Mounting
Hole

Hole

STEP 2

Install Decorative Arms

A. Line up the Hole on the end of the

Banding Iron (D) to the Mounting Hole
on the top of the Junction Box and
secure with the Lock Screw (C). Do not
tighten the Lock Screw (C) now.

B. Insert the nipple at the top end of the

(D) into the Hole on the

bottom of the Upper Body and secure
with the Lock Ball (B). Tighten the Lock
Ball (B) and Lock Screw (C) until the

(D) is tighten.

Banding Iron

Hole

Figure 2

STEP 3

Install Fixture Loop

A. Thread the Fixture Loop (A) onto the nipple in

the top center of the Center Column (E). Hand
tighten until snug.

Figure 3

STEP 4

Install Crossbar

AA)

Attach the Crossbar (

to the Outlet Box with the head of the

Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included)

Tighten until snug

Figure 4

Outlet Box

Outlet Box Screw
(not included)

Green Ground Screw

STEP 5

Install Canopy Chain Loop and Nipple

* Pliers is required for this step.

A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at

least 0.25

” from the end. Pass one Lock Washer (BB) over the end of

Mounting
Hole
