Quoizel SER5004IF Serenity User Manual
Warnings and cautions, Package contents, Hardware contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Estimated Assembly Time: 30-45 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
1of3
Assembly Instruction Sheet #IS-SER5004IF
For Style SER5004IF
Bulb Recommended: (4) Candelabra Base 60W Maximum, Alternate bulb (4) 13W CFL
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2014 QuoizelInc.
January2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

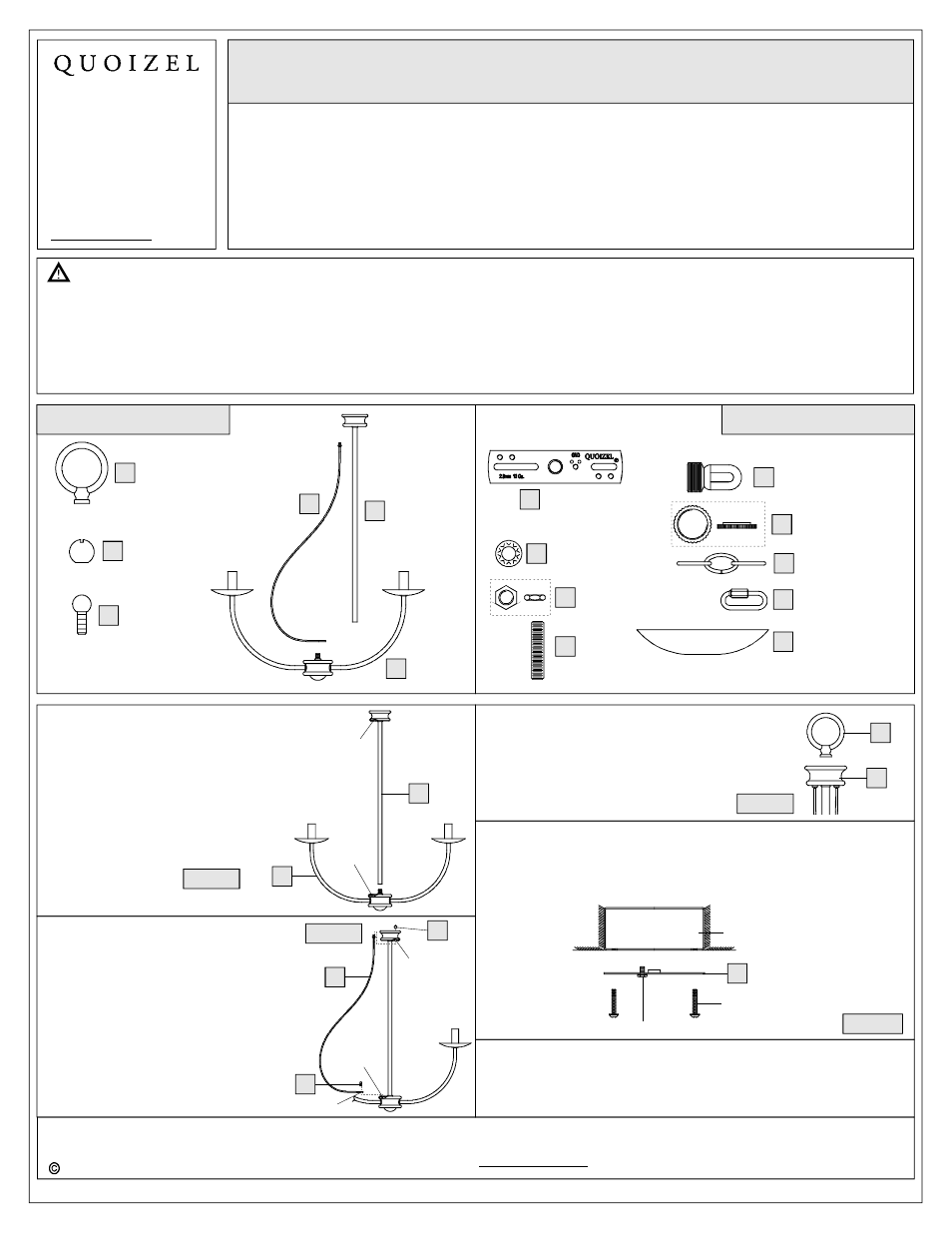

Package Contents
A
C
E
Hardware Contents
Fixture Loop
x 1
Lock Screw
x 4
Center
Column
x 1
AA
BB
CC
DD
EE
FF
II
Crossbar
x 1
Lock Washer
x 2
Hex Nut
x 2
Nipple
x 1
Canopy Chain Loop
x 1
Canopy Lock Ring
x 1
Ceiling Canopy
x 1
GG
Fixture Chain
x 1
HH
Quick Link
x 2
D
Decorative Arm
x 4
B
Lock Ball
x 4
F
Socket
Assembly
x 1
STEP 1
Install Center Column
-
A. Thread the end of the Center Column (E)
onto the nipple on the top center of the
Socket Assembly (F). Line up the Holes
on the bottom of the upper body and the
Mounting Holes on the top of the junction
box before tighten them together.
Figure 1
F
E
Mounting
Hole
Hole
STEP 2
Install Decorative Arms
-
A. Line up the Hole on the end of the
Decorative Arm (D) to the Mounting Hole
on the top of the Junction Box and
secure with the Lock Screw (C). Do not
tighten the Lock Screw (C) now.
B. Insert the nipple at the top end of the
Decorative Arm (D) into the Hole on the
bottom of the Upper Body and secure
with the Lock Ball (B). Tighten the Lock
Ball (B) and Lock Screw (C) until the
Decorative Arm (D) is tighten.
Mounting
Hole
Hole
B
D
C
Figure 2
Hole
STEP 3
Install Fixture Loop
-
A. Thread the Fixture Loop (A) onto the nipple in
the top center of the Center Column (E). Hand
tighten until snug.
A
E
Figure 3
STEP 4
Install Crossbar
-
A.
AA)
Attach the Crossbar (
to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included)
Tighten until snug
.
.
Figure 4
Outlet Box
Outlet Box Screw
(not included)
Green Ground Screw
AA
STEP 5
Install Canopy Chain Loop and Nipple
-
* Pliers is required for this step.
A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at
least 0.25
” from the end. Pass one Lock Washer (BB) over the end of
