Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2014 QuoizelInc.
April2014

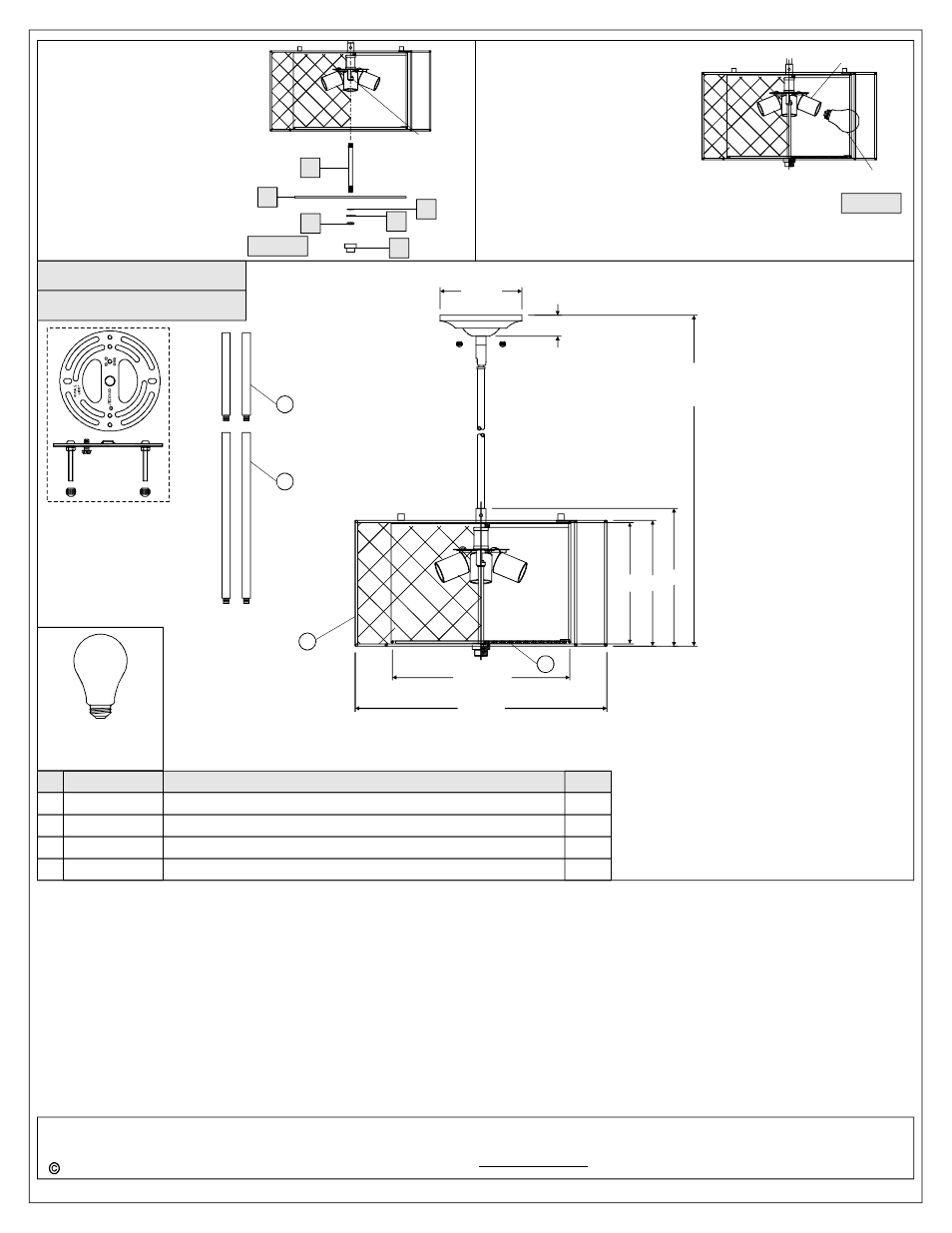

STEP 6
Install Bulb
-
A. This fixture uses standard bulb
with medium screw base.
Maximum 60 watts.
B. Insert bulb and screw snugly
into place.
Your fixture is now assembled
and ready to use.
Enjoy!
Socket
Bulb
Figure 6
MCRM2816PN
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REQ.
NO.
(3) 60W
Bulbs
(Not Supplied)
Medium
Base
1
FINISH: PALLADIAN BRONZE
2
3
4
G153DI
9012EXPN
9006EXPN
DIFFUSER 11.75"D FROSTED GLASS
ROD EXT PALLADIAN BRONZE 12"L X 0.5"D
ROD EXT PALLADIAN BRONZE 6"L X 0.5"D
1
2
2
1
STEP 5
Attach Diffuser to
Fixture
-
A. Thread have bead end of Stem
(F) into the Hex Coupling. Hand
tighten until sung.
B. Place the Diffuser (G), Rubber
Washer (H) and Flat Washer (I)
over the Stem (F), secure with
Hex Nut (J), hand tighten until
sung.
C. Thread Finial (K) onto the Stem
(F), hand tighten until sung.
Figure 5
Hex Coupling
F
G
H
J
K
5
” Dia.
1.5
”
48.5
”
OVERALL HEIGHT INCLUDES
(2) 6
” AND 12” RODS
7.5
” 8” 9”
11.5
” Dia.
16
” Dia.
1
2
3
4
S1605RT
SHADE RATTAN 16
”D
I
