Assembly Instruction Sheet #IS-RL5104WT
For Style RL5104WT
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

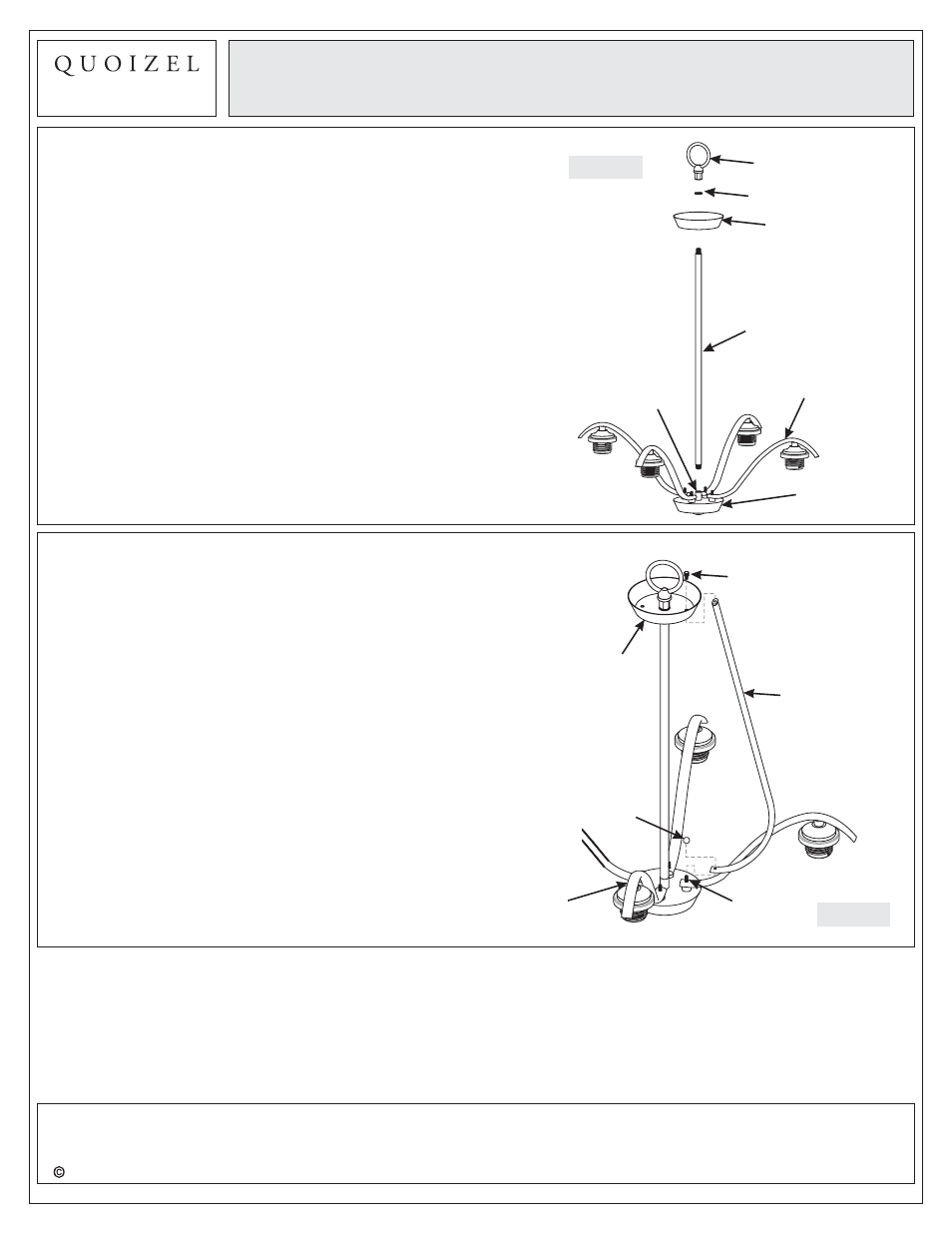

Figure 1
STEP 1 Attach Center Rod and Fixture
Canopy
-
A. Unfold Support Arms on the Socket Assembly (Q) to
proper locations.
B. Thread the Center Rod (N) into the coupling on the top
center of the Socket Assembly (Q). Hand tighten until
snug.
C. Place the Fixture Canopy (M) over the top end of the
Center Rod (N). Line up holes on the bottom of the
Fixture Canopy (M) and Support Arms on the Socket
Assembly (Q). Secure by threading one Lock Washer
(C) and the Fixture Loop (I) onto the Center Rod (N).
Hand tighten until snug.
Figure 2
STEP 2 Attach Side Arm
-
A. Place the Hole on the end of the Side Arm (O) over the
Bolt on the Socket Assembly (Q). Align another end of
the Side Arm (O) to the holes on the Fixture Canopy
(M).
B. Thread Lock Screw (L) into the top end of the Side Arm
(O) and thread Lock Ball (P) onto the Bolt on the Socket
Assembly (Q). Hand tighten until snug to secure Side
Arms.
Lock Ball
Socket
Assembly
Side Arm
Socket
Assembly
Center Rod
Bolt
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
4of8
2012 QuoizelInc. October2012
Fixture Canopy
Lock Washer
Fixture Loop
Support Arm
Coupling
Fixture Canopy
Lock Screw
