INSTALLATION INSTRUCTIONS
STYLE NUMBER QMC404BO :

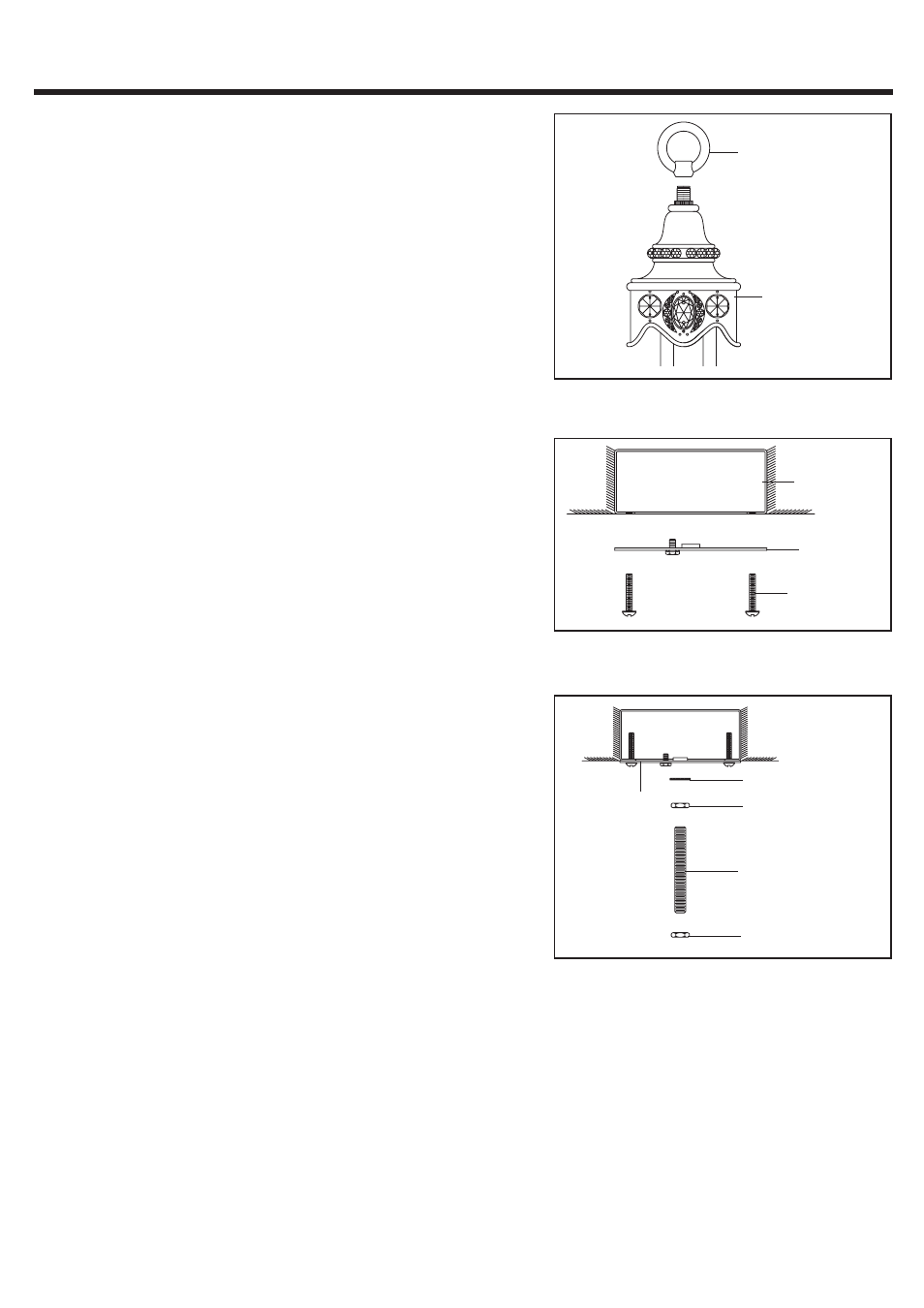

STEP 1 :
a Thread the Fixture Loop onto the nipple on the top center of
the Fixture Assembly. Hand-tighten until snug.
.
Fixture Assembly
Outlet Box
Crossbar
Outlet Box
Screw
STEP 2 :
a Secure the Crossbar onto the Outlet Box with Outlet Box
Screws Tighten until snug
.
. .
2 OF 4
Fixture Loop
STEP 3:
Pliers is required on this step
a Thread one Hex Nut onto top end of the Nipple
b Place one Lock Washer over the top end of the Nipple
and then thread the Nipple into the center lock hole of
the Crossbar
c Using pliers thread the Hex Nut against the crossbar
and hand tighten until snug
d Thread another Hex Nut onto the bottom end of the
Nipple
* .
. .
.
.
. ,
.
.
.
Lock Washer
Crossbar
Hex Nut
Nipple
Hex Nut
