Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of7
Assembly Instruction Sheet #IS-QMC1681AY
For Style QMC1681AY
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

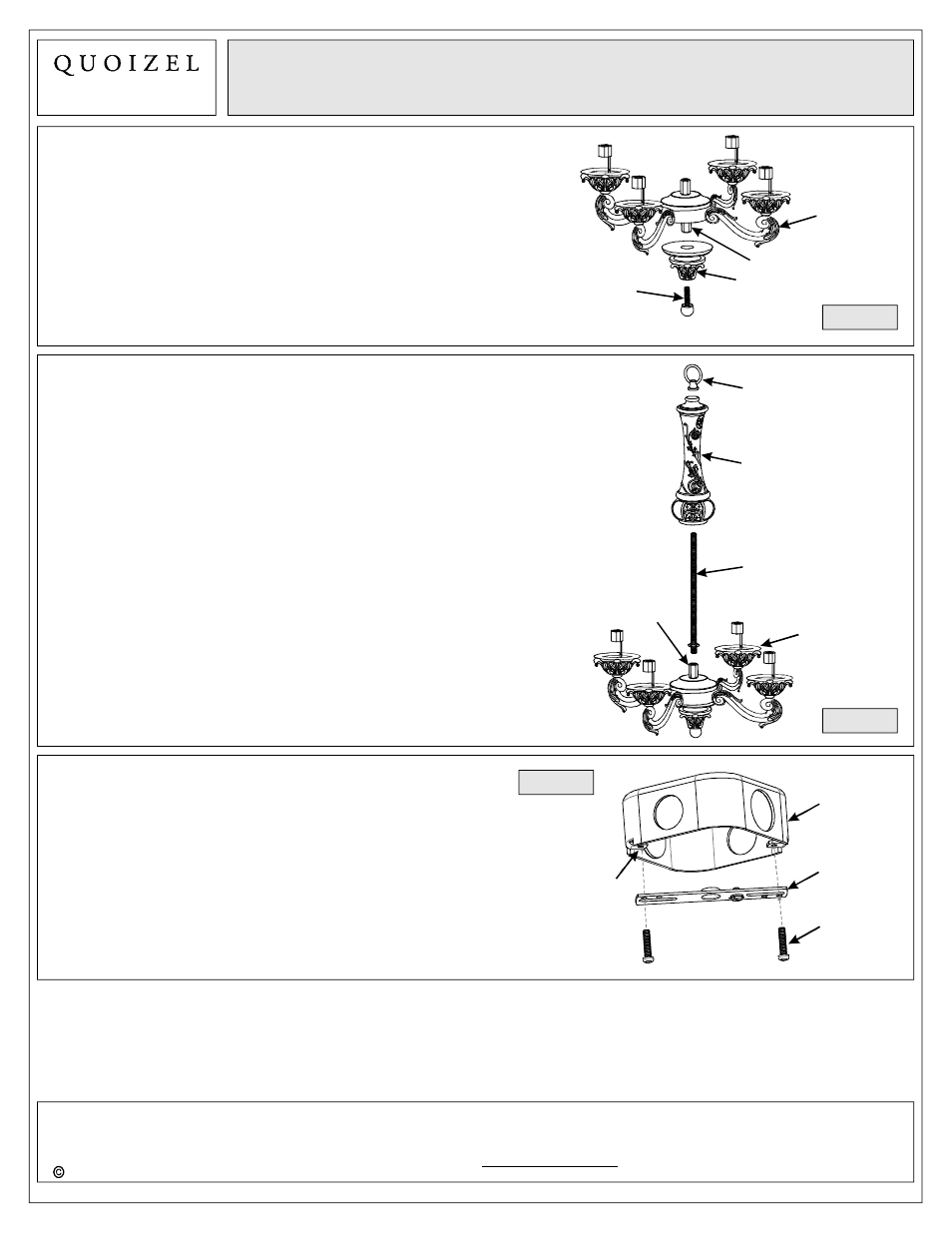

STEP 1 Install Bottom Cap -
A. Attach the Bottom Cap (M) onto the bottom of the
Socket Assembly (I) and secure with the Finial with
Nipple (N). Hand tighten until snug.
Figure 1
2013 QuoizelInc.
Hex Coupling
October2013
Bottom Cap
Socket
Assembly
Finial with Nipple
STEP 2 Install Center Column -
A. Screw the Hex Nut end of the Nipple (L) into the Hex
Coupling on the top center of the Socket Assembly (I)
and tighten until snug.
B. Pass the Center Column (K) over the Nipple (L) and
secure with the Fixture Loop (J). Hand tighten until
snug.
Figure 2
Hex Coupling
Center Column
Socket
Assembly
Nipple with
Hex Nut
Fixture Loop
STEP 3 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 3
Crossbar
Outlet Box
Mounting
Hole
