Warnings and Cautions
1of3
Assembly Instruction Sheet #IS-QF1782
For Styles QF1782BN and QF1782WT 6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. March2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

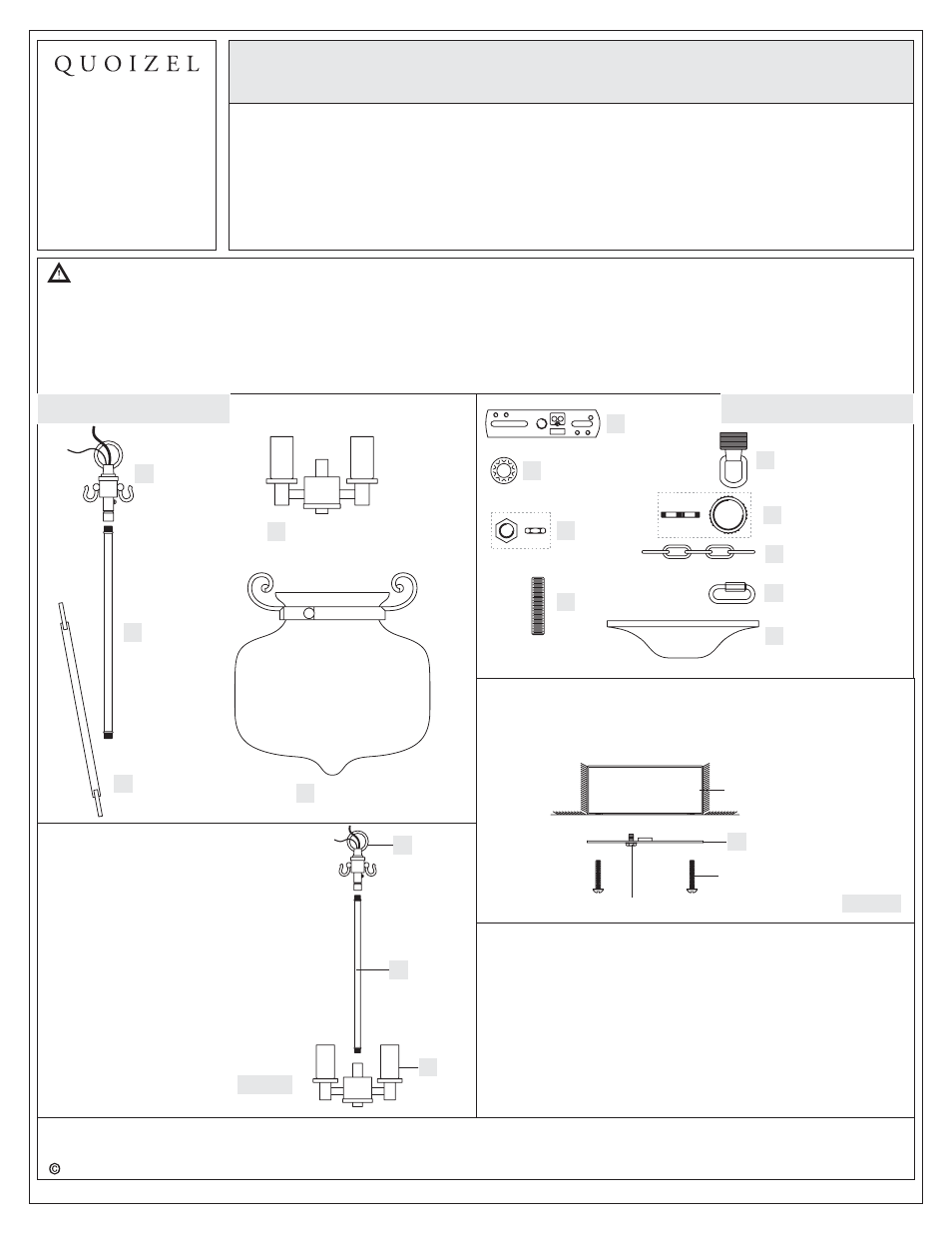

Package Contents
A
D
E
Hardware Contents
Fixture Loop
x 1
Shade
x 1
Socket Assembly
x 1
AA
BB
CC
DD
EE
FF
II
Crossbar
x 1
Lock Washer
x 2
Hex Nut
x 2
Nipple
x 1
Canopy Chain Loop
x 1
Canopy Lock Ring
x 1
Ceiling Canopy
x 1
GG
Fixture Chain
x 1
STEP 1 Install Fixture Loop, Stem and
Socket Assembly together
-
A. Thread one end of the Stem (B) into the
Swivel on the bottom of Fixture Loop (A).
Hand tighten until sung.
B. Thread the bottom end of the Stem (B) into
the coupling on the top center of the Socket
Assembly (D) and hand tighten until snug.
Figure 1
HH
Quick Link
x 2
B
Stem
x 1
A
D
B
STEP 2 Install Crossbar -
A. AA) Attach the Crossbar ( to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included)
Tighten until snug . .
Figure 2
Outlet Box
Outlet Box Screw
(not included)
Green Ground Screw
AA
28mm 12Ga 28mm 12Ga
R
GND
C
Support Arm
x 3
STEP 3 Install Canopy Chain Loop and Nipple -
* Pliers is required for this step.
A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at
least 0.25” from the end. Pass one Lock Washer (BB) over the end
of the Nipple (DD) and thread the Canopy Chain Loop (EE) onto the
Nipple (DD). By using pliers, thread the Hex Nut (CC) against the
Canopy Chain Loop (EE) and hand tighten until snug.
B. Thread another Hex Nut (CC) to the middle of the Nipple (DD).
Place another Lock Washer (BB) over the Nipple (DD) and then
thread the Nipple (DD) into the Crossbar (AA) until the Nipple (DD)
is about 0.375” above the Crossbar (AA).
C. Remove the Canopy Lock Ring (FF) from the Canopy Chain Loop
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(3) Candelabra Base 60W Maximum, Alternate bulb (3) 13W CFL
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
