Assembly Instruction Sheet #IS-QF1191CRC
For Style QF1191CRC
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

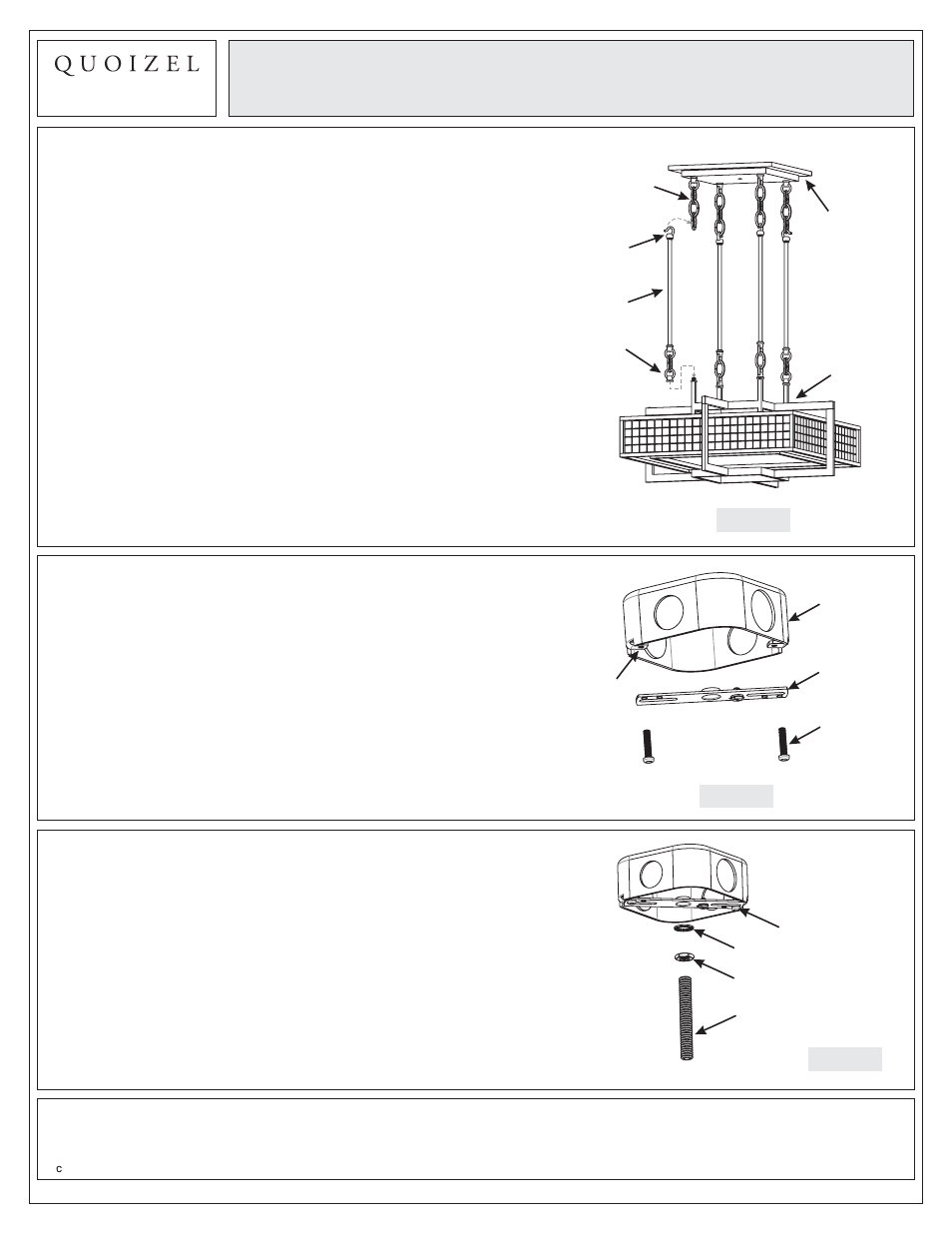

STEP 5
- Attach Support Rods
A. Thread the Small Loops at Support Rods (F) onto the
nipples on the top end of the Socket Assembly (K).
Hand tighten until snug.
B. Attach the Hooks at Support Rods (F) to Chains
underside of the Ceiling Canopy (J).
Figure 5
Chain
Support Rod
Hook
Small Loop
Socket
Assembly
Ceiling
Canopy
STEP 6
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Figure 7
Outlet Box
Screw (not
Supplied)
STEP 7 Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Nipple
Crossbar
Lock Washer
Hex Nut
Figure 6
Crossbar
Outlet Box
Mounting
Hole
