INSTALLATION INSTRUCTIONS

STYLE NUMBER MC843CRC

:

WHITE OR RIBBED

BLACK OR RED WIRE

(

)

FROM HOUSE

GROUND WIRE

GROUND WIRE

FROM HOUSE

FROM FIXTURE

WHITE OR RIBBED

FROM FIXTURE

FROM HOUSE

FROM FIXTURE

BLACK OR SMOOTH

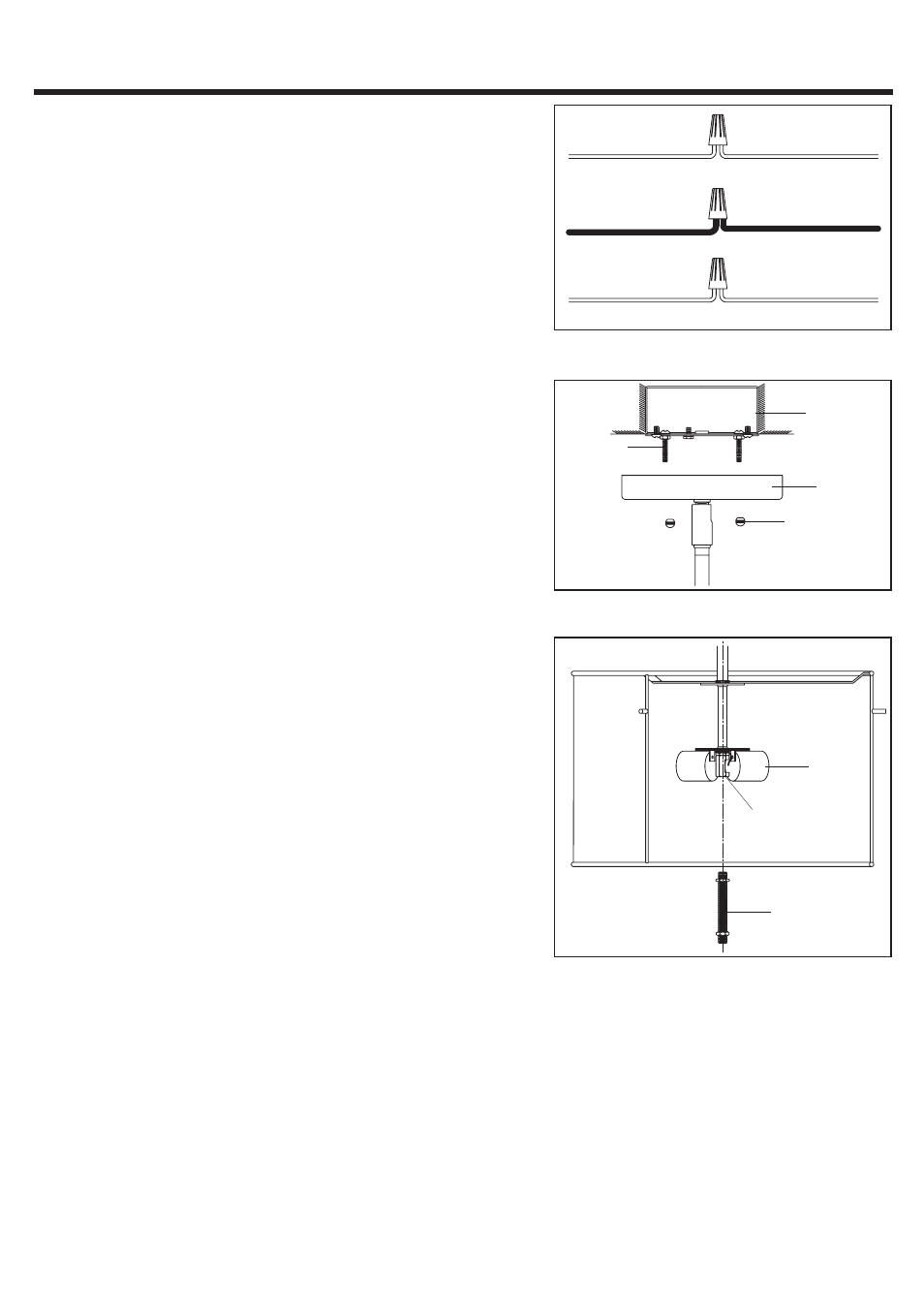

STEP 4

:

*

(

)

.

.

.

(

)

(

)

.

(

)

(

).

.

.

Use Wire Connectors not supplied to connect the

wires

a

Connect the House Ground Wire to the Fixture Ground

Wire.

b

Connect the House White

or Ribbed

Wire to the

Fixture Supply Wire White or Ribbed Side .

c Connect the House Black or Red

Wire to the Fixture

Supply Wire Black or Smooth Side

d Wrap each connection with approved electrical tape and

carefully stuff all of the connected wires into the Outlet
Box

Mounting

Screw

Ceiling
Canopy

STEP 5

:

.

a

Place the Ceiling Canopy onto Outlet Box aligning 2

holes in the Ceiling Canopy with 2 Mounting screws
threaded on the Crossbar and secure it against wall
with Mounting Balls

.

STEP 6

:

a. Screw the Hex Nut end of the Stem into the Hex Coupling

underside of the Socket Cluster. Using pliers, thread the
Hex Nut against the Hex Coupling and tighten until snug.

Outlet Box

Mounting Ball

Socket
Cluster

Stem with
Hex Nut

Hex Coupling
