Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of6
Assembly Instruction Sheet #IS-TFMH1820VB
For Style TFMH1820VB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

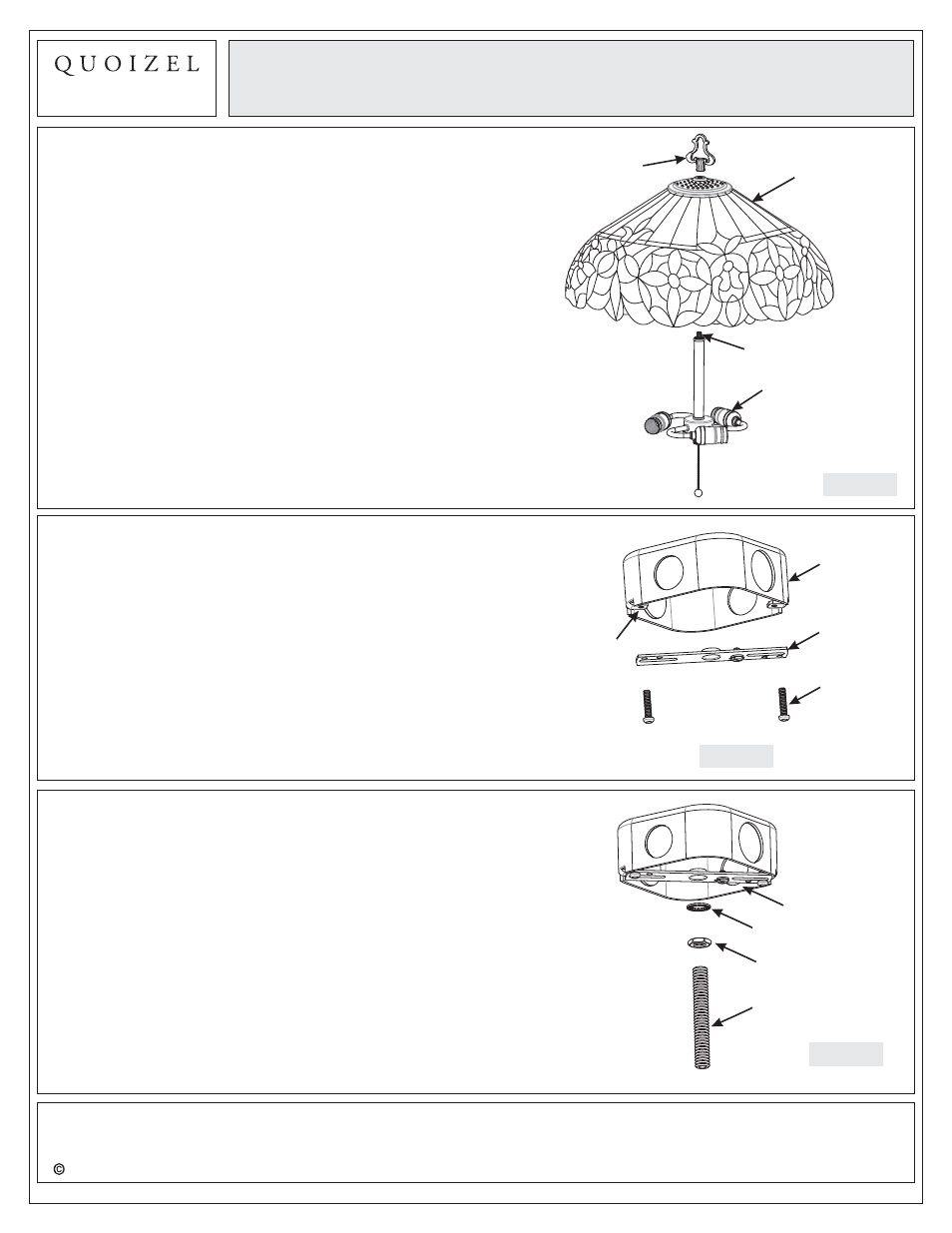

STEP 1
- Attach Fixture Loop to Fixture Body
A. Place the Shade (J) over the Nipple on the top of
Socket Assembly (K), secure by thread the Fixture Loop
(I) onto the Nipple. Hand tighten until snug.
Socket Assembly
Shade
Fixture Loop
Figure 2
STEP 2
- Attach Crossbar to Outlet Box
A. Secure the Corssbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Figure 3
Outlet Box
Screw (not
Supplied)
STEP 3 Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Nipple
Crossbar
Lock Washer
Hex Nut
Figure 2
Crossbar
Outlet Box
Mounting
Hole
Nipple
2014 QuoizelInc. July2014
