Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

3of7

Assembly Instruction Sheet #IS-JLE5004IS

For Style JLE5004IS

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

,

.

.

.

2013 QuoizelInc.

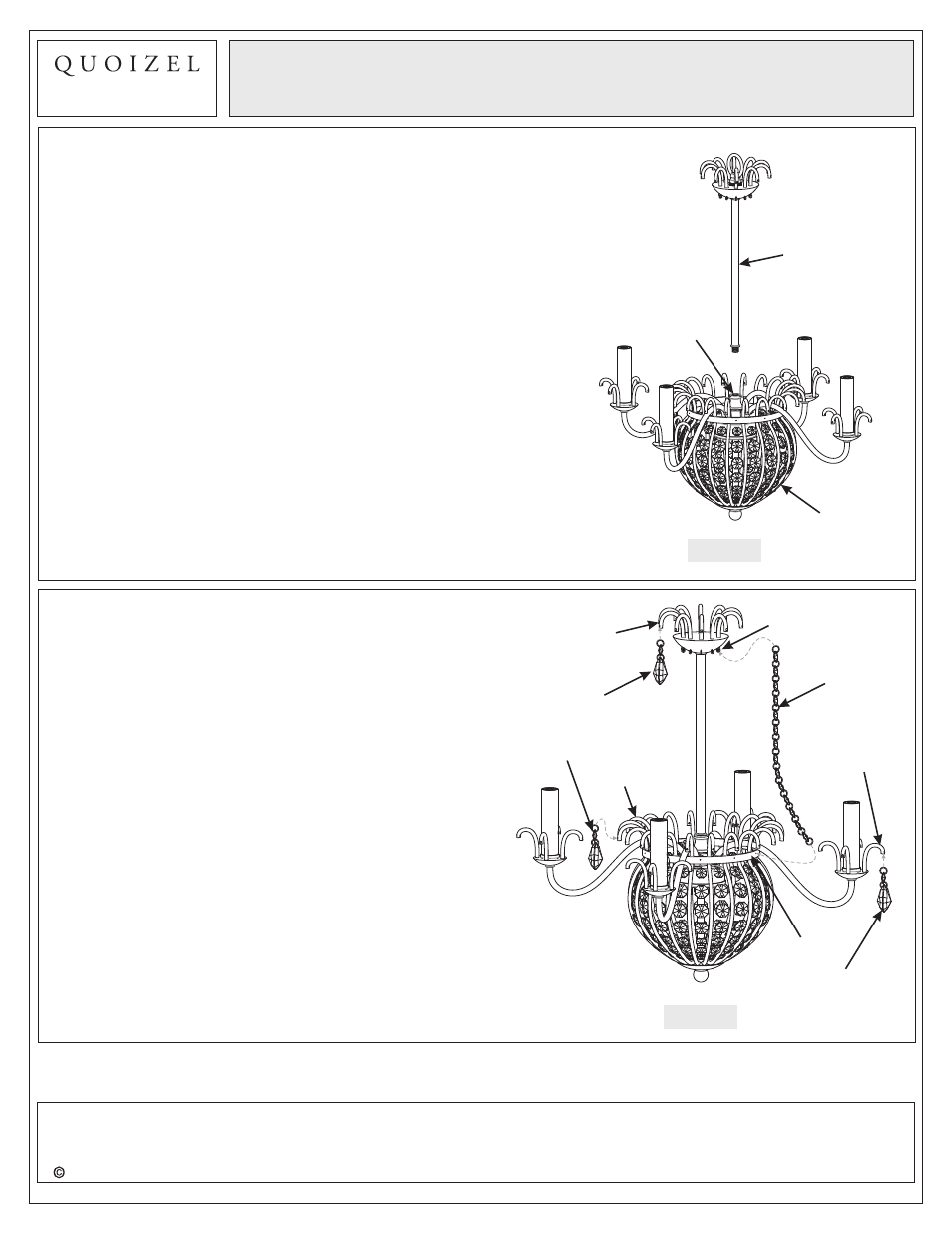

STEP 1

Attach Center Rod Assembly to

Crystal Cage

-

A. Thread the end of the Center Rod Assembly (I) into the

Coupling on the top center of the Crystal Cage (L).
Hand tighten until snug.

Figure 1

STEP 2

Attach Crystal Pendants and Crystal

Chain

-

A. Attach one end of the Crystal Chain (J) onto the

Hangers on the side of the fixture canopy. Attach
another end of the Crystal Chain (J) onto the
corresponding holes on the Ring. Rotate the center rod
a little bit to make sure the Crystal Chain (J) is vertical.

B. Attach the Crystal Pendants (K) onto the Branches

around the sockets, on the top of the center rod and on
the side of the Ring.

Figure 2

Hanger

June2013

Center Rod
Assembly

Coupling

Crystal
Cage

Crystal

Pendant

Crystal Pendant

Branch

Branch

Ring

Crystal Pendant

Branch

Crystal
Chain
