6 OF 6

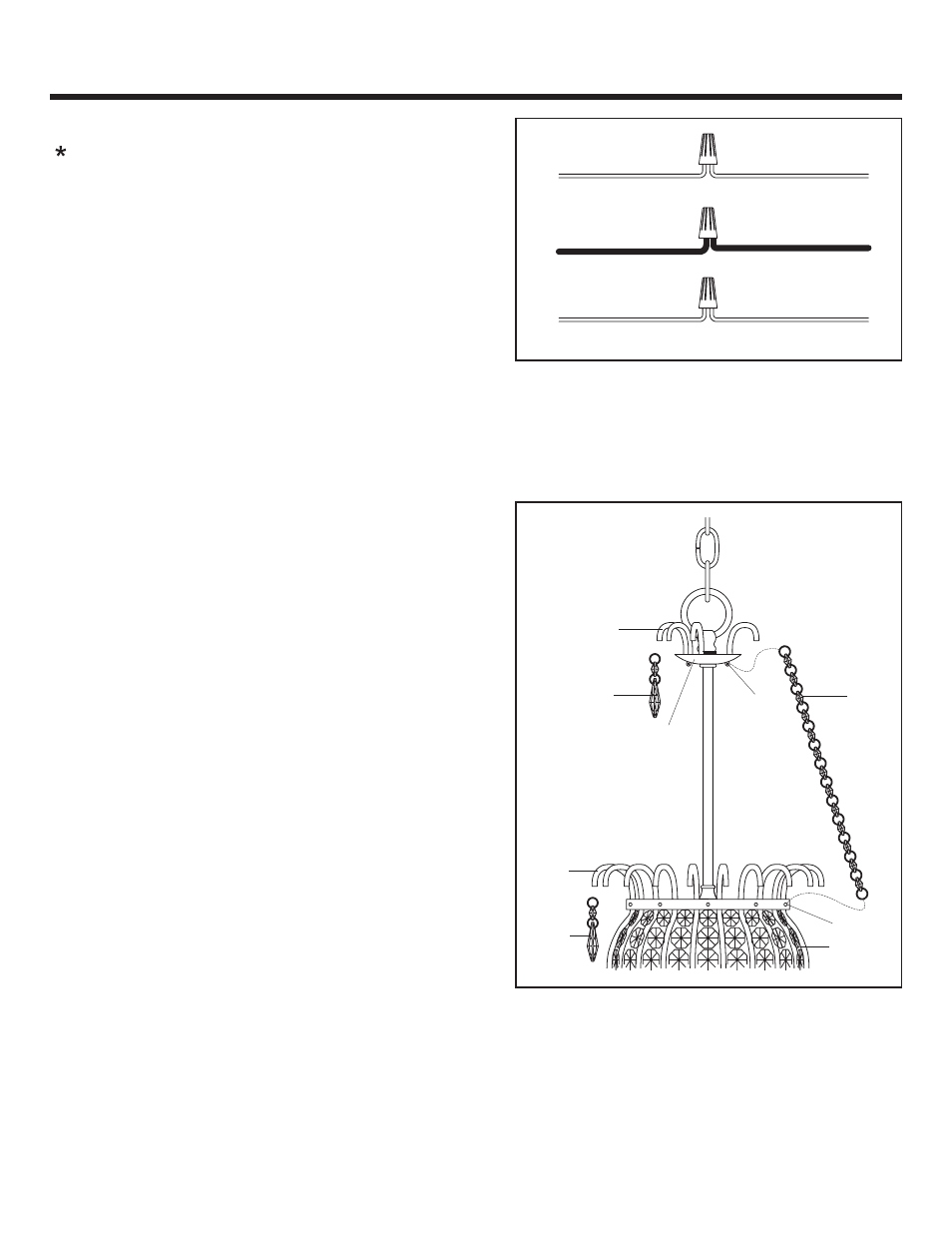

STEP 12:
a. Attach one end of the Side Chain to the Pin Hole on the
side of the Fixture Canopy. Attach the another end of
the Side Chain to the Pin Hole on the side of the Cage.
b. Attach Crystals to the Branches as shown.
INSTALLATION INSTRUCTIONS
STYLE NUMBER: JLE2812IS
Side
Chain
Crystal
Branch
Pin Hole
STEP 10:
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (Black or Smooth Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
WHITE OR RIBBED
BLACK (OR RED) WIRE
GROUND WIRE
WHITE OR RIBBED
BLACK OR SMOOTH
GROUND WIRE
FROM HOUSE
FROM HOUSE
FROM HOUSE
FROM FIXTURE
FROM FIXTURE
FROM FIXTURE
Use Wire Connectors to connect the wires.
Branch
Crystal
Pin Hole
Fixture Canopy
Cage
STEP 11:
a. Install correct bulbs referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
