Assembly Instruction Sheet #IS-TFJD2836ML
For Style TFJD2836ML
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

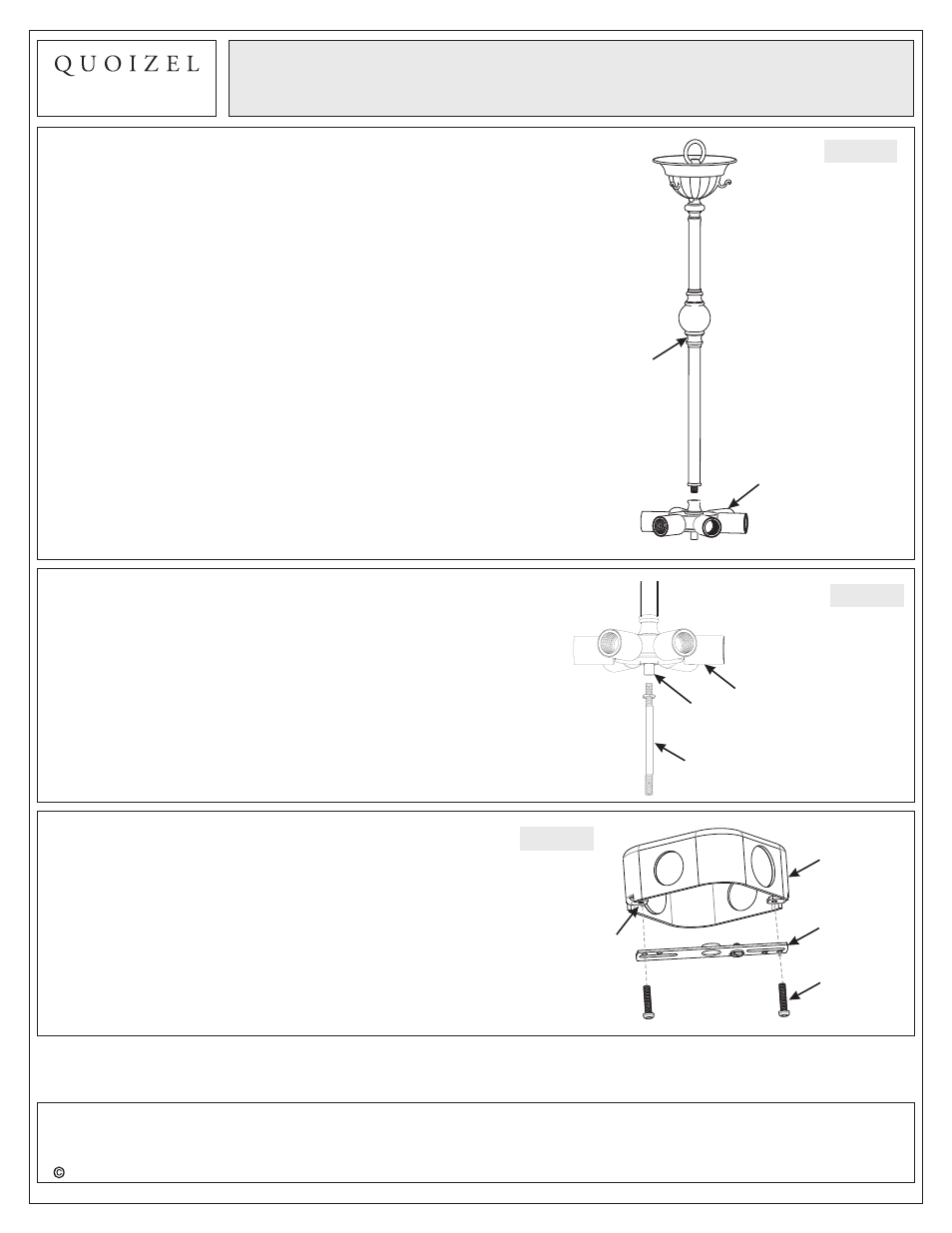

STEP 1 - Attach Center Column to Socket
Assembly
A. Thread Center Column (I) to Socket Assembly (J). Hand
tighten until snug.
Figure 1
2013 QuoizelInc.
STEP 2 - Attach Stem onto the Socket
Assembly
A. Thread (K) onto Coupling on the
bottom of Socket Assembly (J). By using pliers, thread
the Hex Nut against the Coupling and hand tighten until
snug.
Stem 6” L with Hex Nut
Figure 2
Socket Assembly
Center Column
Socket Assembly
Stem 6” L with Hex Nut
Coupling
STEP 3 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 3
Crossbar
Outlet Box
Mounting
Hole
