Quoizel HMP5005WT Hampshire User Manual
Warnings and cautions, Package contents hardware contents

Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(5) Candelabra Base 60W Maximum, Alternate bulb (5) 13W CFL
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
1of3
Assembly Instruction Sheet #IS-HMP5005WT
For Style HMP5005WT
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
February2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Do not touch the bulb with bare hands use a cloth or glove.

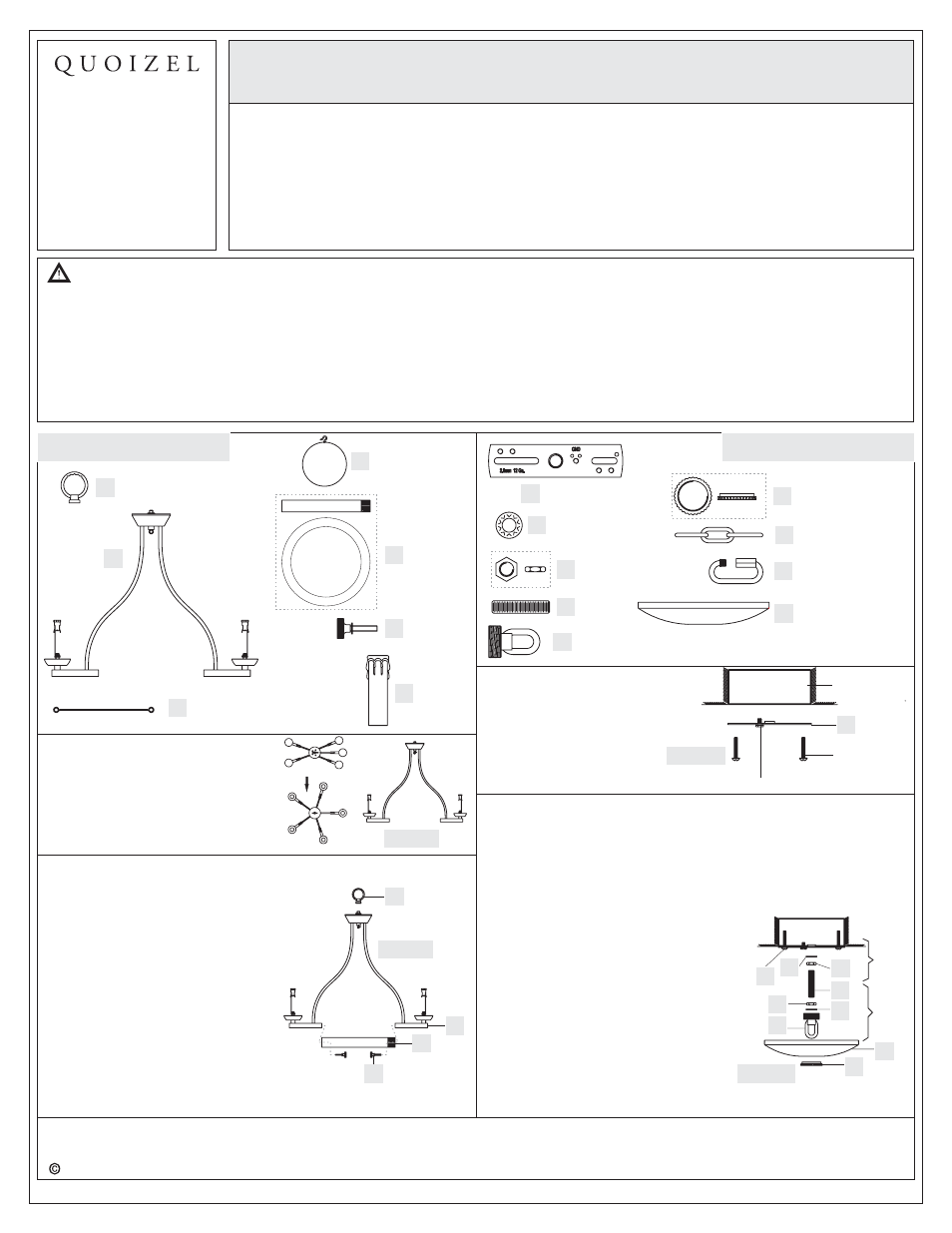

Package Contents
Hardware Contents
AA
BB
CC
DD
EE
FF
II
Crossbar
x 1
Lock Washer
x 2
Hex Nut
x 2
Nipple
x 1
Canopy
Chain Loop
x 1
Canopy Lock Ring
x 1
Ceiling Canopy
x 1
GG
Fixture Chain
x 1
HH
Quick Link
x 2
R
QUOIZEL
STEP 2
Install
and Fixture
Loop
-
Candle
A. Thread Fixture Loop (A) onto the
Fixture Body (B), hand tighten until
sung.
B. Pass the Lock Screw (F) through
Wood Ring (E), secure by threading
Lock Screw (F) into the arm on the
Fixture Body (B). Hand tighten until
sung.
STEP 1
Adjust Fixture Assembly
-
A. Unfold support arms on fixture
assembly to proper locations.
Figure 2
Figure 1
STEP 4
Install Canopy Chain Loop and Nipple
-
* Pliers is required for this step.
A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at
least 0.25” from the end. Pass one Lock Washer (BB) over the end of
the Nipple (DD) and thread the Canopy Chain Loop (EE) onto the
Nipple (DD). By using pliers, thread the Hex Nut (CC) against the
AA
BB
CC
DD
CC
BB
EE
FF
II
Step A
Step B
Figure 4
A
Fixture
Loop
x 1
B
Fixture
Body
x 1
D
Wood Ball
x 1
E
Wood
Ring
x 1
Figure 3
Outlet Box
Outlet Box
Screw (not
included)
Green Ground Screw
AA
STEP 3
Install Crossbar
-
.
.
A. Attach the Crossbar (AA) to
the Outlet Box with the head
of the Green Ground Screw
facing you. Secure it with
Outlet Box Screws (not
included)
Tighten until snug
A
C
Wood
Holder
x 1
F
Lock
Screw
x 5
G
Candle
Cover
x 5
Canopy Chain Loop (EE) and hand
tighten until snug.
B. Thread another Hex Nut (CC) to the
middle of the Nipple (DD). Place another
Lock Washer (BB) over the Nipple (DD)
and then thread the Nipple (DD) into the
Crossbar (AA) until the Nipple (DD) is
about 0.375” above the Crossbar (AA).
C. Remove the Canopy Lock Ring (FF) from
the Canopy Chain Loop (EE). Place the
Ceiling Canopy (II) over the Canopy
Chain Loop (EE) against the ceiling to
determine the correct position of the
Nipple (DD). Thread the Canopy Lock
Ring onto the Canopy Chain Loop (EE).
B
F
E
