Assembly Instruction Sheet #IS-FE2816WT
For Style FE2816WT
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 QuoizelInc.
3of5
October2012

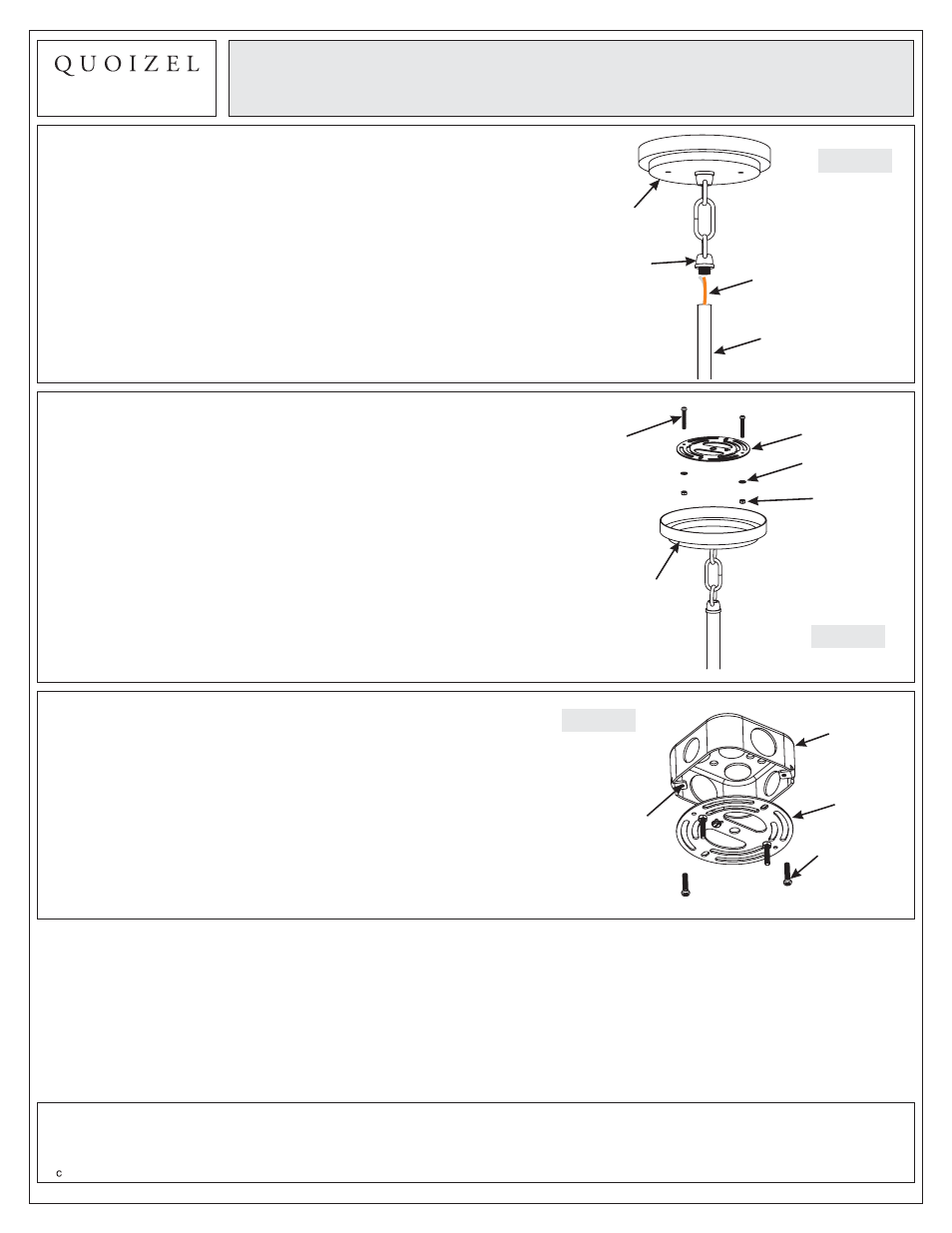

STEP 3
- Attach Ceiling Canopy with Loop to
Rod
A. Pass Supply Wire and Ground Wire through the Loop and
the Ceiling Canopy. Thread the Loop underside of the
Ceiling Canopy onto the Upper Rod and hand tighten until
snug.
Upper Loop
Supply Wire and
Ground Wire
Figure 3
Ceiling Canopy
Figure 4
Crossbar
Mounting
Screw
Lock Washer
Hex Nut
Ceiling Canopy
STEP 4
- Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
Loop
STEP 5
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Figure 5
Crossbar
Outlet Box
Outlet Box
Screw
Mounting
Hole
