Quoizel DW1824C Downtown - Manual (Page 4)

4 of 4
WHITE OR RIBBED
BLACK OR RED WIRE ( )
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH

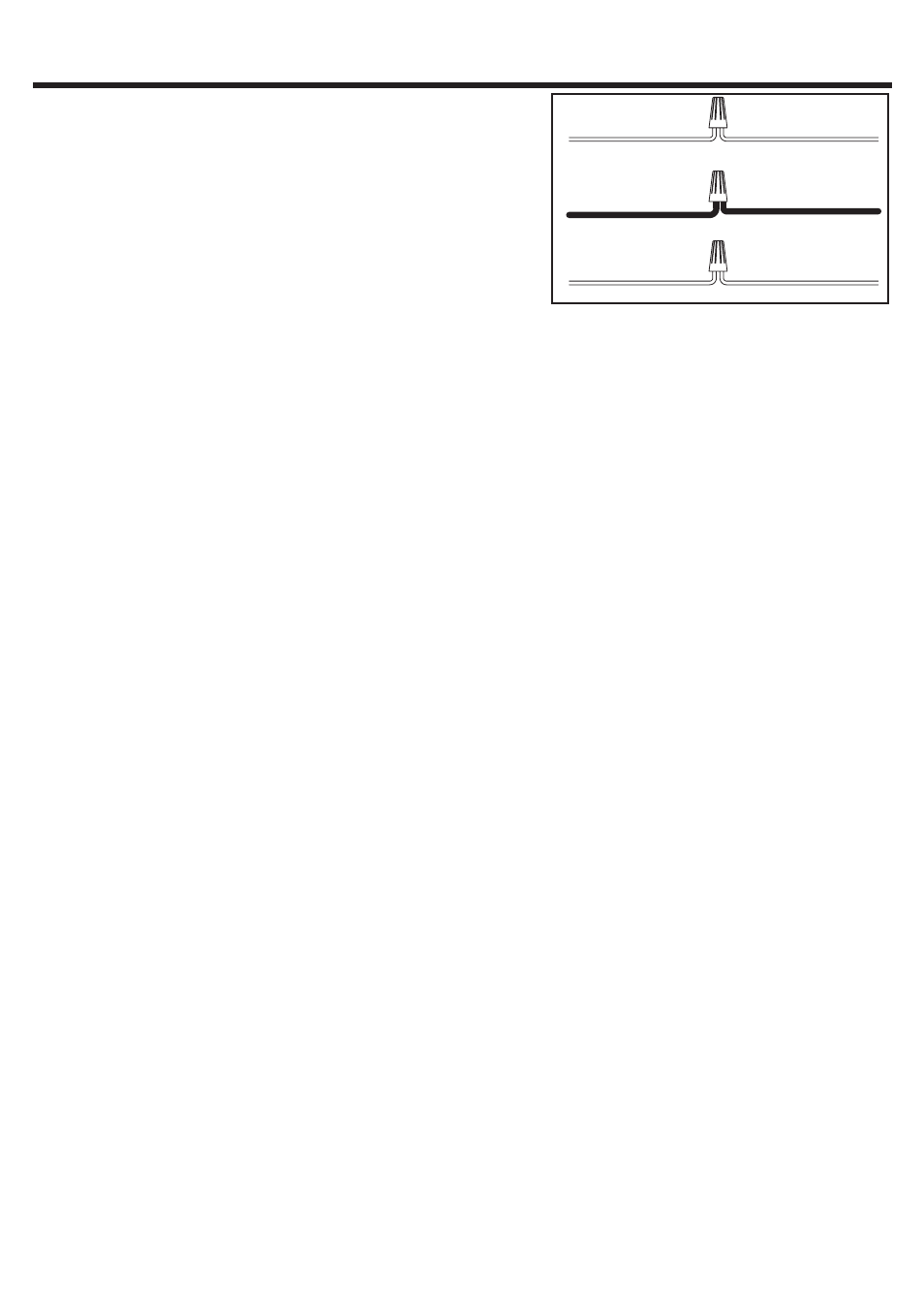

STEP 7 :
* ( )
.
.
. ( )
( )
. ( )
( ).
.
.
Use Wire Connectors not supplied to connect the
wires
a Connect the House Ground Wire to the Fixture Ground
Wire.
b Connect the House White or Ribbed Wire to the
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box
INSTALLATION INSTRUCTIONS
STYLE NUMBER DW1824C :
STEP 8
:
. . .
a Install the correct Bulbs referring to fixture markings and or labels for maximum wattage
electricity
. / .
Your installation is completed now Restore Retain this sheet for future reference
