Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(6) Candelabra Base 60W Maximum, Alternate bulb (6) 13W CFL
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
1of3
Assembly Instruction Sheet #IS-BRG5206WT
For Style BRG5206WT 6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. March2014

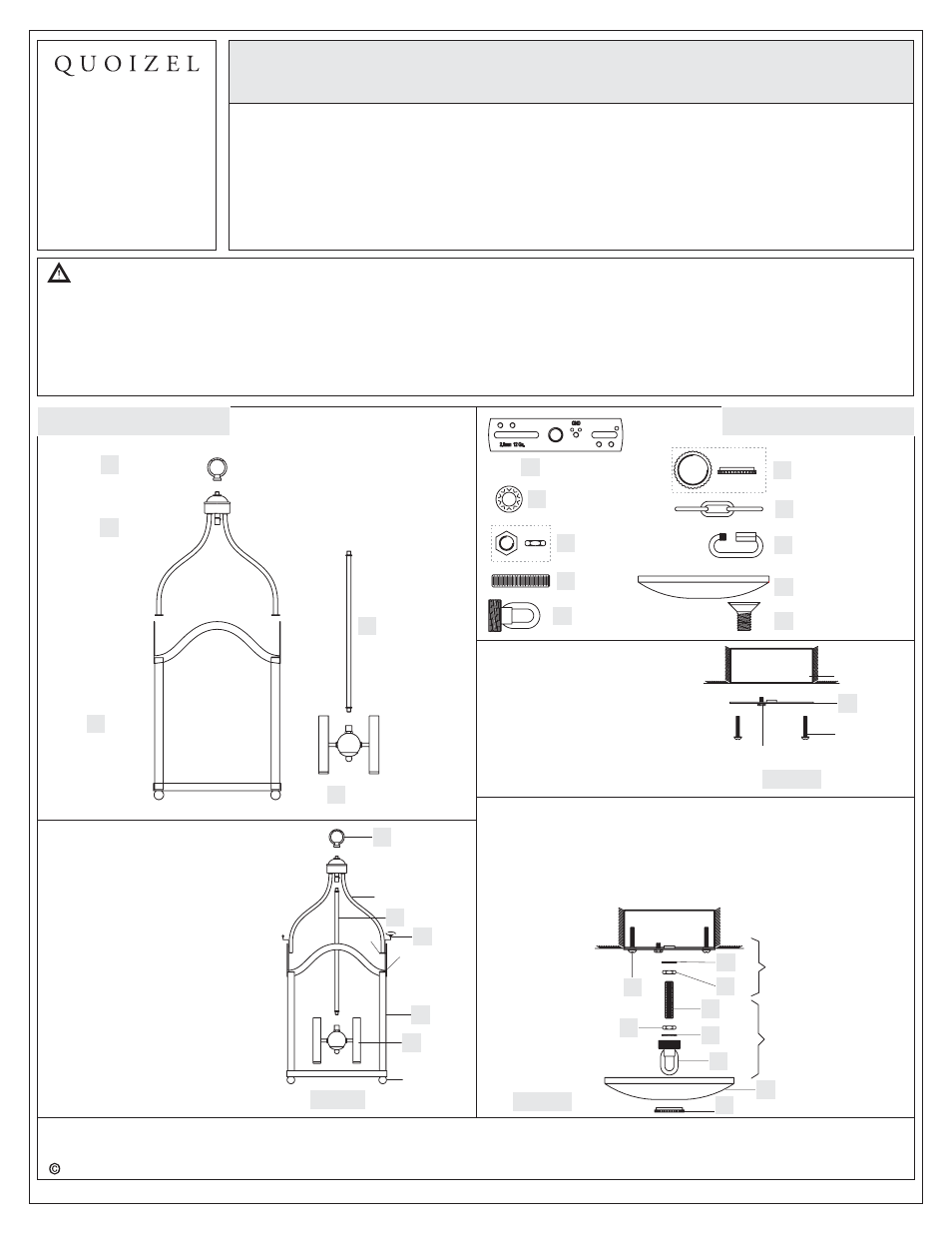

Package Contents Hardware Contents
AA
BB
CC
DD
EE
FF
II
JJ
Crossbar
x 1
Lock Washer
x 2
Hex Nut
x 2
Nipple
x 1
Canopy
Chain Loop
x 1
Canopy Lock Ring
x 1
Ceiling Canopy
x 1
Lock Screw
x 4
GG
Fixture Chain
x 1
HH
Quick Link
x 2
R
QUOIZEL
STEP 3 Install Canopy Chain Loop and Nipple -
* Pliers is required for this step.
A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at
least 0.25” from the end. Pass one Lock Washer (BB) over the end of
the Nipple (DD) and thread the Canopy Chain Loop (EE) onto the
Nipple (DD). By using pliers, thread the Hex Nut (CC) against the
AA
BB
CC
DD
CC
BB
EE
FF
II
Step A
Step B
Figure 3
A
Fixture Loop
x 1
B
Arm
Assembly
x 1
D
Center
Stem
x 1
E
Socket Assembly
x 1
C
Frame
x 1
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
STEP 1 Install Frame, Socket
Assembly and Fixture
Loop together
-
A. Unfold the arms on the
to proper locations.
B. Assemble the Fixture Loop (A), the
Arm Assembly (B), the Center Stem
(D) and the Socket Assembly (E)
together, hand tighten until sung.
C. Align the holes on the Tabs at the
ends of the Arms to the Mounting
Holes on the top edge of the Frame
(C). Secure by threading the Lock
Screws (JJ) into the Mounting
Holes. Tighten until sung.
Arm
Assembly (B)
D Check all parts are tighten together
while removing cage from package.
Tighten Lock balls on the bottom of
the cage if any parts are loosen.
.
Figure 1
A
C
D
E
Arm
Tab
Mounting
Hole
JJ
Figure 2
Outlet Box
Outlet Box
Screw (not
included)
Green Ground Screw
AA
STEP 2 Install Crossbar -
.
.
A. Attach the Crossbar (AA) to the
Outlet Box with the head of the
Green Ground Screw facing you.
Secure it with Outlet Box Screws
(not included)
Tighten until
snug
Lock Balls
