Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of6
Assembly Instruction Sheet #IS-BDR5006IB
For Style BDR5006IB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc.

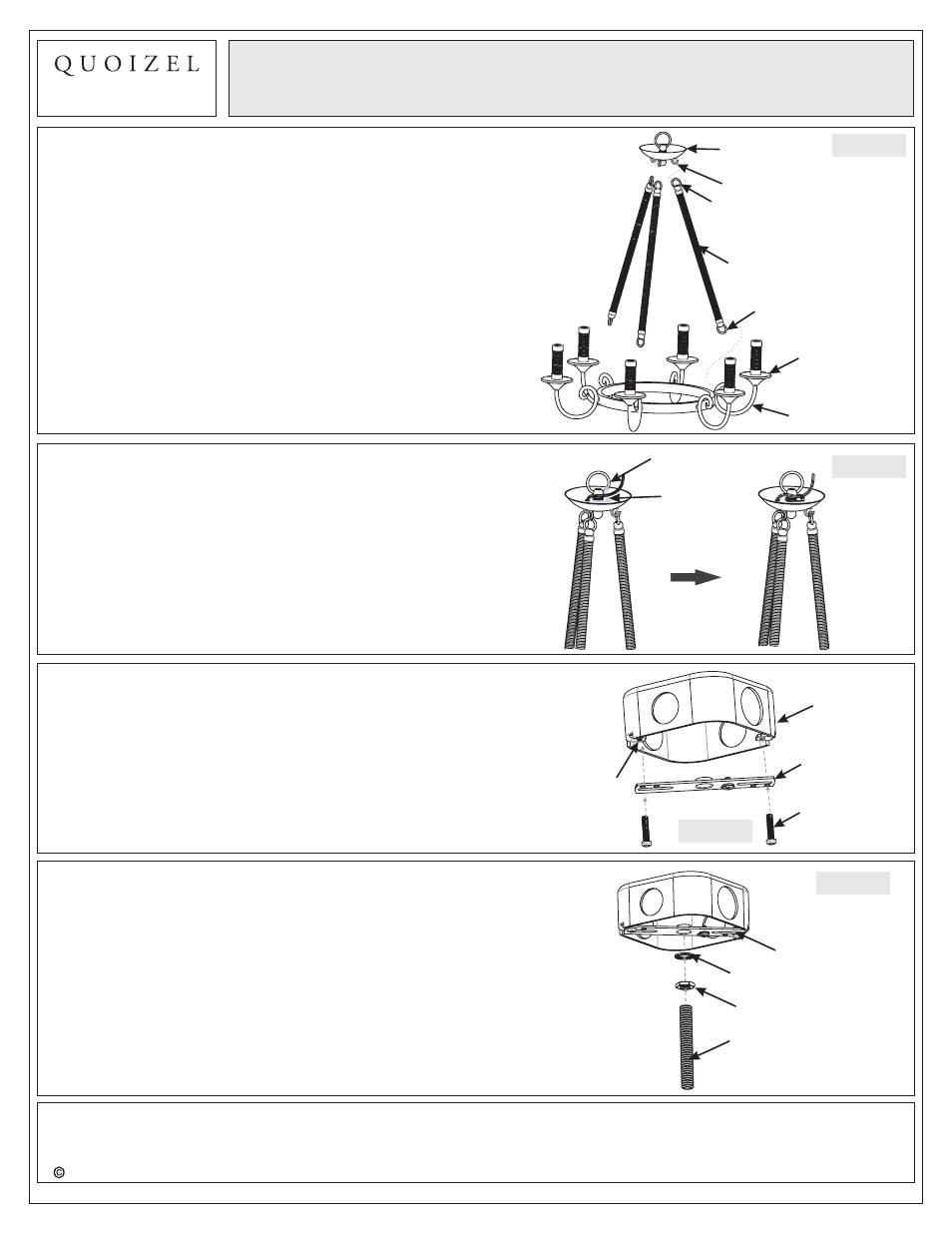

STEP 1
- Attach Fixture Loop Assembly to
Fixture Body
A. Place one Loop on the Side Arm (J) to the Hook on the
side of Fixture Loop Assembly (I), the other Loop on the
Side Arm (J) hook on the Support Arm on the side of
Fixture Body (K).
Figure 1
Fixture Loop
Assembly
Fixture
Body
November2013
Support Arm
Side Arm
Loop
Loop
Hook
STEP 2
- Adjust the wire length
A. Remove the Screw to open the Wire Clasp. adjust the
length of Wire at a proper length. Secure by loading
back Screw.
Figure 2
Wire
Clasp
Screw
STEP 3
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 3
Crossbar
Outlet Box
Mounting
Hole
Figure 4 STEP 4 Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Nipple
Crossbar
Lock Washer
Hex Nut
