Quoizel TFAV2823VB Ava User Manual
Assembly / installation instructions

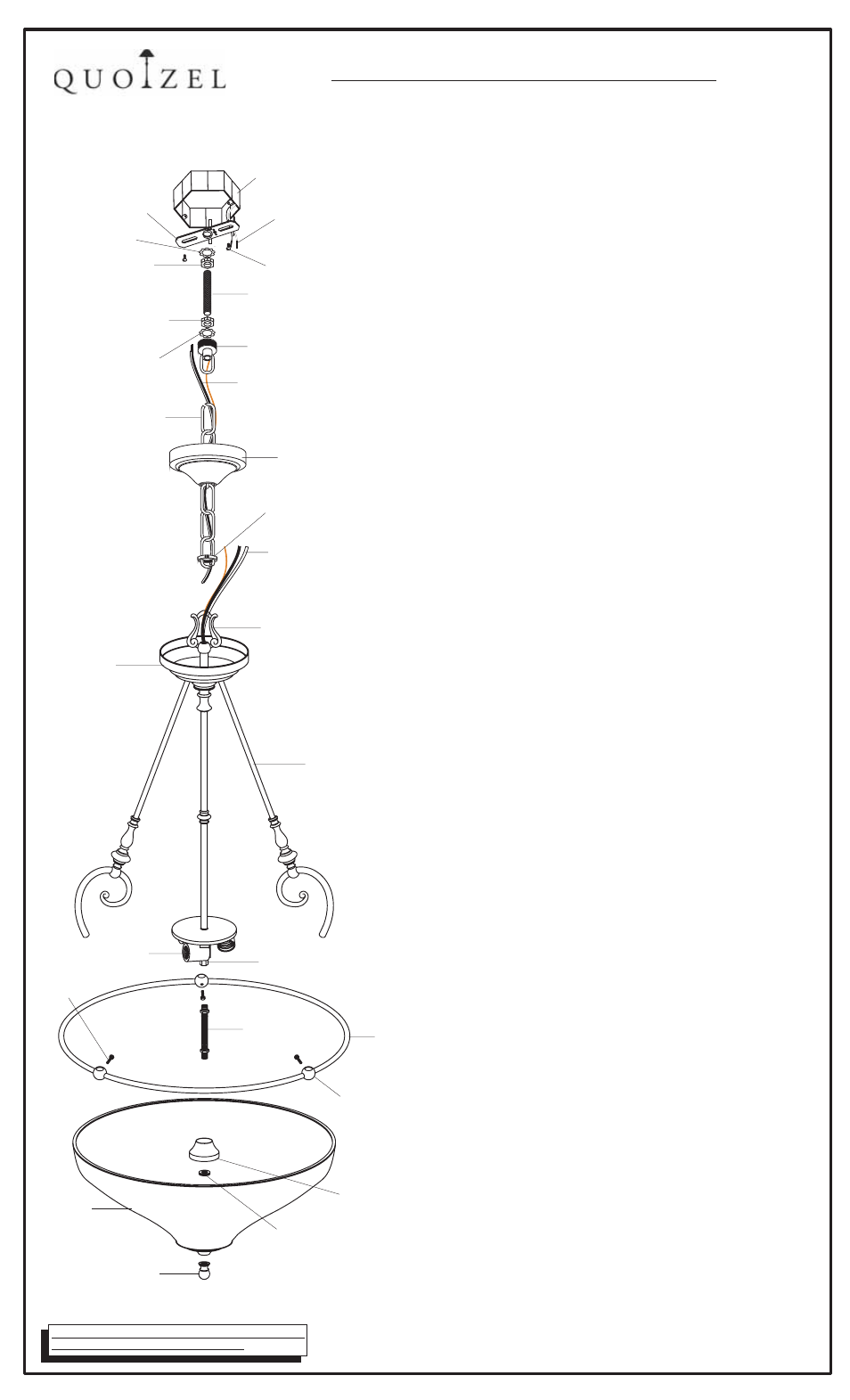

OUTLET BOX
HOUSE SUPPLY and
GROUND WIRES
OUTLET BOX SCREWS
not supplied
(
)
CROSSBAR
LOCK WASHER A
LOCK NUT A
NIPPLE
LOCK NUT B
LOCK WASHER B
CANOPY CHAIN LOOP
FIXTURE SUPPLY
and GROUND WIRE
FIXTURE CHAIN
CEILING CANOPY
CANOPY LOCK RING
FIXTURE SUPPLY
and GROUND WIRE
FIXTURE LOOP
FIXTURE
CANOPY
DECORATIVE
ARM
SOCKET
CLUSTER
HEX COUPLING
KNOB
LOCK
SCREW
NIPPLE with
HEX NUTS
FINIAL
SHADE
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
ASSEMBLY / INSTALLATION INSTRUCTIONS
RING
IS TFAV2823
Revised 2008 04 17
-
-
-
CAP
KNURLED
NUT
1
Before beginning the installation
carefully unpack and
identify all parts
referring to the illustration.
2
Turn power to the installation point OFF at circuit
breaker
3 Unfold DECORATIVE PARTS to proper location
Lift
RING upward and match the end of DECORATIVE
PART into the hole on the KNOB
Secure them together
by threading LOCK SCREW into mounting holes on
KNOB
Hand tighten until snug
4 Locate NIPPLE with HEX NUTS
Thread one end of
NIPPLE into HEX COUPLING underside of SOCKET
CLUSTER
Using plier
thread HEX NUT against HEX
COUPLING and hand tighten until snug
Adjust another
HEX NUT on the end of NIPPLE to proper location for
rest components
Place CAP over the end of NIPPLE
and secure with KNURLED NUT
Hand tighten until
snug
5 Lift SHADE upward and make the hole on the bottom of
it over the end of NIPPLE
Thread FINIAL onto end of
NIPPLE and hand tighten until snug to secure it
6 Fasten the CROSSBAR to the OUTLET BOX with 2)
OUTLET BOX SCREWS (not supplied). Proceed to
thread LOCK NUT A and LOCK WASHER A onto the
top end of NIPPLE. Thread NIPPLE into the center of
CROSSBAR. Locate the LOCK NUT B onto the bottom
end of the NIPPLE. Tighten LOCK NUT A against
CROSSBAR with plier until snug.
7. Locate the FIXTURE CHAIN and determine desired
hanging height of fixture. Adjust chain by removing links
if needed. Please note that depending on chain material
thickness, you might be required to use chain pliers to
spread links open. Proceed to attach one end of chain
to FIXTURE LOOP, attached to top of fixture. Pass the
fixture wires through FIXTURE CHAIN alternating links.
Proceed to pass the fixture wires through the following
mounting components in this order : 1) CANOPY LOCK
RING; 2) CEILING CANOPY 3 CANOPY CHAIN LOOP
4
LOCK WASHER B and LOCK NUT B
5
NIPPLE
6
LOCK NUT A and LOCK WASHER A
8.
(2 people recommended for the remaining steps)
Position the fixture under the ceiling mounted outlet
box. Pass LOCK WASHER B over the NIPPLE. Thread
CANOPY CHAIN LOOP onto NIPPLE. Thread LOCK
NUT B down the NIPPLE, against the CANOPY CHAIN
LOOP and snug with pliers. Pass the wires through the
NIPPLE. Take up wire slack and trim wires so that
approx. 6” will remain inside outlet box. Proceed to
attach the top of the FIXTURE CHAIN to the bottom of
the CANOPY CHAIN LOOP.
Using wire connectors (not supplied) connect the
HOUSE GROUND WIRE to the FIXTURE GROUND
WIRE
connect the HOUSE WHITE WIRE to the
FIXTURE SUPPLY WIRE (WHITE or RIBBED SIDE);
connect the HOUSE BLACK (or RED) WIRE to the
FIXTURE SUPPLY WIRE (BLACK or SMOOTH SIDE).
Wrap each connection with approved electrical tape.
9. With the proper connections made, proceed to push the
CEILING CANOPY upward over the OUTLET BOX. Be
sure that all wires are carefully tucked into the OUTLET
BOX cavity. Secure canopy against ceiling by threading
CANOPY LOCK RING onto the CANOPY LOOP. Tighten
until snug.
10 Install bulbs referring to fixture markings and or labels
for maximum wattage
11. Restore power to the installation point ON. Retain this
sheet for future reference.
.
.
.
.
,
,
.
.
.
.
.
.
.
.
,
.
.
.
.
.
.
.
(
; )
;
)
; )
; )
.
;
.
/
.
MAKING THE CONNECTIONS:
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
