Quoizel TFAS2817VA Asheville User Manual
Page 4
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
4of7

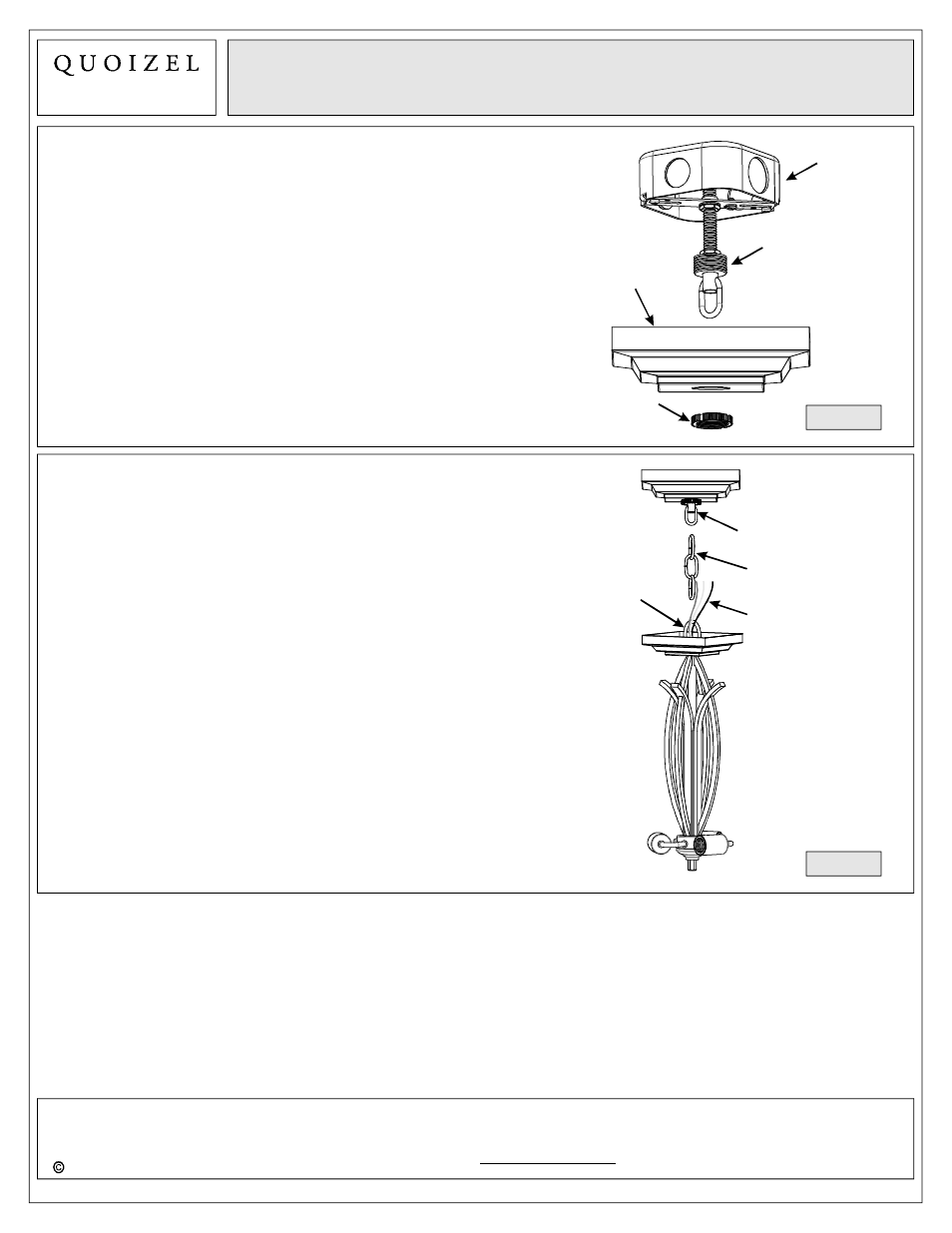

STEP 4
Assemble Ceiling Canopy
-
A. Push the Ceiling Canopy (H) upward over the Outlet
Box. Thread the Canopy Lock Ring (F) onto the Canopy
Chain Loop (E) and tighten until snug to secure the
Ceiling Canopy (H).
Figure 5
Ceiling Canopy
STEP 5
Attach Fixture Chain to Canopy
Chain Loop and Fixture Loop
-
A. Adjust the Fixture Chain (G) to your desired length by
removing the links if needed. You may need to use plier
to open the chain links. If so, put a cloth over the chain
to protect the finish from the pliers.
B. Attach one end of the Fixture Chain (G) onto the
Canopy Chain Loop (E) and then attach the other end of
the Fixture Chain (G) onto the Fixture Loop on the top of
the fixture.
Fixture Loop
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
Figure 4
Canopy Chian Loop
Outlet Box
Canopy
Lock Ring
Assembly Instruction Sheet #IS-TFAS2817VA
For Style TFAS2817VA
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
2014 QuoizelInc.
May2014
