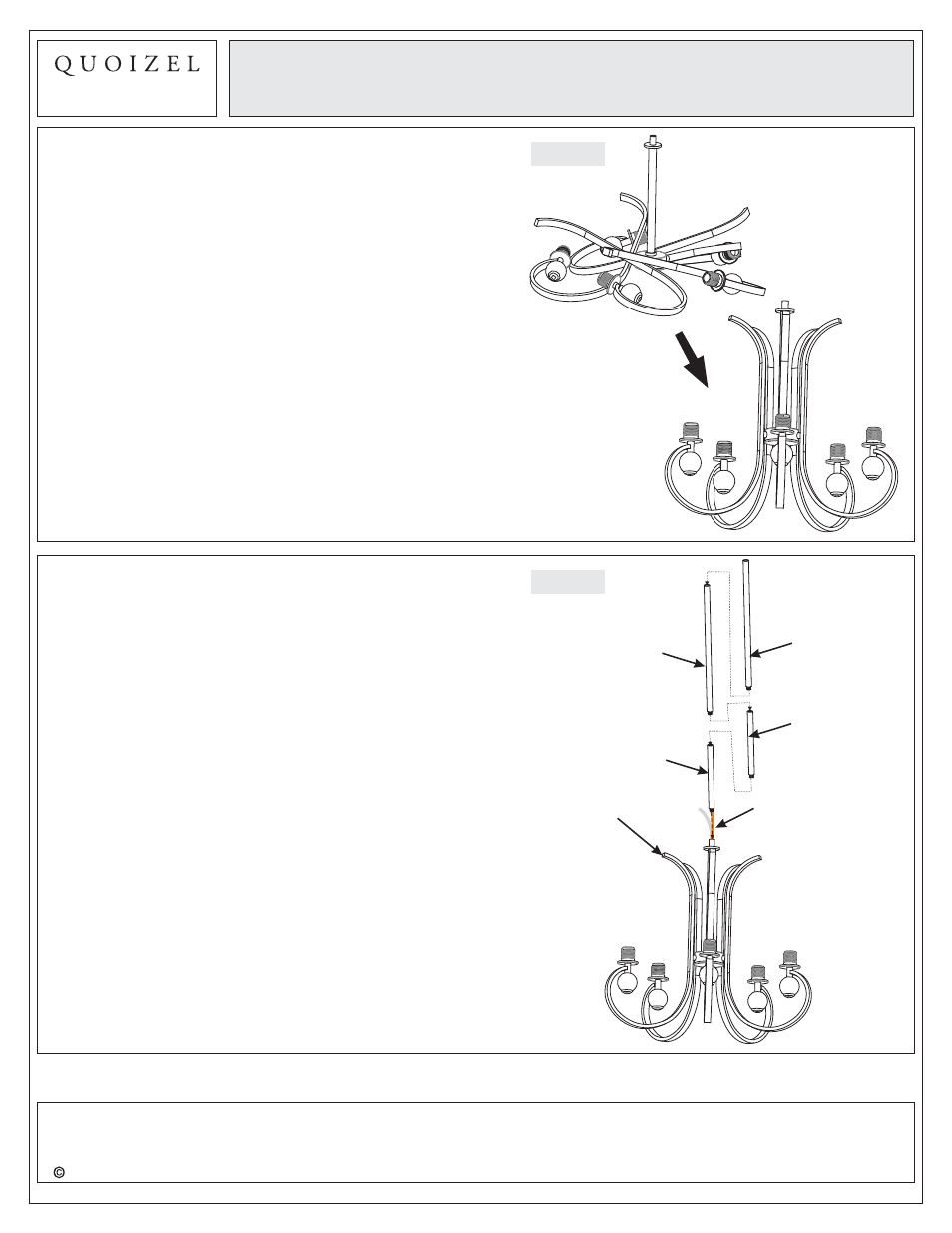

Assembly Instruction Sheet #IS-ARH5005C
For Style ARH5005C
STEP 1 Adjust Fixture Assembly
-
A. Unfold support arms on fixture assembly to proper
locations.
Figure 2
STEP 2 Assemble Rods
-
A. Determine the Rods (G/H) to be assembled to the Socket
Assembly (I) according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (G/H) and then thread the chosen Rods (G/H) and
the Socket Assembly (I) together. Hand tighten until snug.
Socket
Assembly
Supply Wire and
Ground Wire
January2014
12” Rod
6” Rod
6” Rod
12” Rod
