Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
4of4

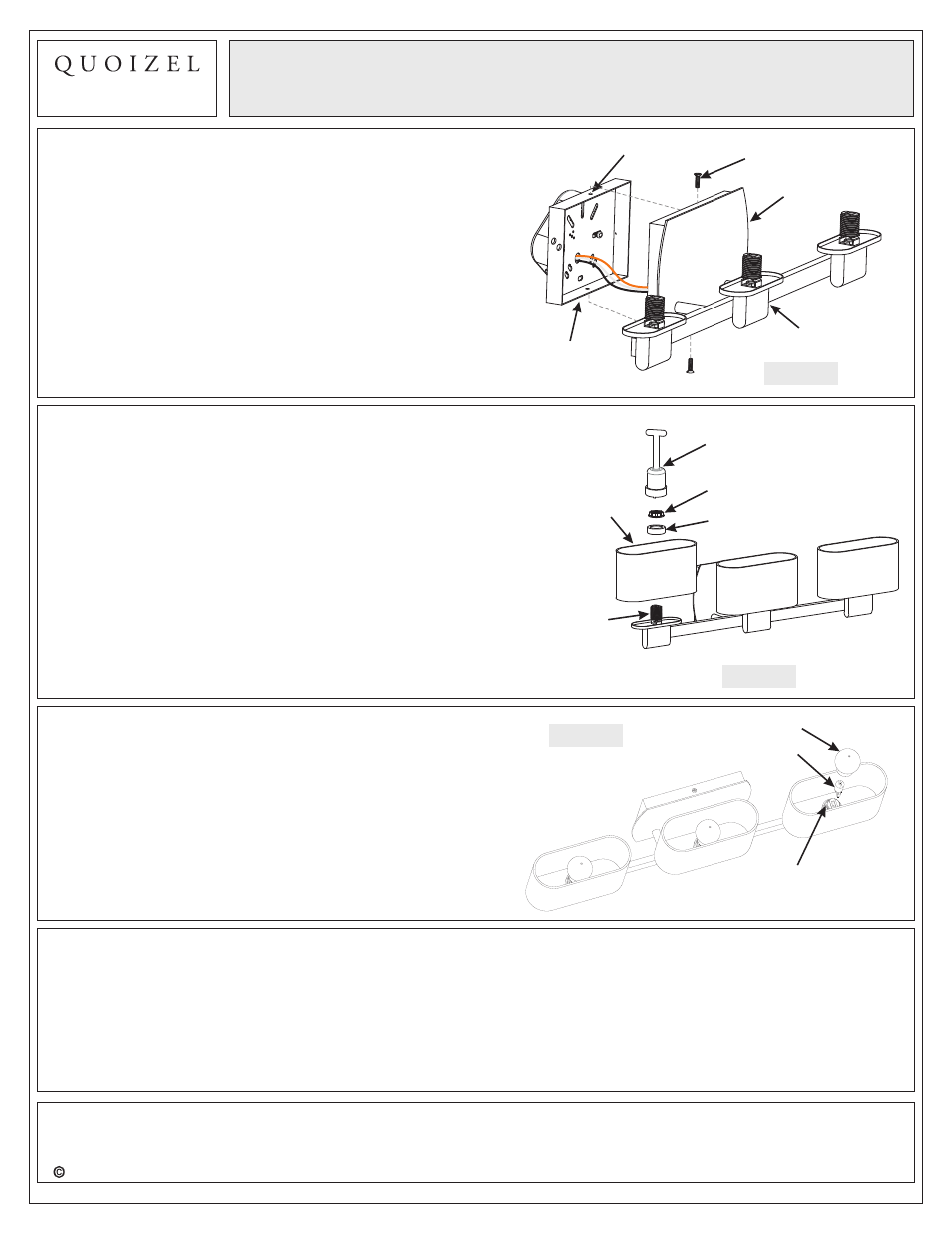

STEP 3 - Attach Fixture Body to Inner
Backplate
A. Place the backplate of the Fixture Body (H) onto the
Inner Backplate (A). Line up holes on both of them.
Thread Mounting Screws (B) into the mounting holes on
the Inner Backplate (A) and hand tighten until snug to
secure them.
Figure 4
Figure 5
STEP 4 - Attach Shade to Socket
A. Place the Shade (E) and the Steel Collar (D) over the
Socket as shown. By using the Socket Collar Tool (I),
thread the Socket Collar (C) onto the Socket to secure
the Shade (E). Hand tighten until snug.
Figure 6
STEP 5 Install Bulb and Bulb Shield -
A. This fixture uses Frosted G9 Halogen Bulbs. Maximum
60 watts (supplied).
B. Insert bulb and seat properly into place.
C. Screw Bulb Shield (F) onto the Socket and hand tighten
until snug.
Do not touch the bulb with bare hands use
a cloth or glove.
Your fixture is now assembled and ready to use. Enjoy!
IMPORTANT:
Assembly Instruction Sheet #IS-UPTA8603C
For Style UPTA8603C
Mounting Hole
Inner
Backplate
Mounting Screw
Backplate
Socket
Shade
Socket Collar
Bulb Shield
G9 Bulb
Socket
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
CAUTION FOR BULB REPLACING
A. When replace bulb, turn off power and allow lamp to cool. For safety purpose, wear gloves and eye protection.
B. If bulb is scratched or cracked, DO NOT use the lamp to avoid breakage during use or installation.
C. Use only in fixtures rated for lamps wattage and voltage.
D. Lamp operate under high pressure generating intense heat. Prevent contact with liquid and combustible
materials.
Fixture Body
Steel Collar
2013 QuoizelInc. July2013
Socket Collar Tool
