Quoizel PY8603AN Perry - Manual

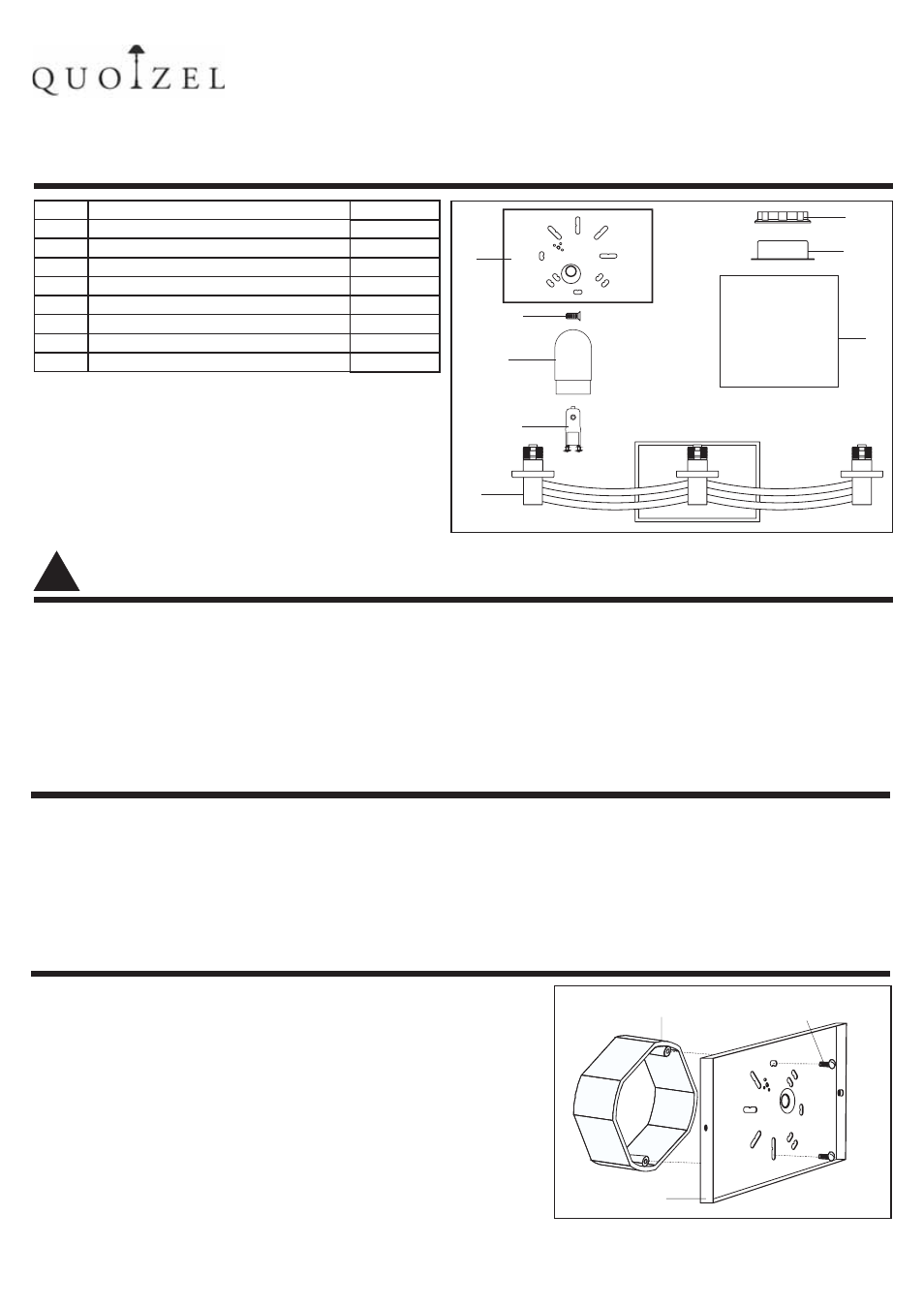

PACKAGE CONTENTS
INSTRUCTION SHEET IS PY8603
-
STYLE NUMBER PY8603AN
:
ISSUED 08-2009 REVISED 2011-06-02
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Part
A
E
C
B
D
Description
Socket Collar
Inner Backplate
Lock Screw
Bulb
Bulb Shield
Quantity
2pcs
3pcs
3pcs
3pcs
3pcs
3pcs
1pc
1pc
A
B
WARNINGS AND CAUTIONS
!
PREPARATION
INSTALLATION INSTRUCTIONS
WARNING:
● Before beginning the installation, turn off electricity at the circuit breaker box or the main fuse box by
switching off the circuit breaker or removing the fuse.
CAUTIONS:
● These instructions are provided for your safety. It is very important that they are read completely before the
installation of your fixture. We strongly recommend that a professional electrician install the fixture.
● Disconnect fixture from the power source before replacing the bulb(s), making sure the bulb(s) had sufficient
time to cool down. DO NOT subject the lamp to any shock while lit as shattering of lamp may result.
● Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement part.
● Estimated Assembly Time: 20
30 minutes
● Tools Required for Assembly (not included): Flathead screwdriver Phillips screwdriver, pliers, electrical
tape, wire cutters, safety glasses &3, 75 Watt Frosted JCD G9 Bulbs.
● Helpful Tools (not included): Wire Strippers.
-
,
,
1 OF 2
STEP 1:
a Secure the Inner Backplate to the Outlet Box with Outlet Box
Screws as shown Tighten until snug.
.
.
Outlet Box
Inner Backplate
Outlet Box
Screw
E
C
D
F
G
H
F
G
H
Steel Collar
Shade
Fixture Body
