Assembly Instruction Sheet #IS-PRN8604C
For Style PRN8604C
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
April2014

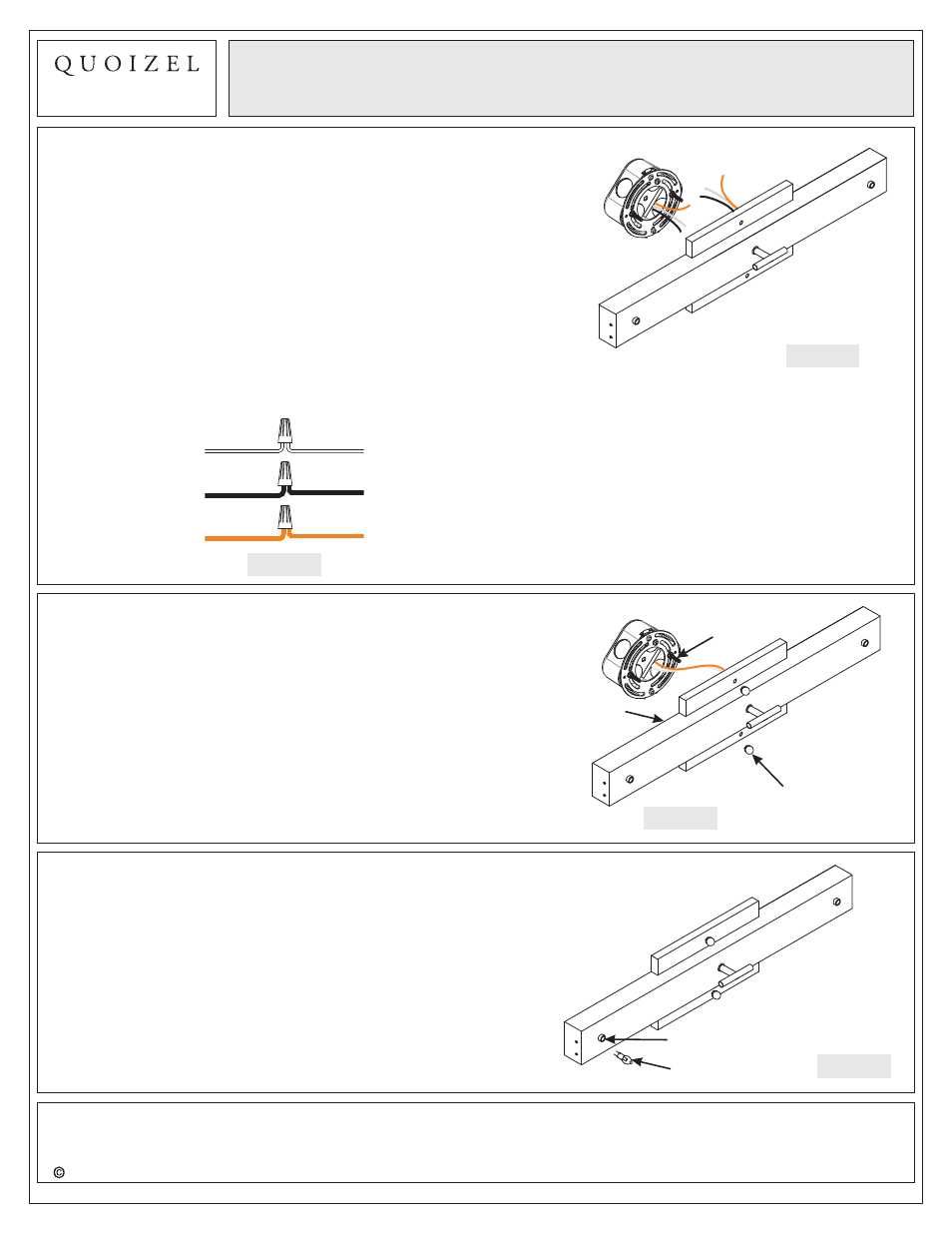

STEP 3 Make Wire Connections
-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
Figure 4
Figure 5
STEP 4
- Attach Backplate to Mounting
Screw
A. Place the Backplate over the Mounting Screws (B) and
secure with Mounting Balls (E). Hand tighten until
snug.
Mounting
Screw
Mounting Ball
Backplate
Figure 3
Figure 6
STEP 5 Install Bulb
-
A. This fixture uses Clear G4 Xenon Bulbs. Maximum 20
watts.
B. Insert bulb and seat properly into place.
Do not touch the bulb with bare hands
use a cloth or glove.
IMPORTANT:
G4 Bulb
Socket
