Specifications, Ordering code, Mechanical characteristics – ORBIT FR Medium Power Hollow Absorbers User Manual
Page 2: Reflectivity characteristics

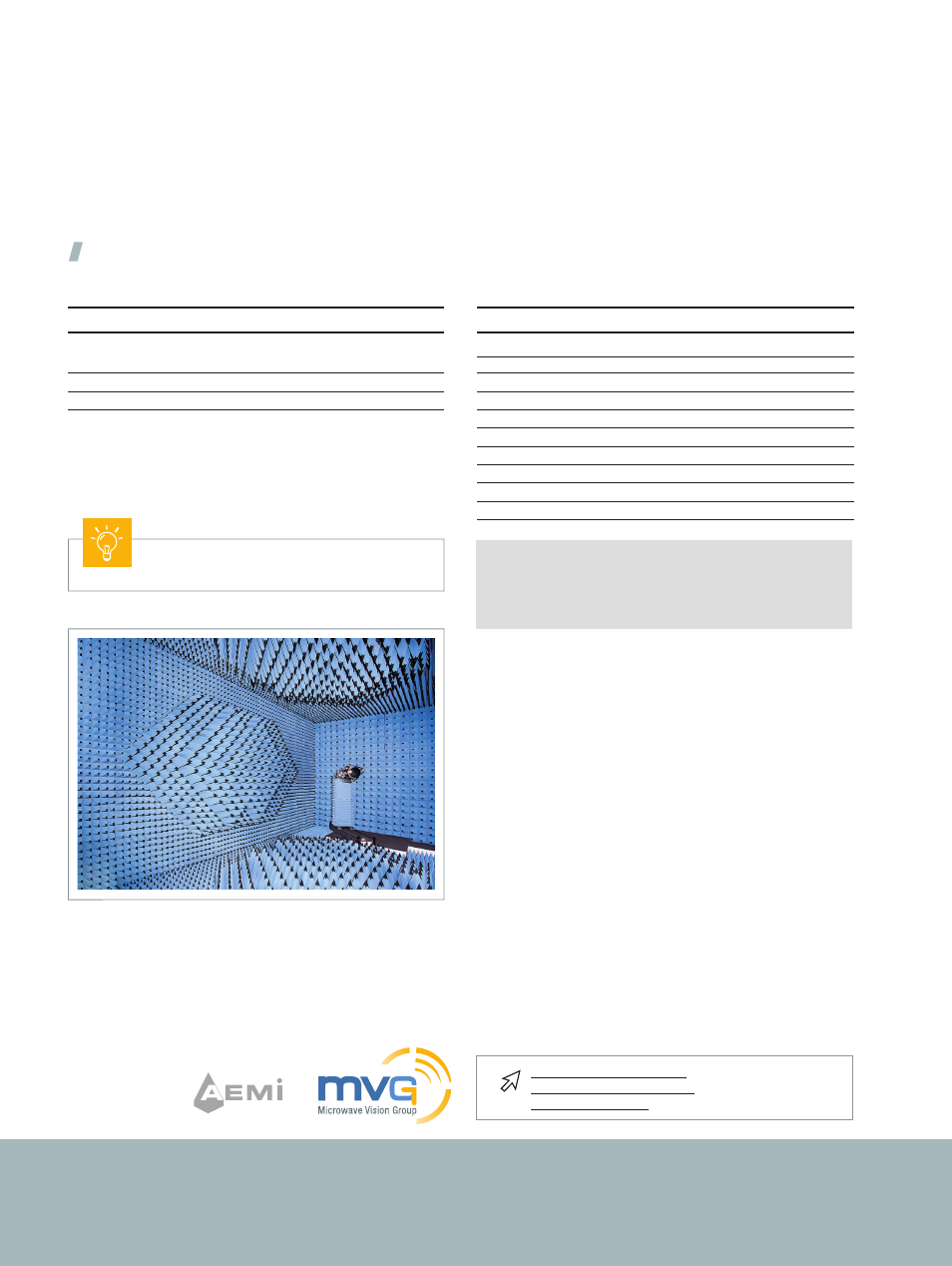

The AEP-MPX is a broadband, hollow pyramidal shaped absorber. It is made of carbon-loaded polyurethane
foam and is light weight due to the hollow construction. This shape and construction allows for
excellent impedance matching and minimized reflection. The AEP-36 MPX to AEP-60 MPX absorbers are a
conventional pyramid with a square base of uniform thickness, tapered to a point.
© MVG 2013
AEP MPX Datasheet
Product specifications and descriptions in this document are subject to change without notice.
Actual products may differ in appearance from images shown.
www.microwavevision.com
[email protected]
[email protected]
Mechanical Characteristics
AEP-36
AEP-48
AEP-60
Height
in
36
48
60
cm
91.4
122
152.4
Pyramids
Per block
4
4
1
Power
kW/m²
1.5
1.5
1.5
Reflectivity Characteristics
REFLECTIVITY
AEP-36
AEP-48
AEP-60
@ 70 MHz
25
@ 125 MHz
15
28
35
@ 250 MHz
32
35
45
@ 500 MHz
37
40
45
@ 1 GHz
42
45
50
@ 3 GHz
50
50
65
@ 6 GHz
50
50
65
@ 10 GHz
50
50
65
@ 15 GHz
50
50
65
@ 18 GHz
50
50
65
Specifications
ORDERING CODE
AEP-XX MPX, where XX designates absorber height
in inches
Increase durability & lifespan by adding
our rubberized coating!
