Planar Antennas For Integrated
Applications
>
➊ TECHNICAL PERFORMANCE
• High gain
• Power handling up to 20 W
• Linear or circular polarization
➋ DESIGN
• Optimized WR42 microstrip transition allows
the connection of electronic parts with
a standard fl ange
• Can be easily integrated in existing systems
> Main use:
• General transmitting and receiving
applications at 24 GHz
• Radar doppler and radio link point-
to-point
> Delivered document:
• Conformity certifi cate (measured VSWR)
> Related standard:
• IEC-68-2
> Related services:
• Maintenance and customization
PROFESSIONAL APPLICATION
Electrical characteristics
Part Number PA 2400-A PA 2400-B PA 2400-C PA 2400CP-A
Frequency range 24.025 – 24.225 GHz 24.025 – 24.225 GHz 24.025 – 24.225 GHz 24.025 – 24.225 GHz
Gain 26 dBi 23 dBi 20 dBi 21 dBic
VSWR 2.0:1 2.0:1 2.0:1 2.0:1
CW power 20 W 20 W 20 W 20 W
Type Patch array Patch array Patch array Patch array

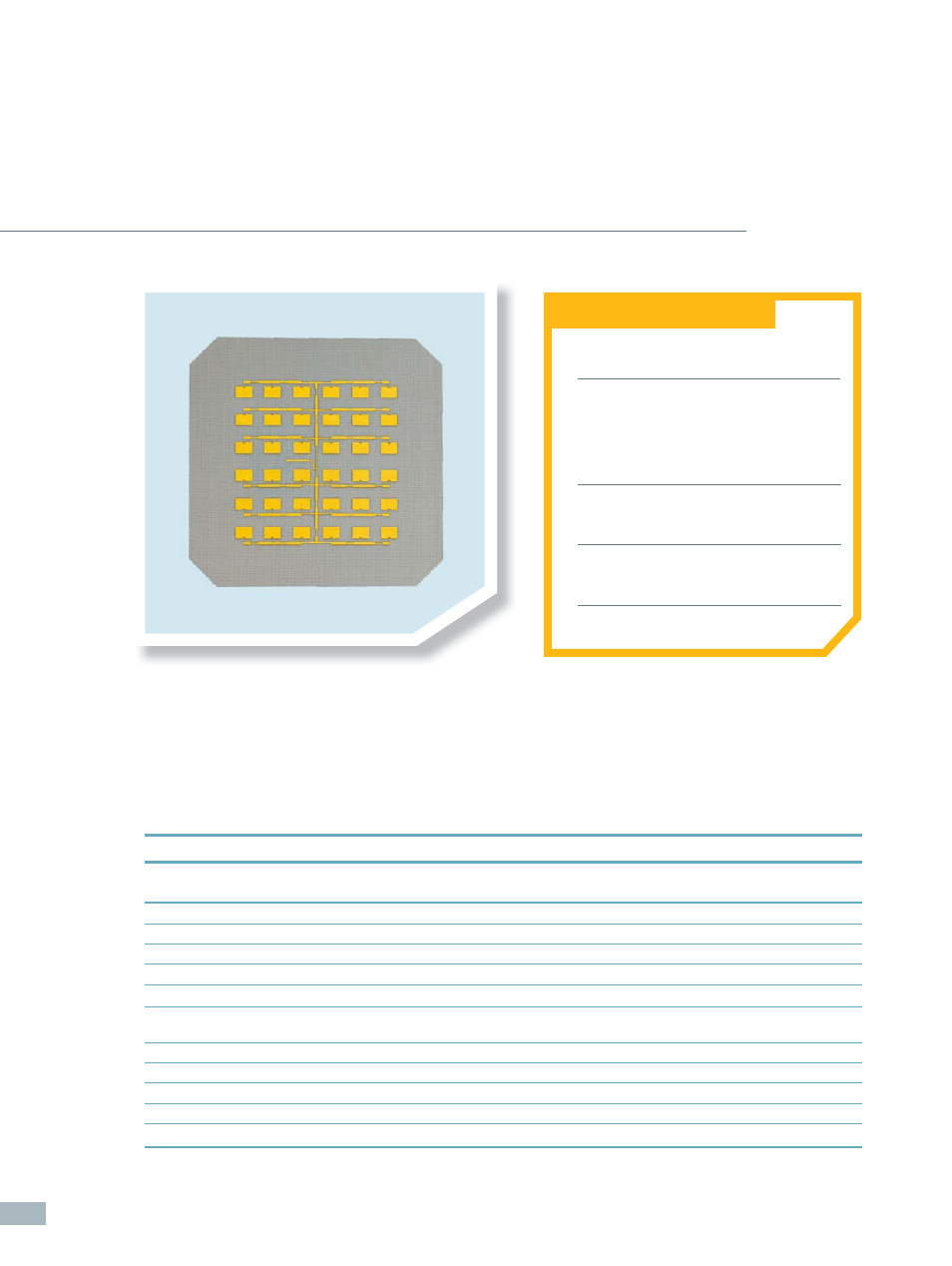

Patch array antenna
Impedance
50 Ohms 50 Ohms 50 Ohms 50 Ohms
Polarization Linear Linear Linear RHCP
Radiation pattern Directive Directive Directive Directive
Side lobes H plan < -20 dB < -20 dB < -16 dB < -16 dB
Side lobes V plan < -25 dB < -25 dB < -18 dB < -18 dB
Beamwidth at 3 dB 8° x 8° 13° x 8° 13° x 13° 11° x 11°
