Electric sleeve dipoles, Measur ement antennas

15
>
Measur
ement antennas
Electric Sleeve Dipoles
>
>
Main use:
•
Gain reference
•
Effi ciency reference
•
Chamber refl ectivity evaluation: directivity,
cross polarization and radiation pattern
>
Delivered documents:
•
Typical performance data (TYMEDA
TM
)
•
Measured return loss data
>
Surface treatment:
•
Blue paint
>
Related certifi cation:
•
CTIA low gain antenna measurement
>
Related services:
•
Calibration and maintenance
•
Customization
➊
TECHNICAL PERFORMANCE
•
Low loss and high effi ciency
•
Azimuth pattern symmetry is within ± 0.1 dB
variation as specifi ed by the CTIA for ripple
testing according to the OTA Test Plan
➋
DESIGN
•
End-fed sleeve dipole technology, minimizing
cable and feed point interaction
•
Innovative choke design further reduces cable
interaction by attenuating the natural return
currents from the dipole
•
Azimuth pattern symmetry thanks to entirely
symmetrical
design
➌
REPEATABILITY
•
Stiff and robust mechanical design
•
Minimum use of dielectric material
•
Precision machined
•
High reliability connector
REFERENCE ANTENNAS

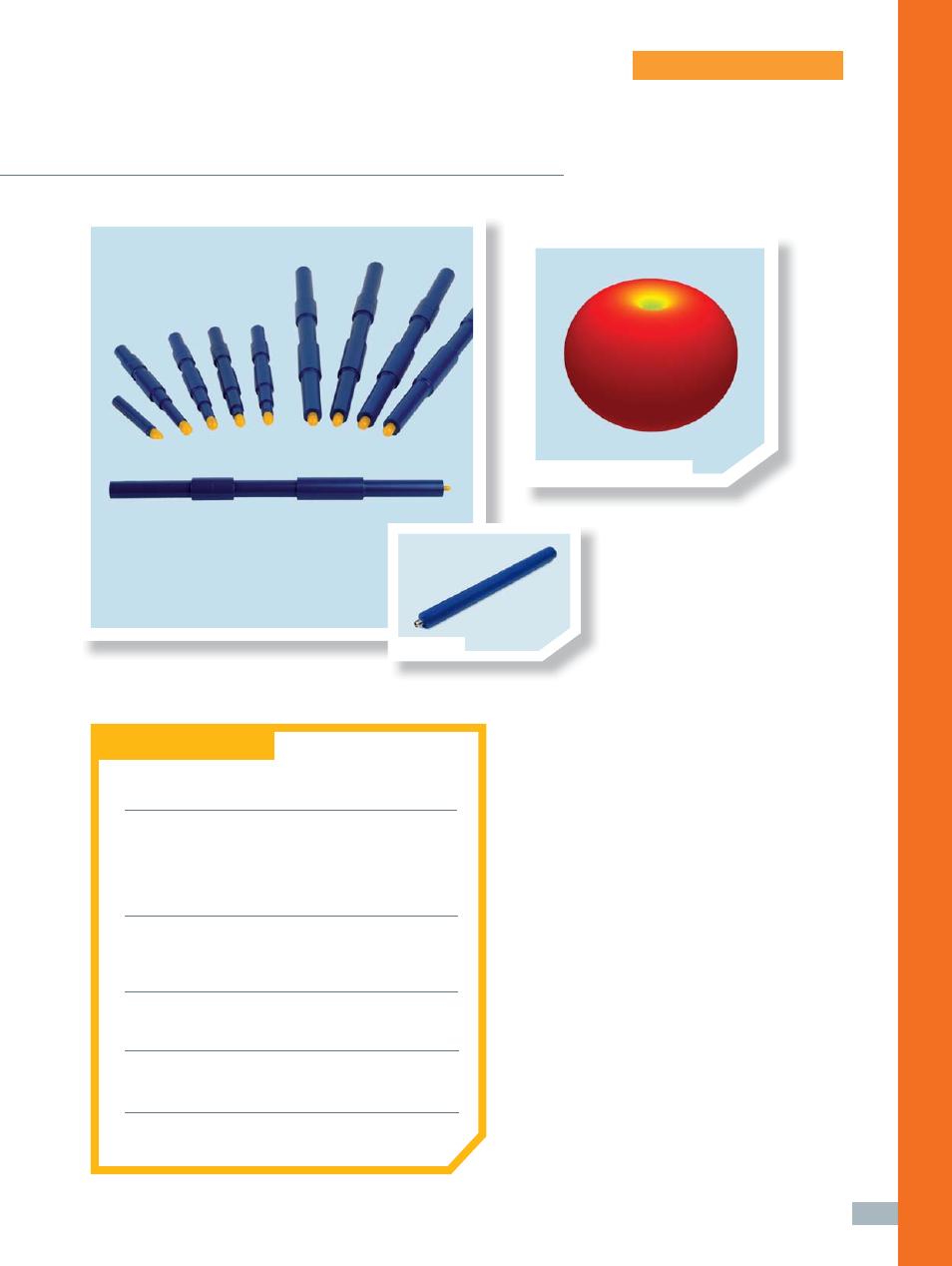

Typical 3D radiation pattern
REFERENCE ANTENNAS
SD 5650-A
