Mechanical characteristics
Part Number UWB 050-A UWB 200-A UWB 300-A
Dimensions
Length (A) 220 mm 65 mm 47 mm
Diameter (B) 265 mm 45 mm 47 mm
Weight 1.7 Kg < 150 g < 100 g
Color of the radome White White White
Radome Polycarbonate/ Polycarbonate/ Polycarbonate/
UV protected UV protected UV protected
Connector N Female SMA Female SMA Female
Ingress protection IP 67 IP 67 IP 67
Operating temperature -40°C - +75°C -40°C to +55°C -40°C to +55°C

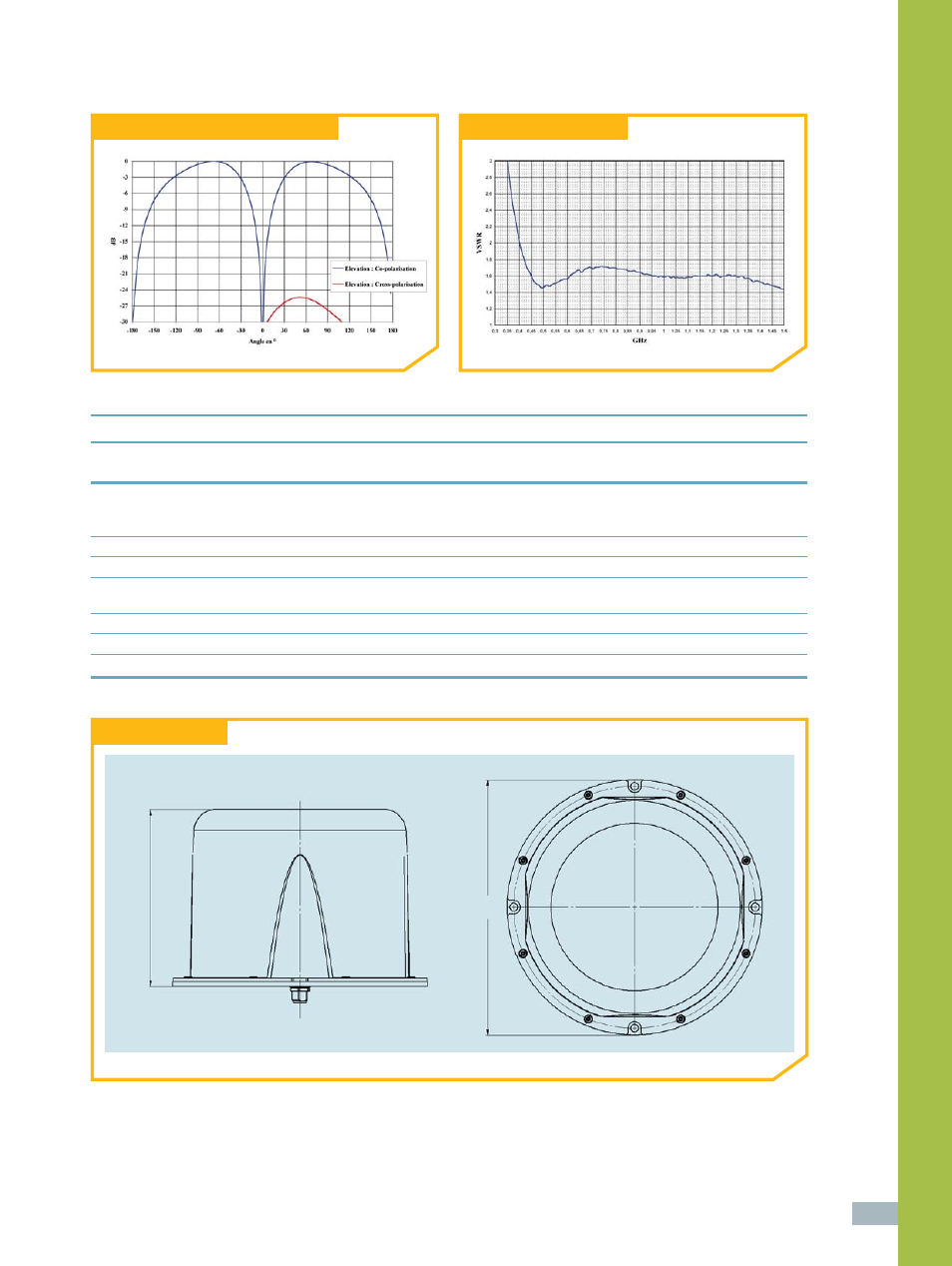

UWB 050-A Typical radiation pattern cuts UWB 050-A Typical VSWR
Mechanical drawing
A
Ø B
