ORBIT FR Omni-directional antennas - Manual (Page 3)

68
➊ TECHNICAL PERFORMANCE
• Radiate power uniformly in horizontal plane
• Directive pattern shape in vertical plane
• Wide bandwidth
• High power up to 100 W
➋ DESIGN
• Easy to install inside a vehicle
• Nato base
• Resists harsh environmental conditions
> Main use:
• Jamming antenna for radio
communication frequencies
> Delivered documents:
• Conformity certifi cate (measured VSWR)
• Antenna manual
> Related standard:
• MIL-STD-810-E
> Related services:
• Maintenance and customization
PROFESSIONAL APPLICATION

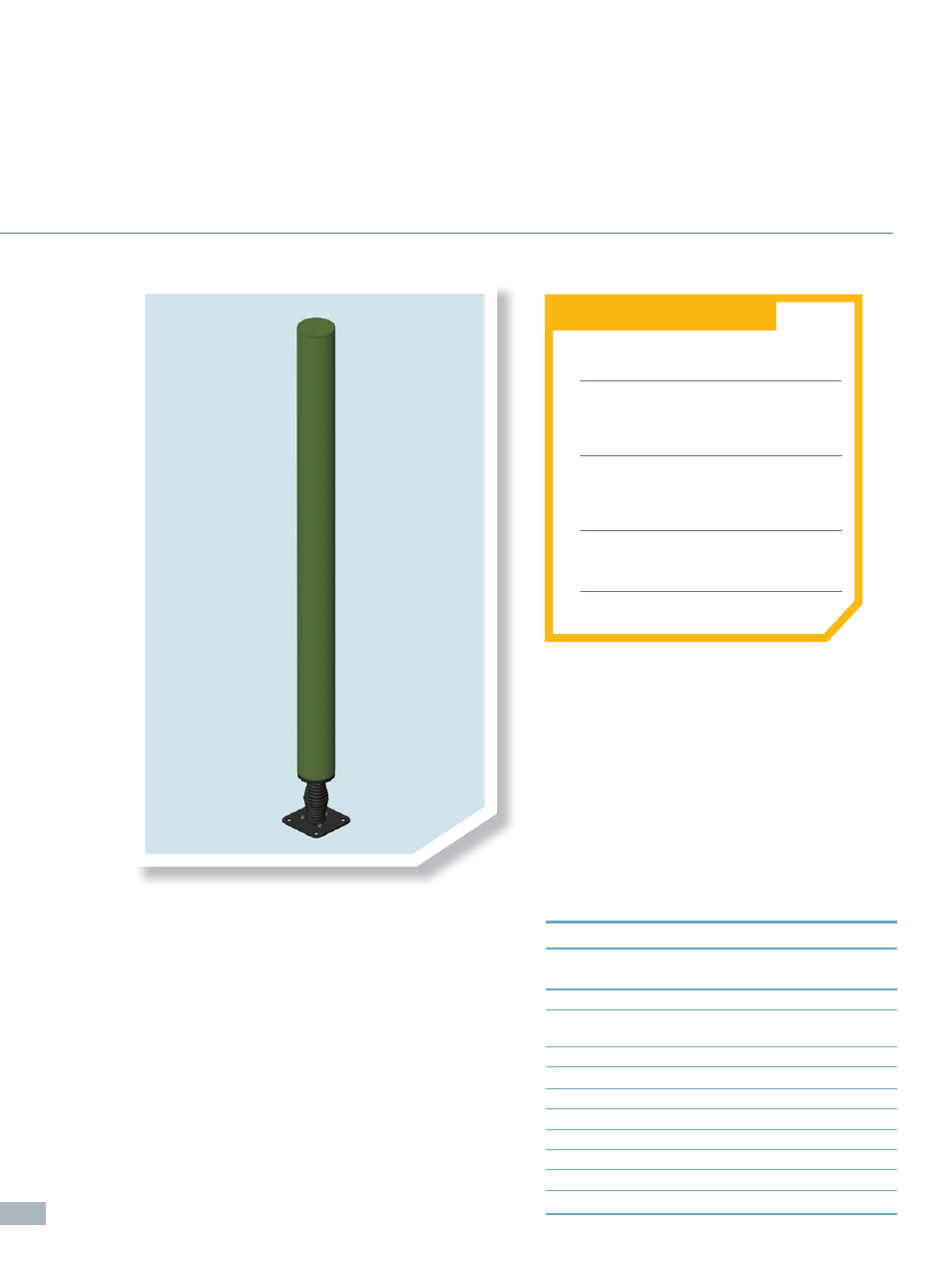

Omni-directional High Power Antennas
For Embedded Applications
>
Electrical characteristics
Part Number CD 040-A
Frequency range 486 – 807 MHz
Gain ≥ 2 dBi at 486 MHz
≥ 5.5 dBi (Freq > 550 MHz)
VSWR 2.0:1
CW Power 100 W
DC ground Yes
Type Colinear Dipole
Impedance 50 Ohms
Polarization Linear Vertical
Radiation Pattern 360° (Ripple +/- 1.5 dB)
Cross-Polarization < 15 dB
