ORBIT FR Compact Range feed horns - Manual (Page 4)

53
>
Measur
ement antennas

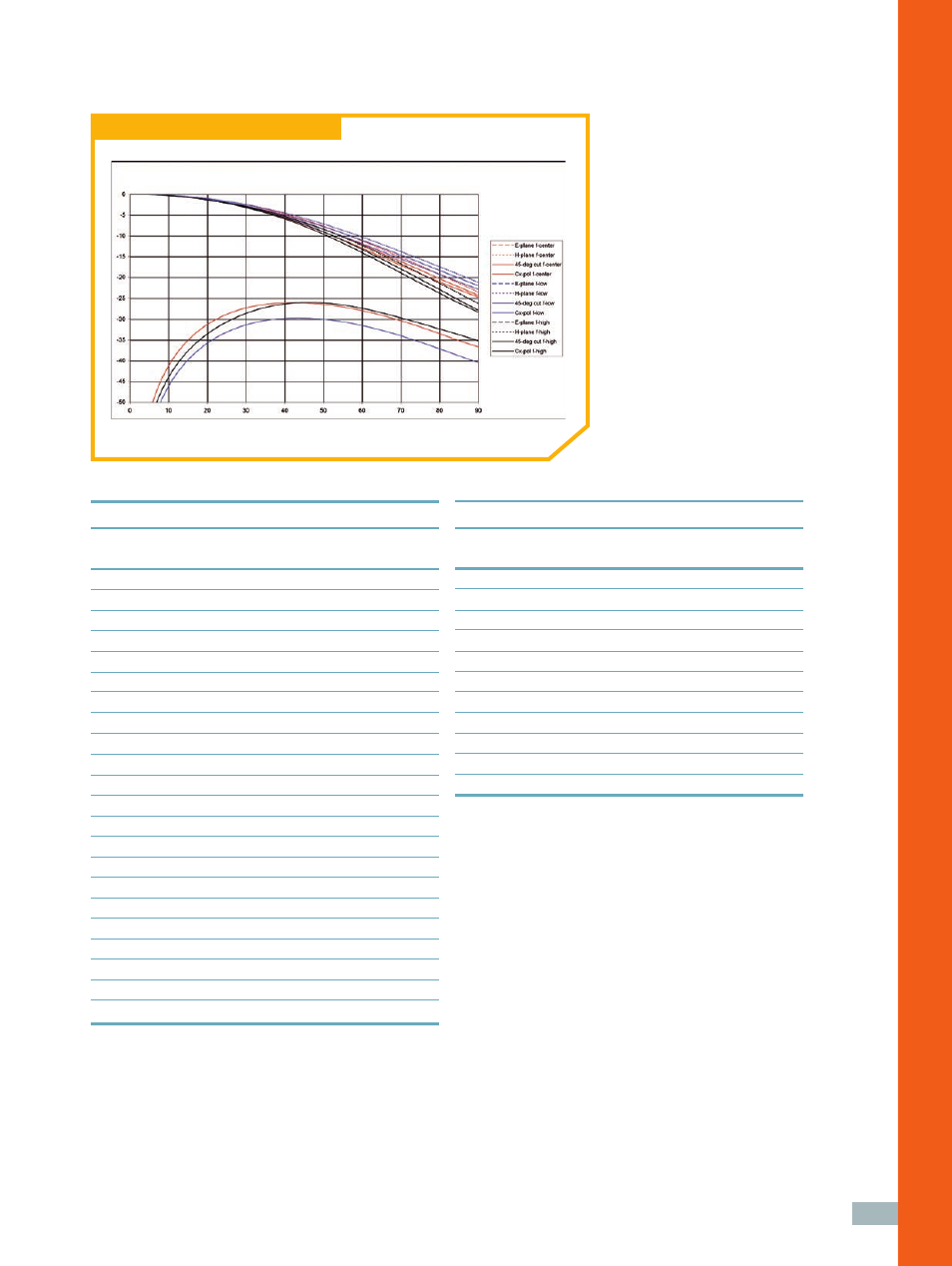

Low gain feed horn aperture performance
Mechanical characteristics
Part number Aperture diameter Connector
AL-2310-1.70-SL 359 mm SMA
AL-2310-2.60-SL 236 mm SMA
AL-2310-3.95-SL 157 mm N
AL-2310-5.85-SL 110 mm N
AL-2310-8.20-SL 75 mm SMA
AL-2310-12.4-SL 51 mm SMA
AL-2310-18.0-SL 35 mm K
AL-2310-26.5-SL 23 mm K
AL-2310-33.0-SL 19 mm 2.4
AL-2310-50.0-SL 12 mm WR 15
AL-2310-75.0-SL 8 mm WR 10
Mechanical characteristics*
Part number Aperture diameter Connector
AL 2309-0.75 SL 877 mm N
AL 2309-1.12 SL 586 mm SMA
AL 2309-1.70 SL 373 mm SMA
AL 2309-2.00 SL 328 mm SMA
AL 2309-2.60 SL 246 mm SMA
AL 2309-3.00 SL 219 mm SMA
AL 2309-3.95 SL 168 mm SMA
AL 2309-4.50 SL 147 mm SMA
AL 2309-5.85 SL 117 mm SMA
AL 2309-6.70 SL 99 mm SMA
AL 2309-8.20 SL 80 mm SMA
AL 2309-10.0 SL 66 mm SMA
AL 2309-12.4 SL 54 mm SMA
AL 2309-15.0 SL 45 mm SMA
AL 2309-18.0 SL 37 mm K
AL 2309-22.0 SL 30 mm K
AL 2309-26.5 SL 25 mm K
AL 2309-33.0 SL 20 mm 2.4
AL 2309-40.0 SL 15 mm WR 19
AL 2309-50.0 SL 13 mm WR 15
AL 2309-60.0 SL 10 mm WR 12
AL 2309-75.0 SL 9 mm WR 10
* Typical characteristics for medium gain feed horns
