ORBIT FR Azimuth Positioners: Medium Duty User Manual
Page 4
40
supplied accessories
>
CD-ROM Documentation Set:
User Manual (Installation, Setup, Operation & Maintenance)
technical notes
ORDERING INFORMATION
•

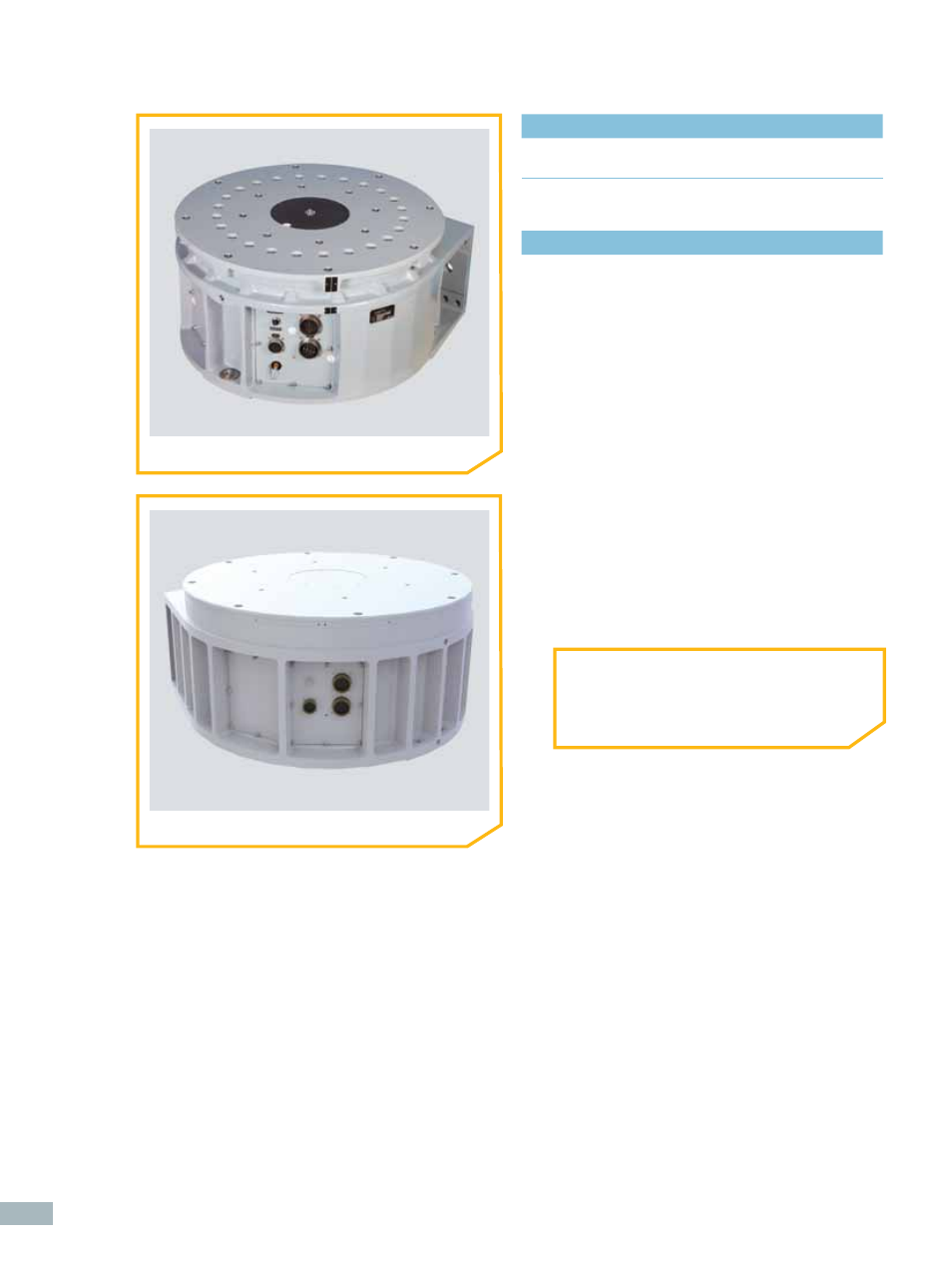

Refer to Legacy Series Azimuth Positioners –
Medium Duty Specifi cation Table
❚
AL-1260-1
❚
AL-1760-1
1
All accuracy data is based on no-load conditions.
Contact ORBIT/FR for accuracy under load conditions.
2
All models are equipped with adjustable limit switches
capable of approx 20° to 900° total travel. When rotary
joint and slip ring options are specifi ed, limit switches
remain but are electrically disabled.
Single-axis positioners are factory-set at:
•
Azimuth Axis: 400° (± 200°)
3
Slip Ring & Rotary Joint Option Notes:
•
Certain slip ring options may require an extension
cap that protrudes above the turntable surface.
Positioner height may increase. Consult ORBIT/FR.
•
Slip ring contacts for customer use are provided
with dedicated connectors
•
When rotary joint and/or slip ring options are
specifi ed, no central thru-hole is available to
the user. Option TH002 and TH003 are available
in lieu of rotary joint and/or slip ring options.
4
All models are delivered standard with synchro.
