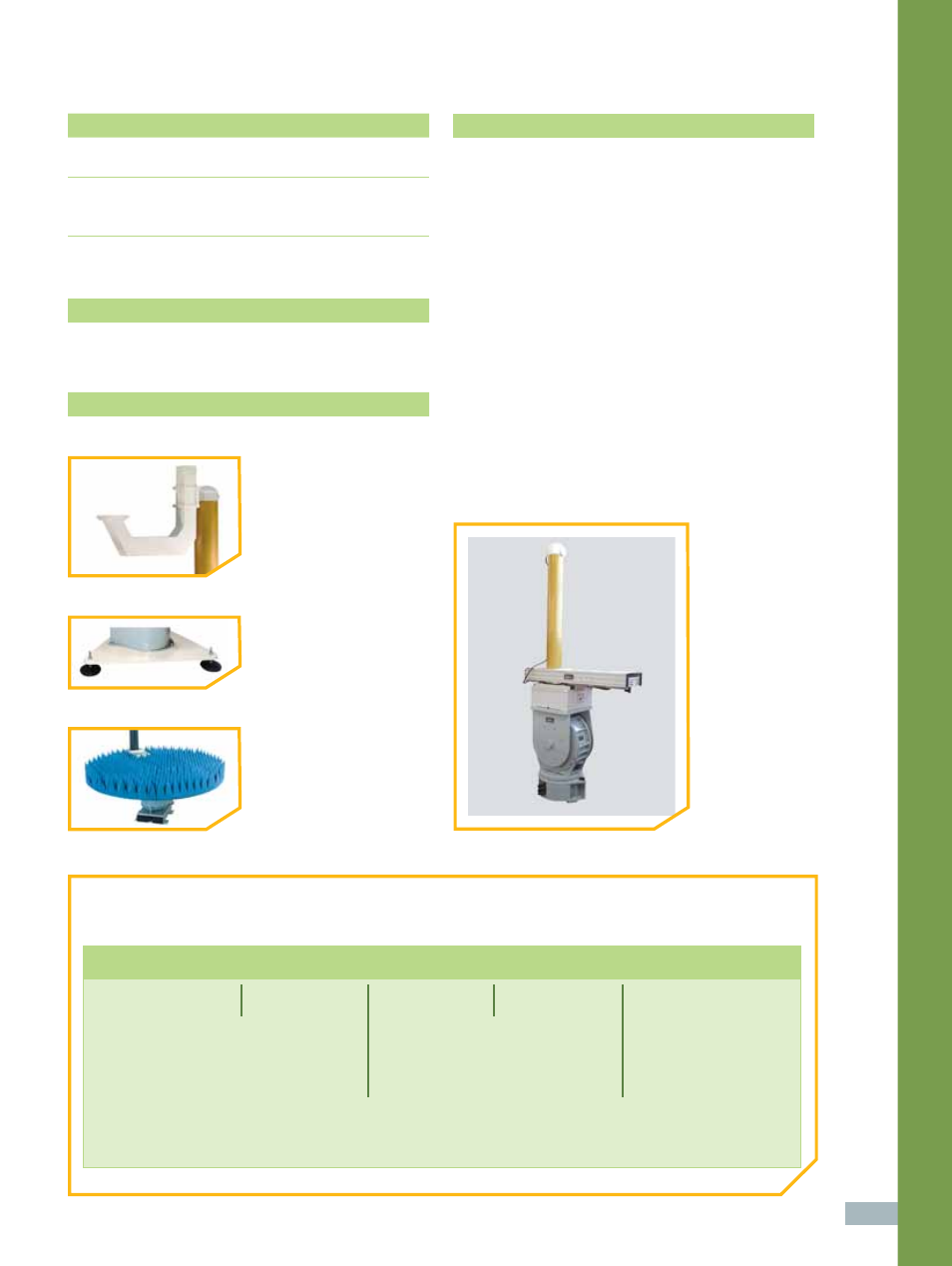

ORBIT FR Dielectric Belt Driven Model Towers: DBDR Series - Manual (Page 2)

129
>
Model T
owers
supplied accessories
> CD-ROM Documentation Set:
„ User Manual (Installation, Setup, Operation & Maintenance)
> Cables:
„ Cable Carrier
„ Interconnect Cable for Connection to Lower Positioner
optional accessories
„ Lower Positioner
options
† Option 001
† Option 002
† Option 003
technical notes
„ 1 Model tower height is defi ned as the distance from
the base of the offset slide to the center of the roll axis.
„ 2 The lower positioner may require electrical wiring and/
or an RF path to support the model tower. Options are
available for the lower positioner, including EX002, SR,
and RJ. Lower positioner purchased separately.
„ 3 All accuracy data is based on no-load conditions.
Contact ORBIT/FR for accuracy under load conditions.
„ 4 Roll axis is equipped with adjustable limit switches
capable of approx 20° to 900° total travel. When rotary
joint options are specifi ed, limit switches remain but
are electrically disabled. Roll axis is factory-set at 400°
(± 200°).
„ 5 Rotary joint options may alter the original physical
profi le of the roll axis stage. Consult ORBIT/FR.
„ 6 Verify model tower’s maximum swing radius
(G - clearance to absorber) when specifying this
product for use inside an anechoic chamber.
„ 7 Dimensions may vary depending on fi nal confi guration.
• Foam Bracket w/ Interface
Plate, Up to 4.4 lbs (2 kg)
• Portable Triangular Base Plate
(Increases Overall Height)
• Absorber Platter
ORDERING INFORMATION
• Build your confi guration using the ordering example below.
DBDR MD 21 60
Basic Model
Tower Series
Linear Offset
Slide Travel (in)
Capacity:
MD - Medium
HD - Heavy
Total Roll-to-Base
Height (in or mm)
- - -
