ORBIT FR Performance Series AZ, EL Positioners: Heavy Duty - Manual (Page 4)

135
mounting thread options
These options are available for applications requiring
localized confi gurations.
• MM002 - Metric Threads in Mounting Hole Interface
> M6-1 – Replaces 1/4–20 UNC
> M10-1.5 – Replaces 3/8-16 UNC
> M12-1.75 – Replaces ½-11 UNC
> M16-2 – Replaces 5/8-11 UNC
> M20-2.5 – Replaces ¾-10UNC
*Thread depth is 1.25 to 1.5 times larger than thread diameter.
• MM003 – Third Party Mounting Hole Interface
Replication - Consult your local sales representative
with specifi c bolt circle and thread requirements.
interlock protection circuit options
Interlock circuits can be special-ordered for applications
in which the design calls for preventing the operation of
a specifi c axis while another axis is parked in a specifi c
travel region. Applications include confi gurations utilizing
model towers in which the interlocks are designed to
prevent the model tower from colliding with a surface.
Other applications include overload protection and sa-
fety work zones. • IC001 – Interlock Circuit, Medium Duty
• IC002 – Interlock Circuit, Heavy Duty
Base-risers can be special-ordered for applications in
which a positioner must be located at a specifi c height
above its main mounting surface. They are typically
the same diameter as the positioner’s base and are
constructed of the same material, steel or aluminum, as
the positioner itself. Some base-risers can be designed
for specifi c applications by including features such as
lifting hooks, fork lift provisions, thru-holes, hatches,
and ladders. Base-risers are typically constructed in a
way that does not limit the positioner’s total capacity
and overall specifi cations. Important parameters include
overall capacity, diameter, and height. Consult your local
sales representative when confi guring this option.
• BR001 – Base-Riser, Medium Duty
• BR002 – Base-Riser, Heavy Duty

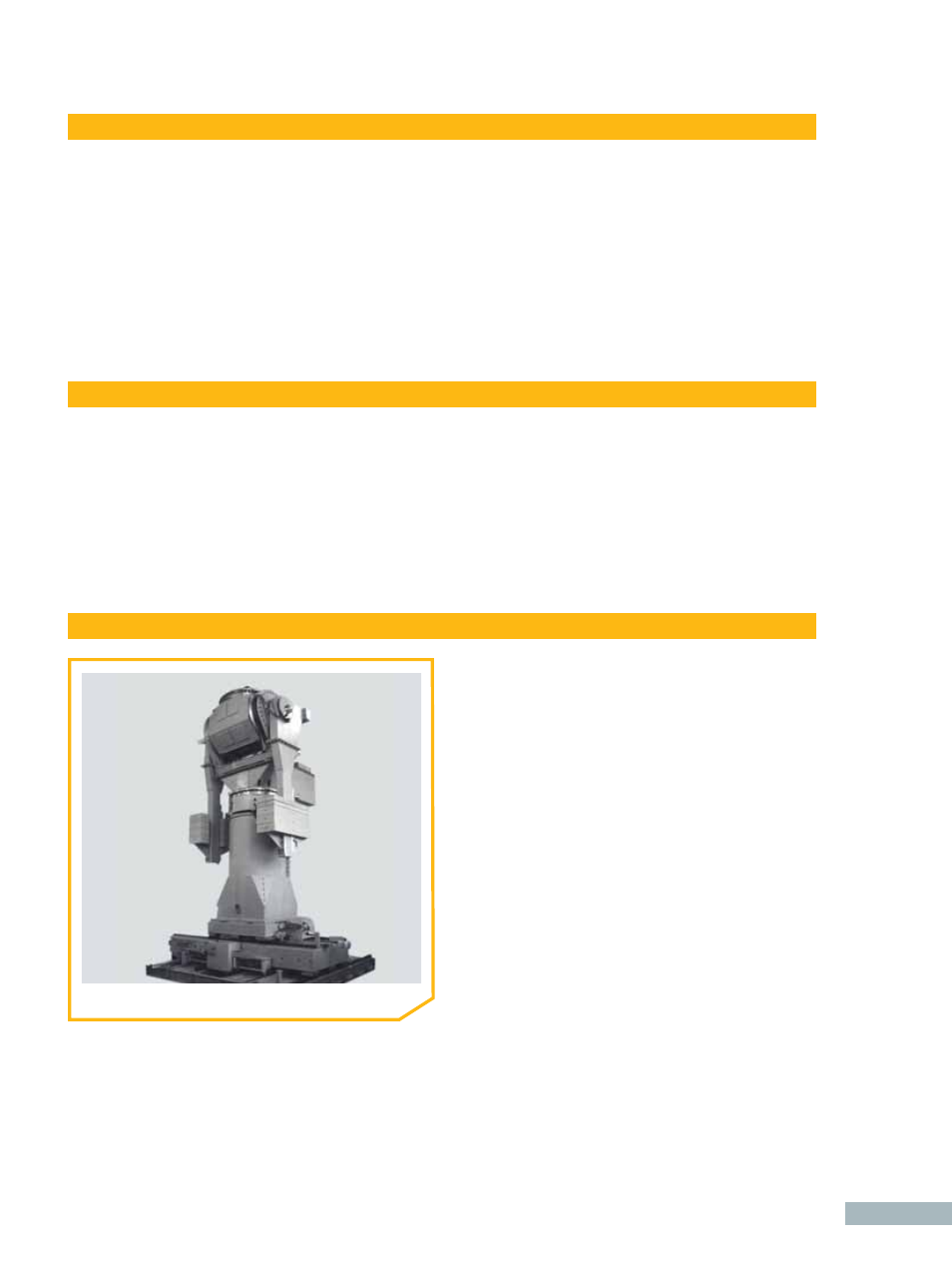

base-riser options
BR002
